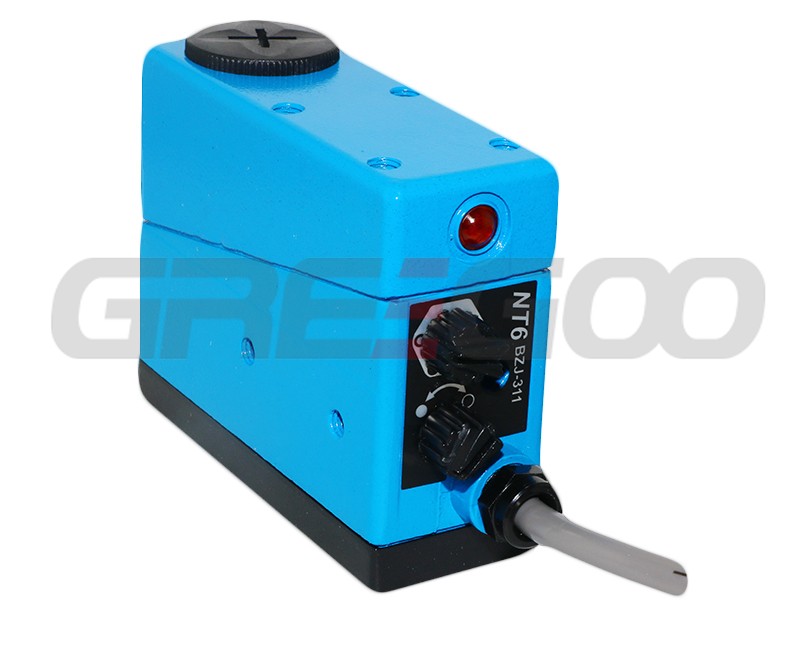

BZJ-311 Color Mark Sensor
| BZJ-311 | Color mark sensor |
| Chromatogram of light | R: Red,G: Green, B: Blue, W: White |
| Logic classification | P: PNP, N: NPN,A: Analog Output |
| Model | BZJ-311RP | BZJ-311RN | BZJ-311RA |
| BZJ-311GP | BZJ-311GN | BZJ-311GA | |
| BZJ-311BP | BZJ-311BN | BZJ-311BA | |
| BZJ-311WP | BZJ-311WN | BZJ-311WA | |
| Size | 38*62*100mm | ||
| Supply voltage | 10-30VDC | ||
| Ambient temperature | 0-50°C | ||
| Detecting method | Coaxial reflection | ||
| Sensing distance | 9mm | ||
| Chromatogram of light | Red, Green, Blue, White | ||
| Facula | Circular | ||
| Response time | 50us | ||
| Output current | ＜200mA | ||
| Output type | PNP | NPN | Analog |
| Shell material | Metal | ||
| Cable length | 2m | ||
| Protection | RP-power protection, load short-circuit protection | ||
| Weight | 0.5kg | ||
