AC high voltage vacuum contactor with fuse composite apparatus

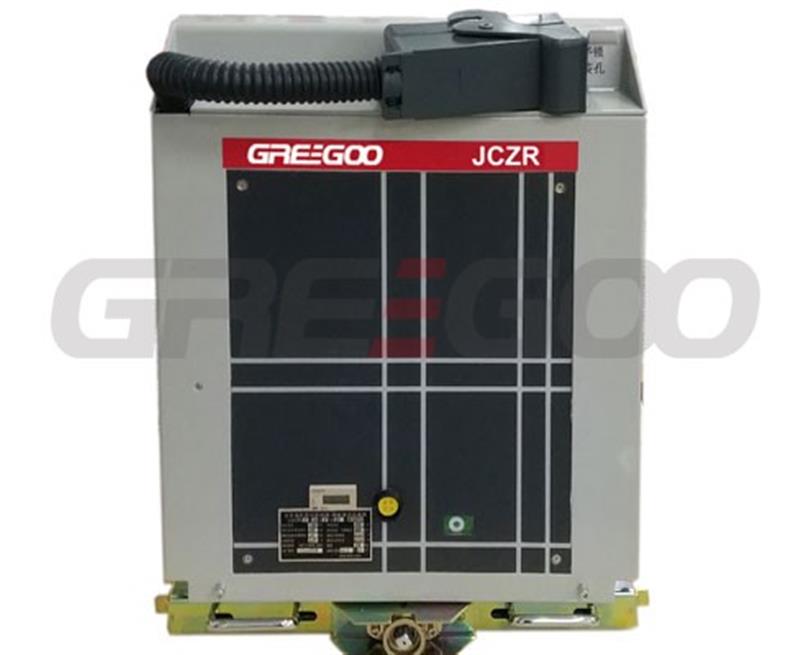

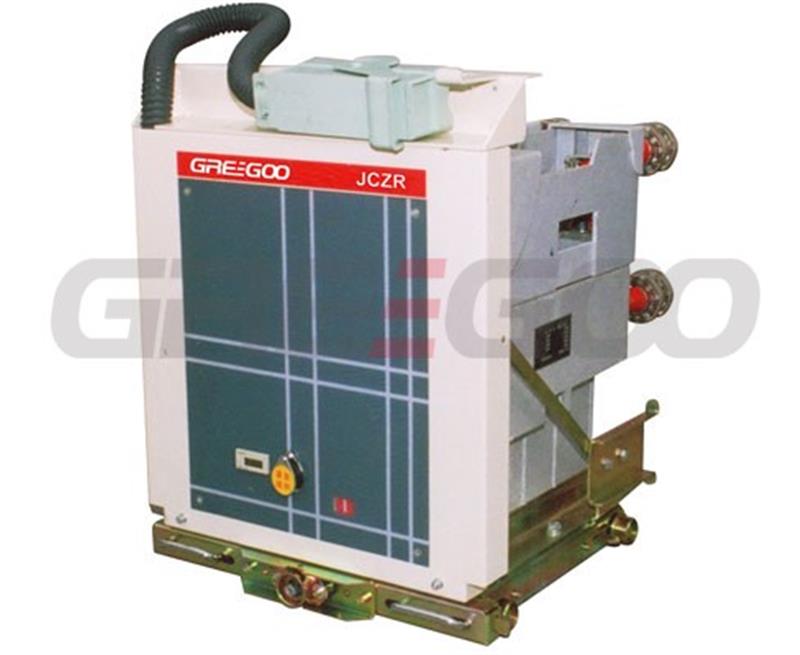

JCZ33 series AC high voltage vacuum contactor is suitable for the AC power system, with rated voltage 12kV, rated frequency 50/60 Hz and rated current 50A-630A, of which need amount of opening and breaking operation cycle and as the ideal electric apparatus for frequent operation. JCZR2series AC vacuum contactor-fuse composite apparatus based on JCZ33 series AC high voltage vacuum contactor add the high voltage current-limiting as short circuit protection,expand the usable fields and make the design of main circuit easier.
JCZ33 series AC high voltage vacuum contactor mainly consists of vacuum tube, operating mechanism, control electro-magnet, power model and other auxiliary components, housed in the space from the top frame poured completely by resin to the low frame made by steel. The control electro-magnet complete the closing action of the contactor by way of operating mechanism, while the opening action completed by the opening spring. The composite structure ensure it's long electric and mechanical life without frequent maintenance.
Model selection:
| JCZ33-12JY/D400-4T |
| JCZ33 - AC high voltage vacuum contactor |
| 12 - rated voltage (kV) |
| J - holding type D:electric holing;J:mechanical holding |
| Y - mounting method Y:removable type; blank:fixed type |
| D - electromagnetic operating mechanism |
| 400 - rated current (A) |
| 4 - limit breaking current (kA) |
| T - ceramic enclosure of vacuum tube |
|
JCZR2-12JY/D200-40T-T |
| JCZR2 - AC high voltage vacuum contactor with fuse composite apparatus |
| 12 - rated voltage (kV) |
| J - holding type D:electric holing;J:mechanical holding |
| Y - mounting method Y:removable type; blank:fixed type |
| D - electromagnetic operating mechanism |
| 200 - rated current (A) |
| 40 - short circuit breaking capacity (kA) |
| T - ceramic enclosure of vacuum tube |
| T - application T:general protection; T:transformer protection; M: motor protection; C: capacitor protection |
Technial specification
|
JCZR2 VACUUM CONTACTOR WITH FUSE COMONSITE APPARATUS |
Unit |
Value |
||||||
|
Main circuit |
Rated working voltage (Ue) |
kV |
7.2 |
12 |
||||
|
Rated working current (Ie) (due to fuse) |
A |
≤315 |
≤200 |
|||||
|
Rated frequency (fr) |
Hz |
50~60 |
||||||
|
Rated making capacity |
A |
10Ie |
||||||
|
Rated breaking capacity |
A |
8Ie |
||||||
|
Rated short time withstand current |
kA |
6.3 |
||||||
|
Rated peak withstand current |
kA |
40 |
||||||
|
Rated short circuit duration |
s |
4 |
||||||
|
Rated anticipated short circuit breaking current (due to fuse) |
kA |
≤40 |
||||||
|
Rated anticipated short circuit making current |
kA |
100 |
||||||
|
Take-over current |
A |
3150 |
||||||
|
Power frequency withstand voltage |
Between phases, phase to earth |
kV |
32 |
42 |
||||
|
Vacuum breaks |
kV |
32 |
42 |
|||||
|
Lightening impulse withstand voltage |
kV |
60 |
75 |
|||||
|
Control circuit |
Rated voltage1 (Us) |
V |
AC or DC. 110/220 |
|||||
|
Rated power (Ps) |
Electric holding |
VA |
≤1000/100 (absorbing/holding) |
|||||
|
Mechanical holding |
VA |
≤900/350 (closing/opening) |
||||||
|
Auxiliary circuit |
Form |
|
6a 6b |
|||||
|
Rated value |
|
AC200V/5A |
||||||
|
Control circuit, auxiliary circuit to earth power frequency withstand voltage |
kV |
2 |
||||||
|
Rated operating frequency |
Long-term or mechanical holding type |
time/h |
300 |
|||||
|
Short-term |
time/h |
600 |
||||||
|
Mechanical endurance |
10000 times |
30 |
||||||
|
Electrical endurance |
10000 times |
10(AC-3) |
||||||
|
Mechanical characteristics |
Closing time |
ms |
≤150 |
|||||
|
Original opening time |
ms |
≤150(electric holding) ≤60(mechanical holding) |
||||||
|
3-phase synchronism |
ms |
≤3 |
||||||
|
Closing tripping |
ms |
≤6 |
||||||
|
Net weight
|
kg
|
75
|
||||||
|
Remark: 1.rated control voltage can be made according to customer’s requirements. |
||||||||
| JCZ33 7.2/12KV HIGH VOLTAGE VACUUM CONTACTORS | Unit | Value | ||||||
| Main circuit | Rated working voltage (Ue) | kV | 7.2 | 12 | ||||
| Rated working current (Ie) | A | 400 | 400 | |||||
| Rated frequency (fr) | Hz | 50~60 | ||||||
| Rated making capacity | A | 10Ie | ||||||
| Rated breaking capacity | A | 8Ie | ||||||
| Rated short time withstand current | kA | 6.3 | ||||||
| Rated peak withstand current | kA | 16 | ||||||
| Rated short circuit duration | s | 4 | ||||||
| Power frequency withstand voltage | Between phases, phase to earth | kV | 32 | 42 | ||||
| Vacuum breaks | kV | 32 | 42 | |||||
| Lightening impulse withstand voltage | kV | 60 | 75 | |||||
| Control circuit | Rated voltage1 (Us) | V | AC or DC. 110/220 | |||||
| Rated power (Ps) | Electric holding | VA | ≤1000/100 (absorbing/holding) | |||||
| Mechanical holding | VA | ≤900/350 (closing/opening) | ||||||
| Auxiliary circuit | Form | 6a 6b | ||||||
| Rated value | AC200V/5A | |||||||
| Control circuit, auxiliary circuit to earth power frequency withstand voltage | kV | 2 | ||||||
| Rated operating frequency | Long-term or mechanical holding type | time/h | 300 | |||||
| Short-term | time/h | 600 | ||||||
| Mechanical endurance | 10000 times | 30 | ||||||
| Electrical endurance | 10000 times | 10(AC-3) | ||||||
| Mechanical characteristics | Closing time | ms | ≤150 | |||||
| Original opening time | ms | ≤150(electric holding) | ||||||
| ≤60(mechanical holding) | ||||||||
| 3-phase synchronism | ms | ≤3 | ||||||
| Closing tripping | ms | ≤6 | ||||||
| Remark: 1.rated control voltage can be made according to customer’s requirements. | ||||||||
Recommend model:
| Type | Matched switchboard | Pole distance（mm) |
| JCZ33-D(J)Y/D400-6.3T□ | 494*636*609（for 650mm wide panel） | 205 |
| JCZ33-7.2/12KV (B) | 644*624*609（for 800mm wide panel） | 205 |
| JCZ33-7.2/12KV (C) | 494*624*609（for 650mm wide panel） | 275 |
| JCZ33-7.2/12KV (D) | 644*624*609（for 800mm wide panel） | 275 |
| JCZR2-7.2/12KV | 494*636*609（for 650mm wide panel） | 205 |
| JCZR2-7.2/12KV (A) | 494*535*609（fixed type for 650mm wide panel） | 205 |
| JCZR2-7.2/12KV (B) | 644*624*609（for 800mm wide panel） | 205 |
| JCZR2-7.2/12KV (C) | 494*624*609（for 650mm wide panel） | 275 |
| JCZR2-7.2/12KV (D) | 644*624*609（for 800mm wide panel） | 275 |
Dimensions:
GREEGOO JCZR2JCZ33 " src="../../kindeditor/attached/image/20210324/20210324102613_4340.jpg" alt="GREEGOO JCZR2JCZ33 " width="100%" />
| MODEL | W | W1 | W2 | W3 | W4 | W5 | W6 | W7 | H | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | D | D1 | D2 | D3 | D4 | D5 |
| JCZ33/JCZR2 | 494 | 30 | 71 | 15 | 56 | 458 | 502 | 532 | 624 | 164 | 155 | 130 | 205 | 280 | 78 | 80 | 636 | 609 | 437 | 4 | 47.5 | 15 | 200 |
| JCZ33B/JCZR2B | 644 | 30 | 71 | 15 | 56 | 608 | 652 | 685 | 624 | 164 | 155 | 130 | 205 | 280 | 78 | 80 | 636 | 609 | 437 | 4 | 47.5 | 15 | 200 |
| JCZ33C/JCZR2C | 494 | 30 | 71 | 15 | 56 | 458 | 502 | 532 | 624 | 164 | 155 | 130 | 275 | 280 | 78 | 80 | 636 | 609 | 437 | 4 | 47.5 | 15 | 200 |
| JCZ33D/JCZR2D | 644 | 30 | 71 | 15 | 56 | 608 | 652 | 685 | 624 | 164 | 155 | 130 | 275 | 280 | 78 | 80 | 636 | 609 | 437 | 4 | 47.5 | 15 | 200 |
| JCZ33E/JCZR2E | 494 | 30 | 71 | 15 | 56 | 458 | 502 | 532 | 624 | 164 | 155 | 130 | 205 | 264 | 78 | 80 | 636 | 609 | 437 | 4 | 47.5 | 15 | 200 |
GREEGOO" src="../../kindeditor/attached/image/20210324/20210324103307_7786.jpg" alt="JCZR2A GREEGOO" width="100%" />
Need more information?
Contact us to request pricing, availability and customization options.
