Varistor Module 20K 460V 750V 1000V 25K 750V 1000V
Home Products Thyristor Diode ModuleBesting Selling Thyristor Diode ModulesVaristor Module 20K 460V 750V 1000V 25K 750V 1000V

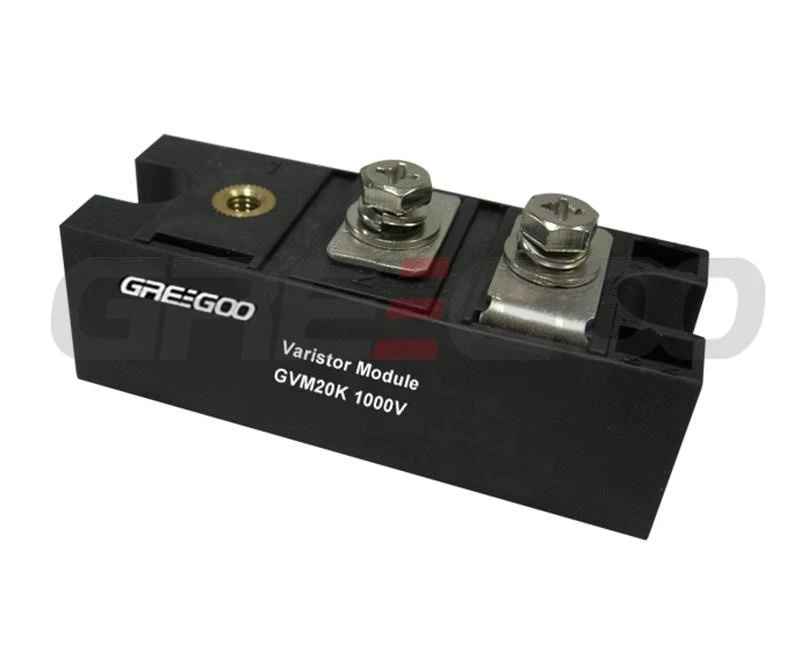

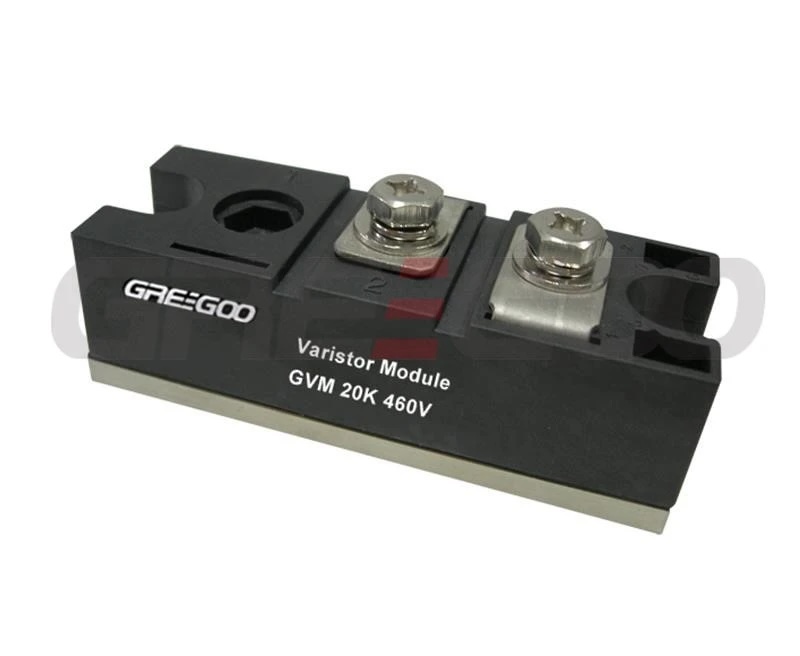

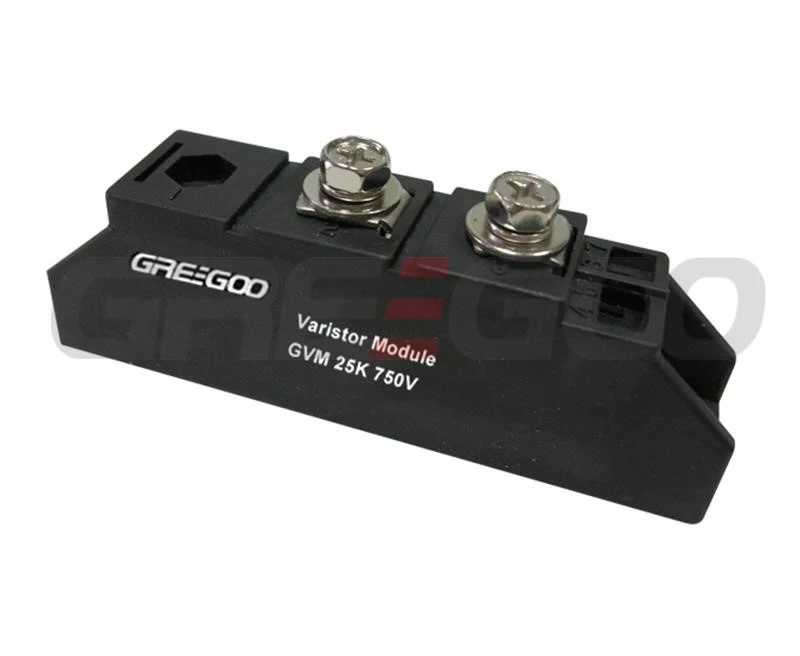

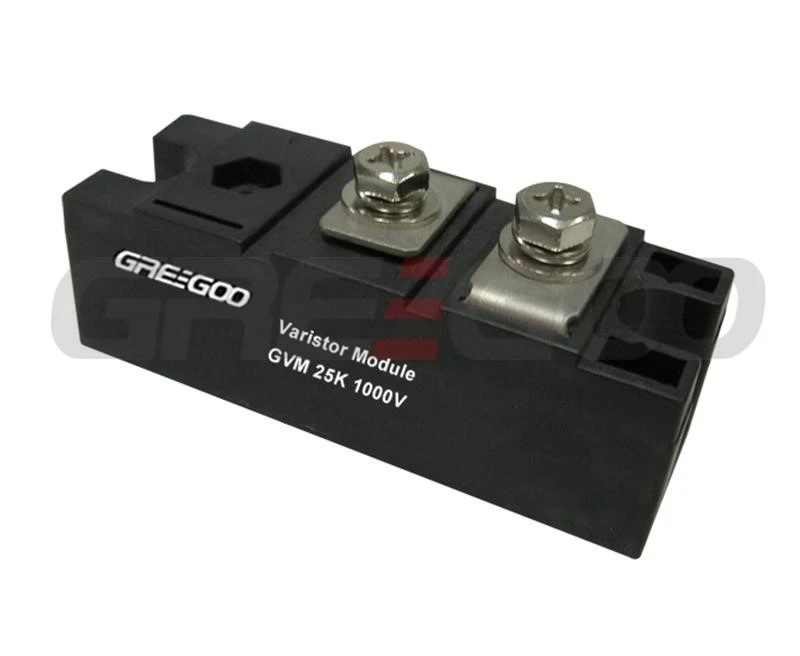

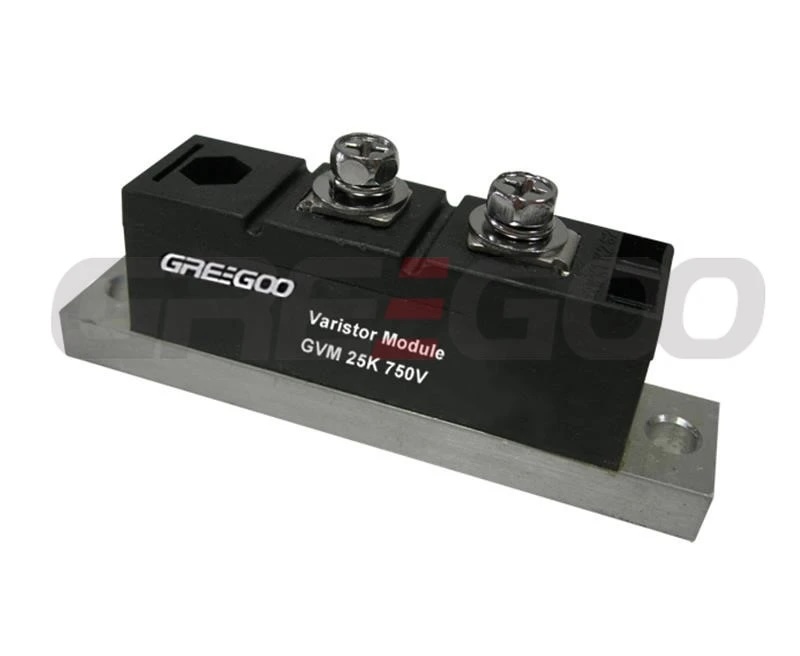

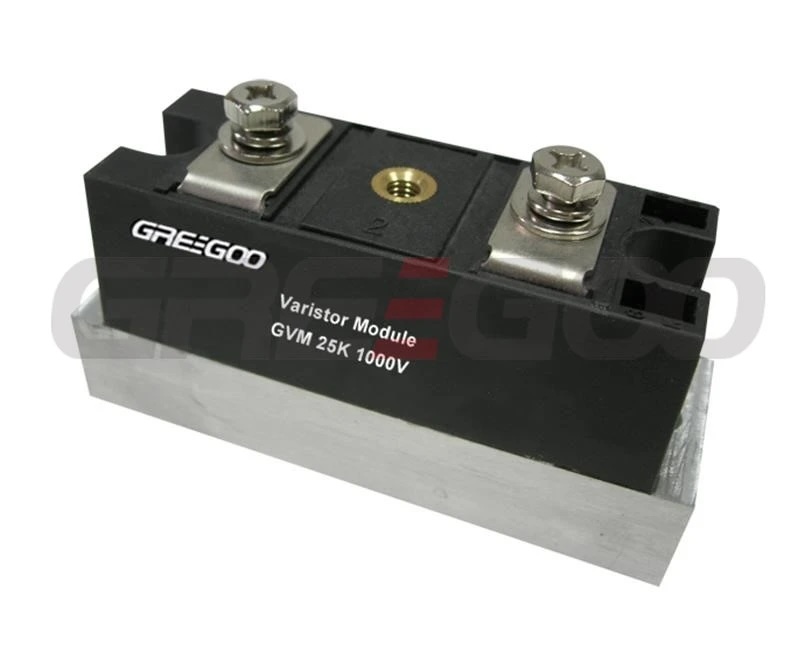

Varistor Module 20K 460V 750V 1000V 25K 750V 1000V
The varistor module utilizes the nonlinear characteristics of the varistor. Under normal voltage, it maintains a high resistance state with minimal impact on the circuit. When overvoltage occurs, its resistance drops rapidly, diverting or absorbing the overvoltage energy to protect other components in the circuit. It features fast response and high energy tolerance, making it widely used in power protection, lightning protection, and surge suppression scenarios.
| Model | Rated Voltage (V) |
Voltage Tolerance (%) |
Leakage Current (mA) |
Current Capacity (KA) |
Residual Voltage Ratio |
Voltage Temperature Coefficient (%/℃) |
Surge Life (times) |
Voltage Ratio (V1mA/ V0.1mA) |
Insulation Withstand Voltage (V) |
Centrifugal Acceleration Resistance (g) |
| GVM 20K 460V | 460 | 10 | 30 | 4 | 1.4~1.7 | 0.1 | 10 | 1.08 | ≥2500 | ≥1500 |
| GVM 20K 750V | 750 | 10 | 30 | 4 | 1.4~1.7 | 0.1 | 10 | 1.08 | ≥2500 | ≥1500 |
| GVM 20K 1000V | 1000 | 10 | 50 | 4 | 1.4~1.7 | 0.1 | 10 | 1.08 | ≥2500 | ≥1000 |

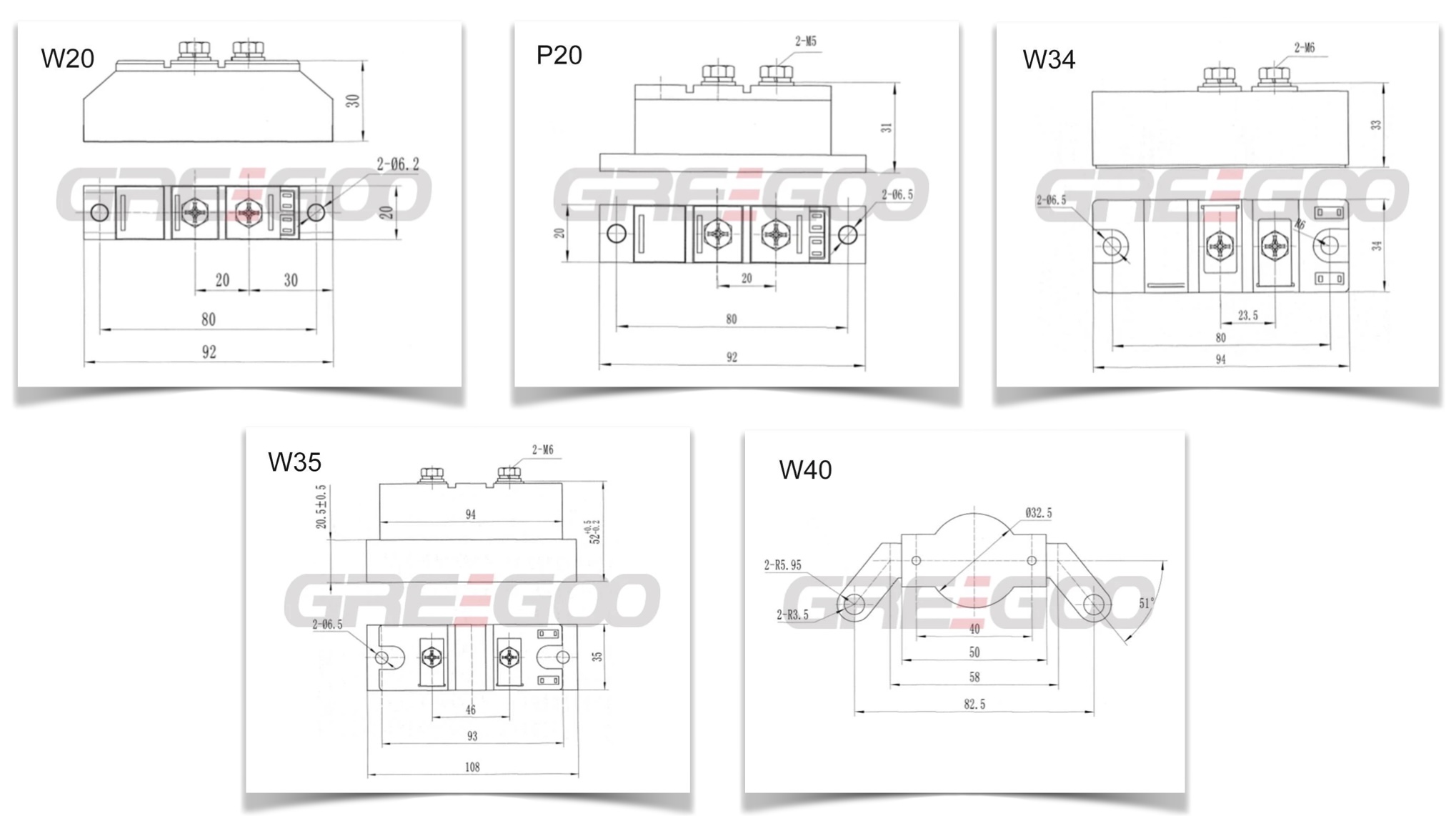

GVM 20K750V W40 | GVM 20K1000V W35 | GVM 25K1000V W35 | GVM 20K460V W34 | GVM 20K750V W34 | GVM 20K1000V W34 | GVM 25K1000V W34 | GVM 20K460V W20 | GVM 20K750V W20 | GVM 20K460V P20 | GVM 20K750V P20
Need more information?
Contact us to request pricing, availability and customization options.
