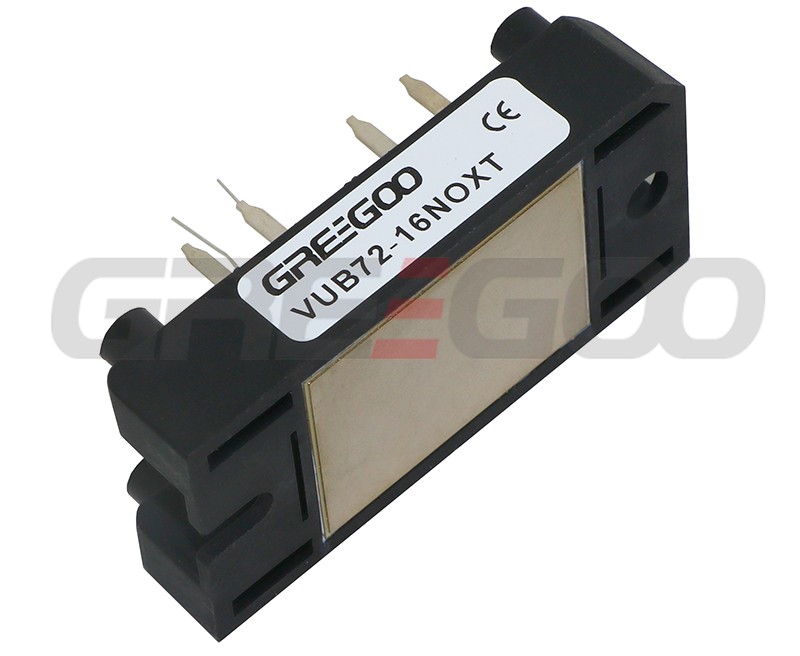

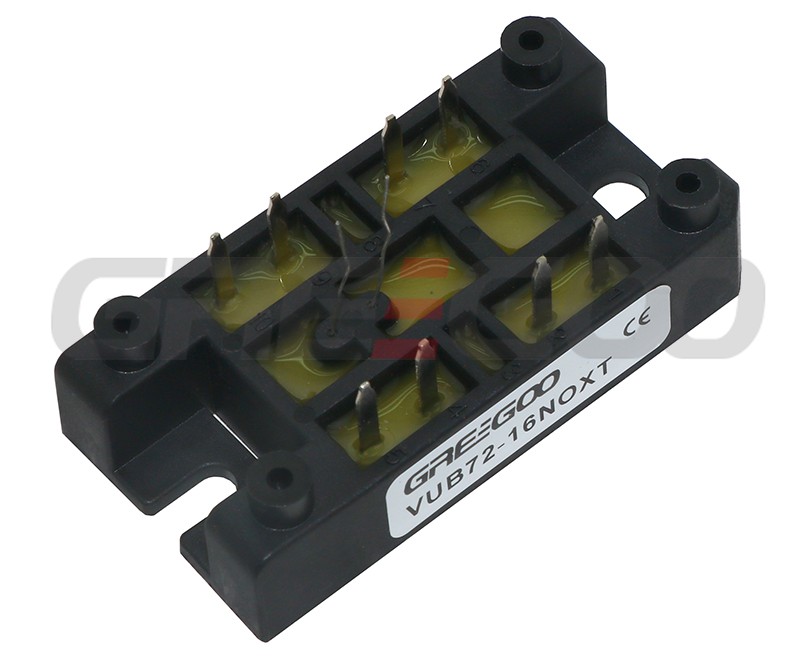

VUB72-16NOXT 3ph Rectifier Bridge + Brake Unit + NTC

Feature
Package with DCB ceramic base plate
Improved temperature and power cycling
Planar passivated chips
Very low forward voltage drop
Very low leakage current
NTC

Application
3~ Rectifier with brake unit for drive inverters

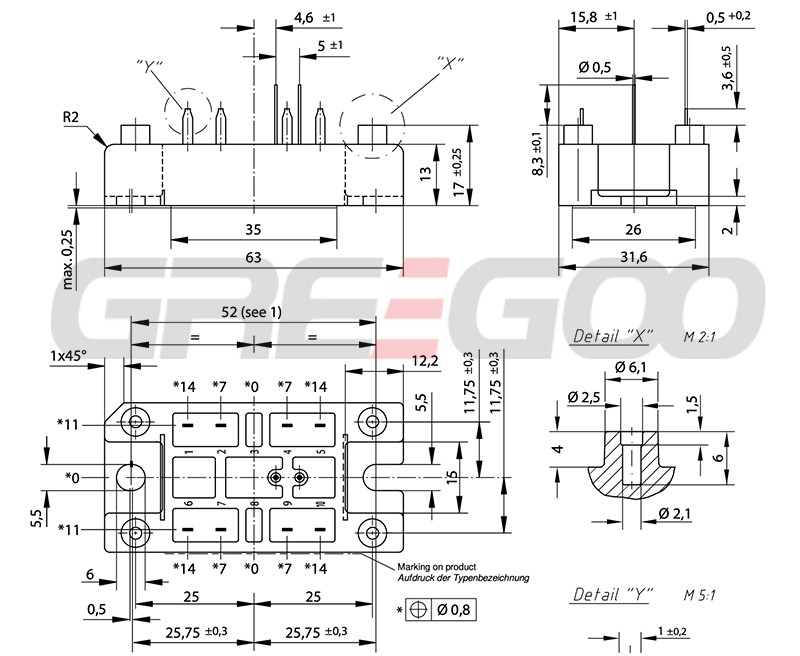

Package V1-A
Isolation voltage up to 3600Vac
Industrial standard package
RoHS compliant
Soldering pins for PCB mounting
Height: 17 mm
Base plate: DCB ceramic
Reduced weight
Advanced power cycling
