3 phase Solid State Relay Assembly

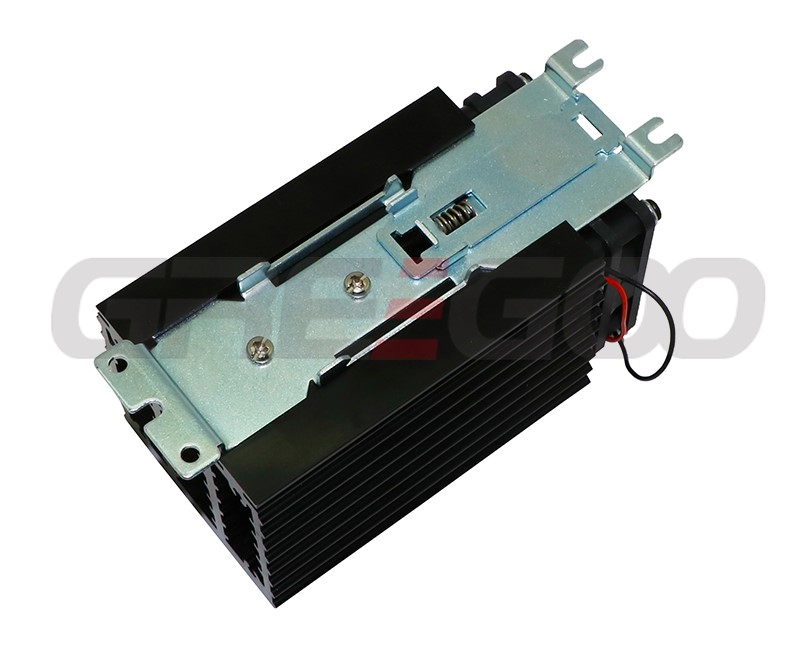

Greegoo SSR assemblies integrate relays with matched heat sinks to provide superior thermal management, preventing premature failure due to overheating. These pre-assembled units enhance reliability by offering optimal, pre-installed thermal interfacing and simplified, DIN-rail mounting and panel mount for simple installation.
3 phase ssr assembly
| Part numbers | SSR rating | SSR model | Heatsink | Dimensions | Cooling fan size | Weight (Kgs) | Note |
| GTC-10F107 | 3PH 10A | GTH1048ZD3 | F-107 | 107*70*68 | / | 1.1 | din rail clamp |

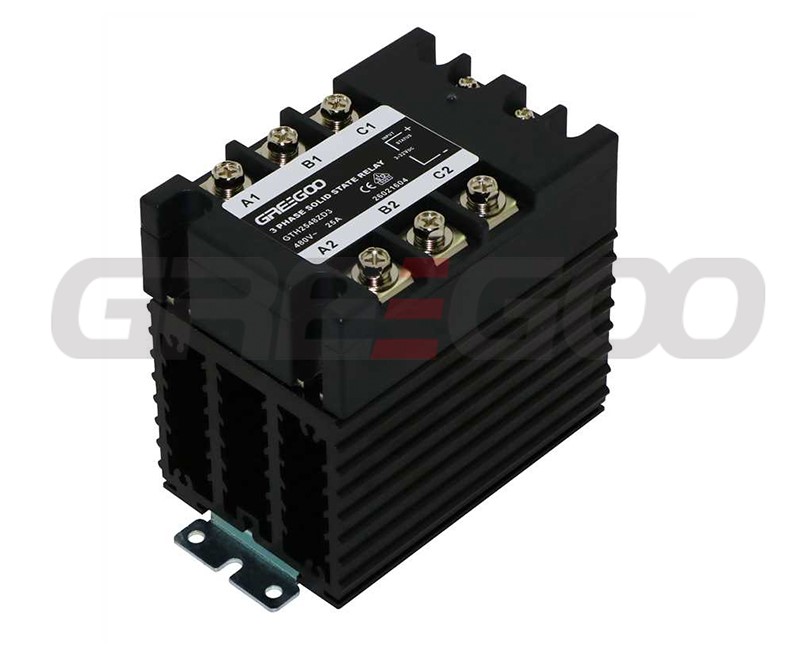

| GTC-25F107 | 3PH 25A | GTH2548ZD3 | F-107 | 107*70*68 | / | 1.1 | din rail clamp |

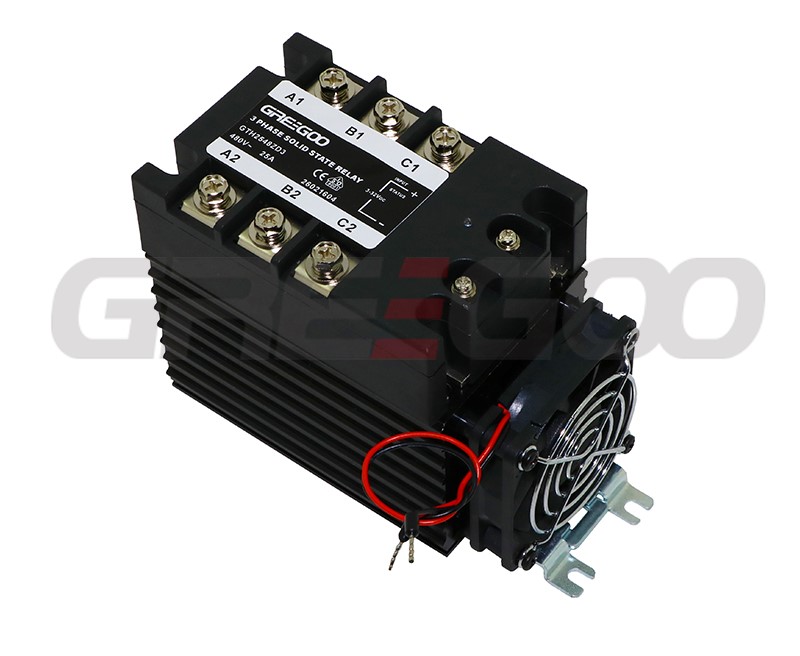

| GTC-25F107S | 3PH 25A | GTH2548ZD3 | F-107 | 107*70*68 | 50x50x15 | 1.2 | with fan & din rail clamp |
| GTC-40F107S | 3PH 40A | GTH4048ZD3 | F-107 | 107*70*68 | 50×50×15 | 1.2 | with fan & din rail clamp |
| GTC-60F110S | 3PH 60A | GTH6048ZD3 | F-110 | 135×85×96 | 92×90×25 | 1.12 | KSD301 thermostat, terminal blocks and assembly |
| GTC-80F130S | 3PH 80A | GTH8048ZD3 | F-130 | 155×85×96 | 92×90×25 | 1.29 | |
| GTC-90F160S | 3PH 90A | GTH9048ZD3 | F-160 | 185×85×96 | 92×90×25 | 1.49 | |
| GTC-100F215S | 3PH 100A | GTH10048ZD3 | F-215 | 240×85×96 | 92×90×25 | 1.99 | |

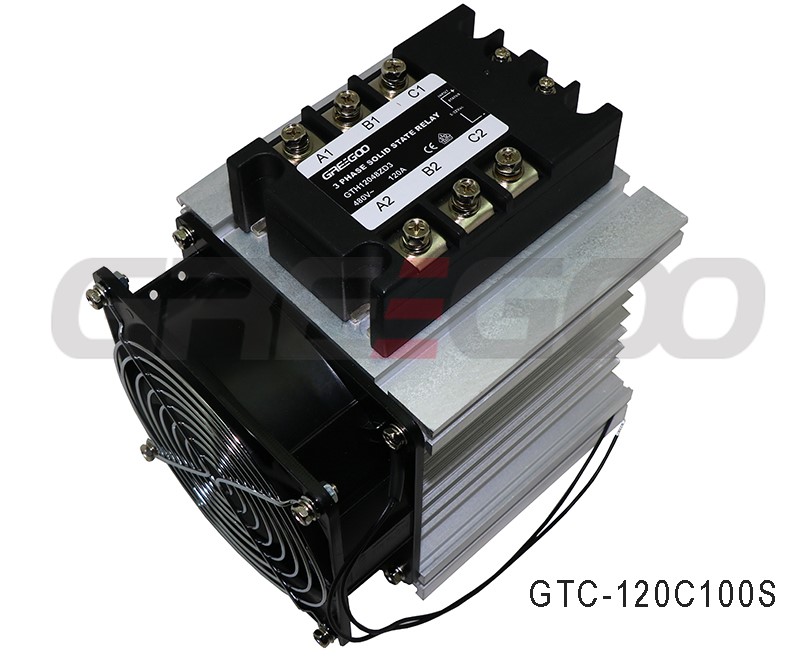

| GTC-120C100S | 3PH 120A | GTH12048ZD3 | C-100 | 138×125×135 | 120×120×38 | 2.48 | |
| GTC-150C130S | 3PH 150A | GTH15048ZD3 | C-130 | 168×125×135 | 120×120×38 | 3.08 | |
| GTC-180C160S | 3PH 180A | GTH18048ZD3 | C-160 | 198×125×135 | 120×120×38 | 3.68 | |

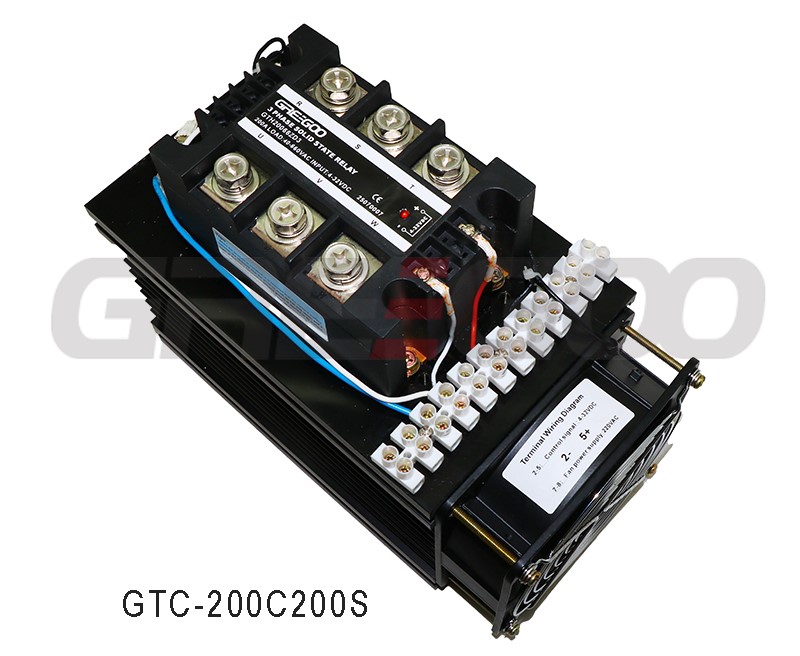

| GTC-200C200S | 3PH 200A | GTH20048ZD3 | C-200 | 238×125×135 | 120×120×38 | 4.48 | |
| GTC-250C200S | 3PH 250A | GTH25048ZD3 | C-200 | 238×125×135 | 120×120×38 | 4.48 | |
| GTC-300C250S | 3PH 300A | GTH30048ZD3 | C-250 | 288×125×135 | 120×120×38 | 5.48 | |
| GTC-350C300S | 3PH 350A | GTH35048ZD3 | C-300 | 338×125×135 | 120×120×38 | 6.48 | |

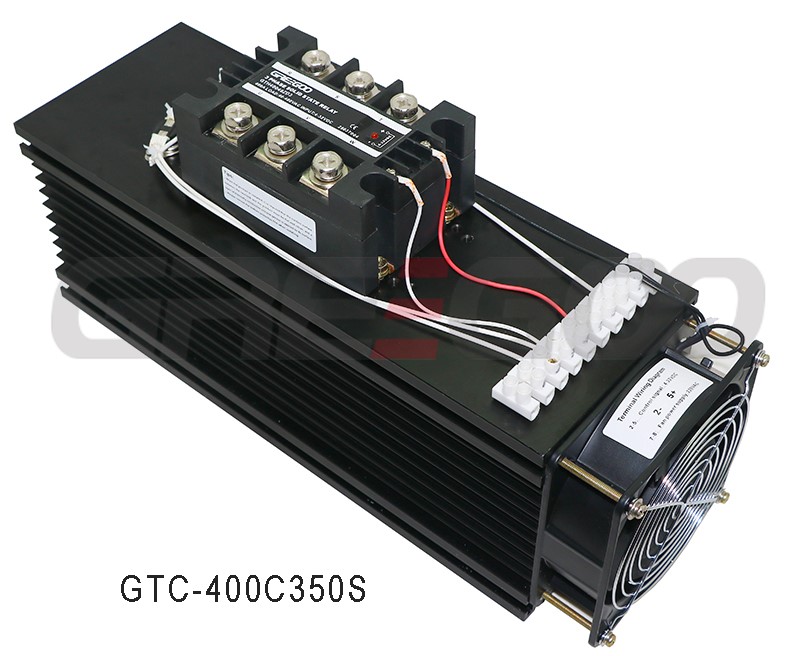

| GTC-400C350S | 3PH 400A | GTH40048ZD3 | C-350 | 398×125×135 | 120×120×38 | 7.48 | |

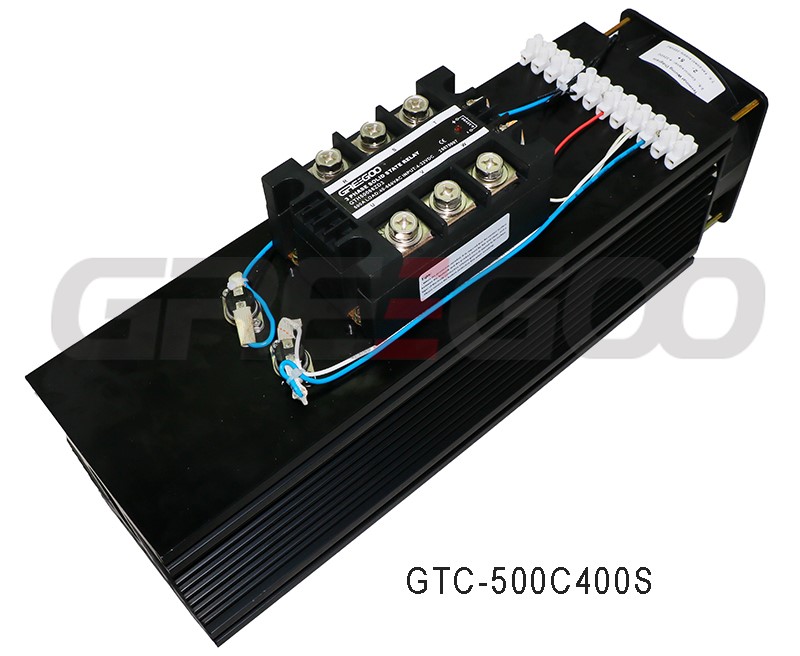

| GTC-500C400S | 3PH 500A | GTH50048ZD3 | C-400 | 438×125×135 | 120×120×38 | 8.64 |
3pcs single phase ssr assembly
| Part numbers | SSR rating | SSR model | Heatsink | Dimensions | Cooling fan size | Weight (Kgs) | Note |
| SSC-60F110S | 60A*3 | GDH6048ZD3B | F-110 | 135×85×96 | 92×90×25 | 1.12 | KSD301 thermostat, terminal blocks and assembly |
| SSC-80F130S | 80A*3 | GDH8048ZD3B | F-130 | 155×85×96 | 92×90×25 | 1.29 | |
| SSC-90F160S | 90A*3 | GDH9048ZD3B | F-160 | 185×85×96 | 92×90×25 | 1.49 | |
| SSC-100F215S | 100A*3 | GDH10048ZD3B | F-215 | 240×85×96 | 92×90×25 | 1.99 | |
| SSC-120C100S | 120A*3 | GDH12048ZD3B | C-100 | 138×125×135 | 120×120×38 | 2.48 | |

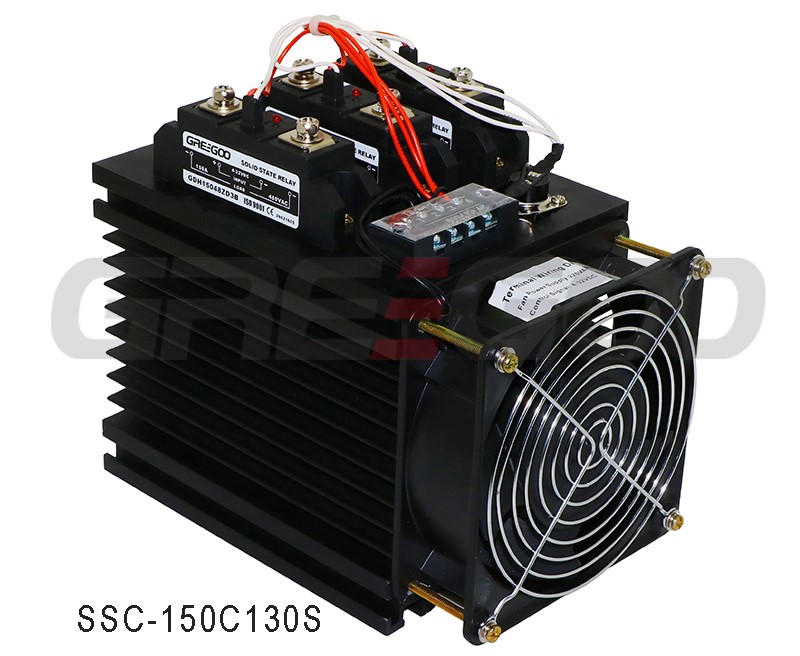

| SSC-150C130S | 150A*3 | GDH15048ZD3B | C-130 | 168×125×135 | 120×120×38 | 3.08 | |
| SSC-180C160S | 180A*3 | GDH18048ZD3B | C-160 | 198×125×135 | 120×120×38 | 3.68 | |
| SSC-200C200S | 200A*3 | GDH20048ZD3B | C-200 | 238×125×135 | 120×120×38 | 4.48 | |
| SSC-250C200S | 250A*3 | GDH25048ZD3B | C-200 | 238×125×135 | 120×120×38 | 4.48 | |

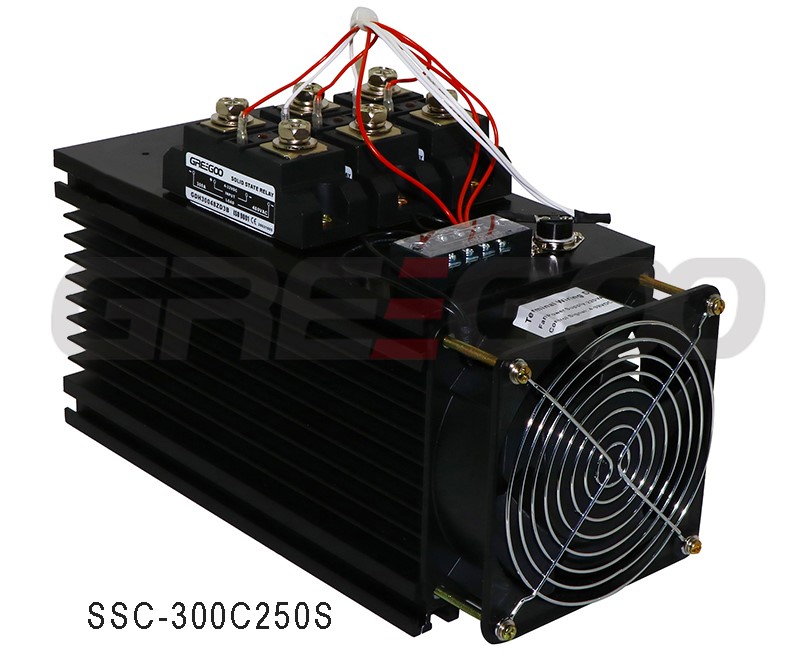

| SSC-300C250S | 300A*3 | GDH30048ZD3B | C-250 | 288×125×135 | 120×120×38 | 5.48 | |
| SSC-350C300S | 350A*3 | GDH35048ZD3B | C-300 | 338×125×135 | 120×120×38 | 6.48 | |

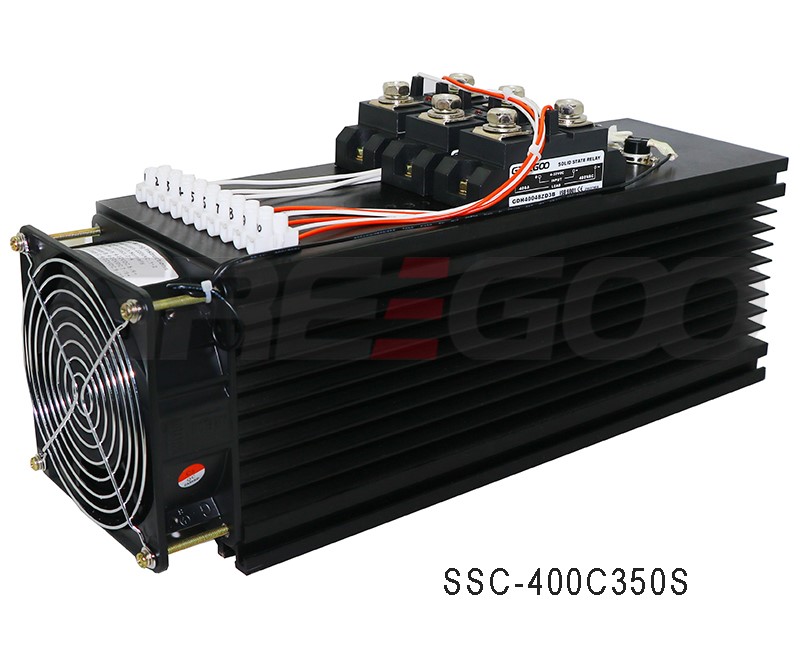

| SSC-400C350S | 400A*3 | GDH40048ZD3B | C-350 | 398×125×135 | 120×120×38 | 7.48 | |
| SSC-500C400S | 500A*3 | GDH50048ZD3B | C-400 | 438×125×135 | 120×120×38 | 8.64 |
