Solid State Relay integrated Socket
Home Products Solid State Relays (AC Switching)Plug in & PCB Solid State RelaySolid State Relay integrated Socket
Part Numbers

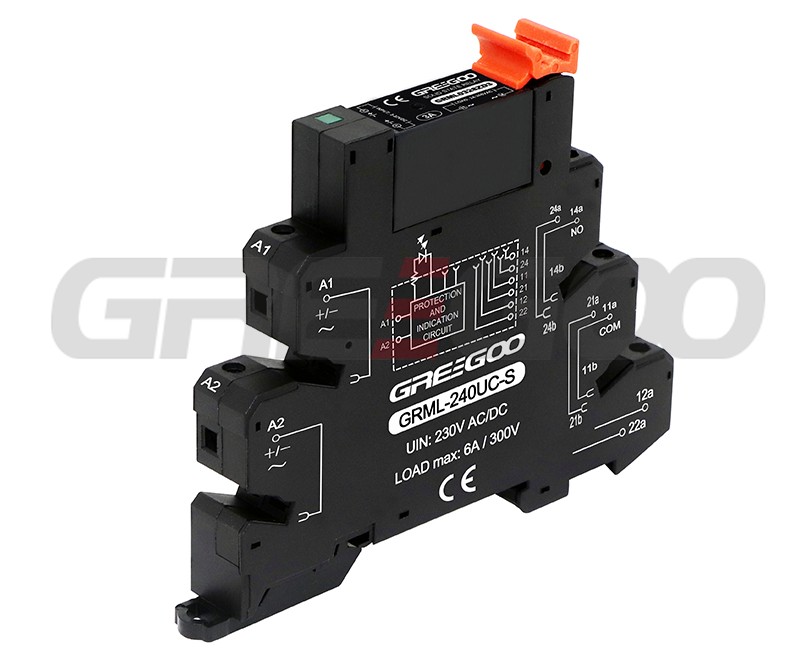

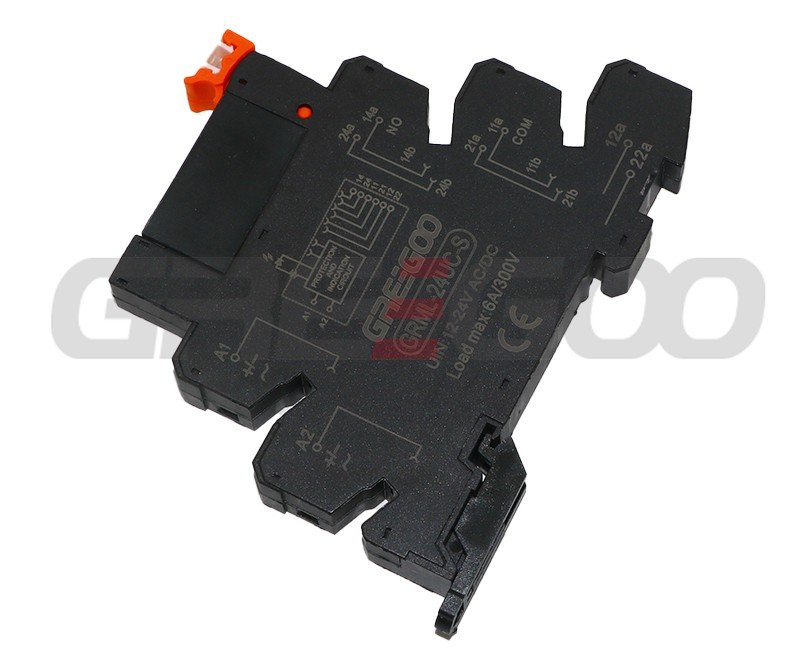

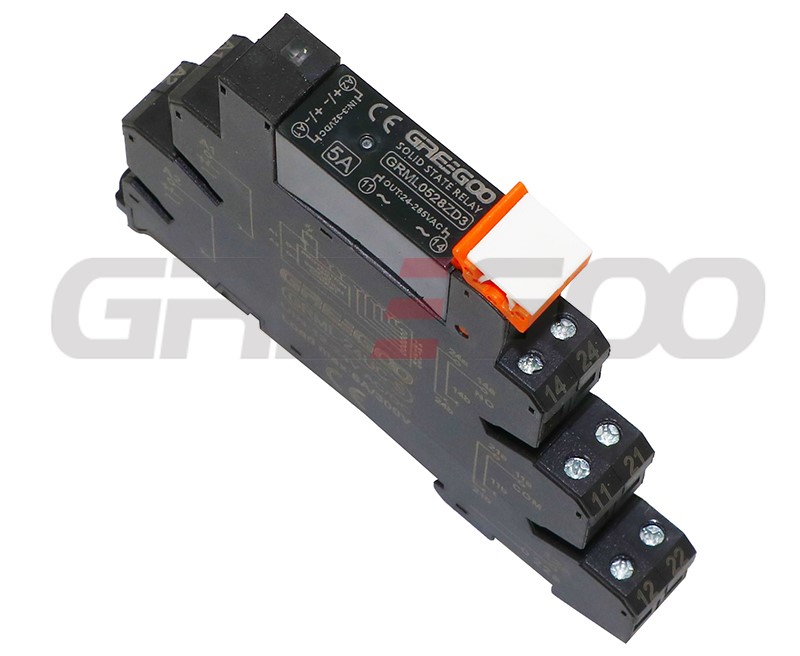

Solid State Relay integrated Socket
|
Part Numbers |
Input voltage (AC/DC) |
Load Voltage |
Load Current |
SSR Model |
Socket Model |
Mount |
| GRML0360DD3LS | 12V/24V | 2-60VDC | 3A | GRML0360DD3 | GRML-24UC-S | Screw |
| GRML0460DD3LS | 12V/24V | 2-60VDC | 4A | GRML0460DD3 | GRML-24UC-S | Screw |
| GRML0560DD3LS | 12V/24V | 2-60VDC | 5A | GRML0560DD3 | GRML-24UC-S | Screw |
| GRML0328ZD3LS | 12V/24V | 24-230VAC | 3A | GRML0328ZD3 | GRML-24UC-S | Screw |
| GRML0428ZD3LS | 12V/24V | 24-230VAC | 4A | GRML0428ZD3 | GRML-24UC-S | Screw |
| GRML0528ZD3LS | 12V/24V | 24-230VAC | 5A | GRML0528ZD3 | GRML-24UC-S | Screw |
| GRML0360DD3HS | 230V | 2-60VDC | 3A | GRML0360DD3 | GRML-240UC-S | Screw |
| GRML0460DD3HS | 230V | 2-60VDC | 4A | GRML0460DD3 | GRML-240UC-S | Screw |
| GRML0560DD3HS | 230V | 2-60VDC | 5A | GRML0560DD3 | GRML-240UC-S | Screw |
| GRML0328ZD3HS | 230V | 24-230VAC | 3A | GRML0328ZD3 | GRML-240UC-S | Screw |
| GRML0428ZD3HS | 230V | 24-230VAC | 4A | GRML0428ZD3 | GRML-240UC-S | Screw |
| GRML0528ZD3HS | 230V | 24-230VAC | 5A | GRML0528ZD3 | GRML-240UC-S | Screw |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
