Product details
Single thyristor module MCO600
Features / Advantages
Thyristor for line frequency
Planar passivated chip
Long-term stability
Direct Copper Bonded Al2O3-ceramic
Applications
Line rectifying 50/60 Hz
Softstart AC motor control
DC Motor control
Power converter
AC power control
Lighting and temperature control
Model
| Equivalent Model | VRRM/VDRM(V) | ITAV/IFAV(A) |
| MCO600-12N1 | 1200 | 600 |
| MCO600-14N1 | 1400 | 600 |
| MCO600-16N1 | 1600 | 600 |
| MCO600-18N1 | 1800 | 600 |
| MCO600-20N1 | 2000 | 600 |
| MCO600-22N1 | 2200 | 600 |

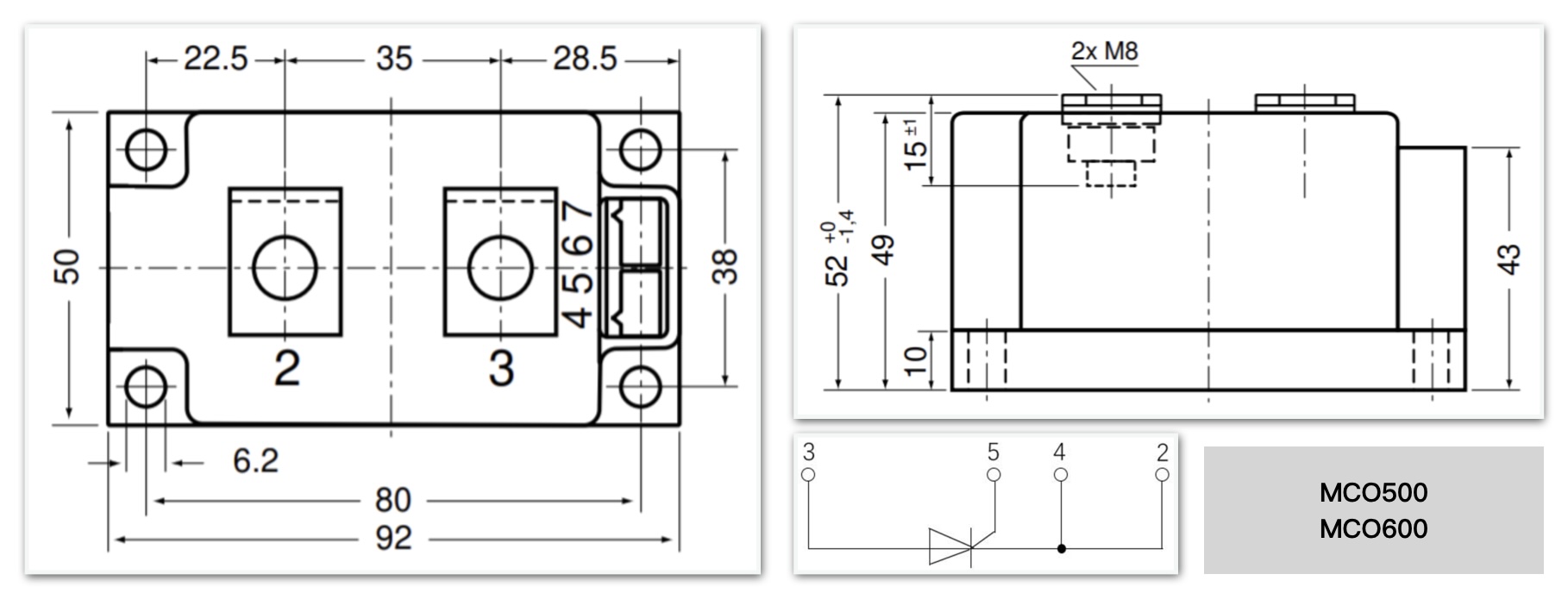

Dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
