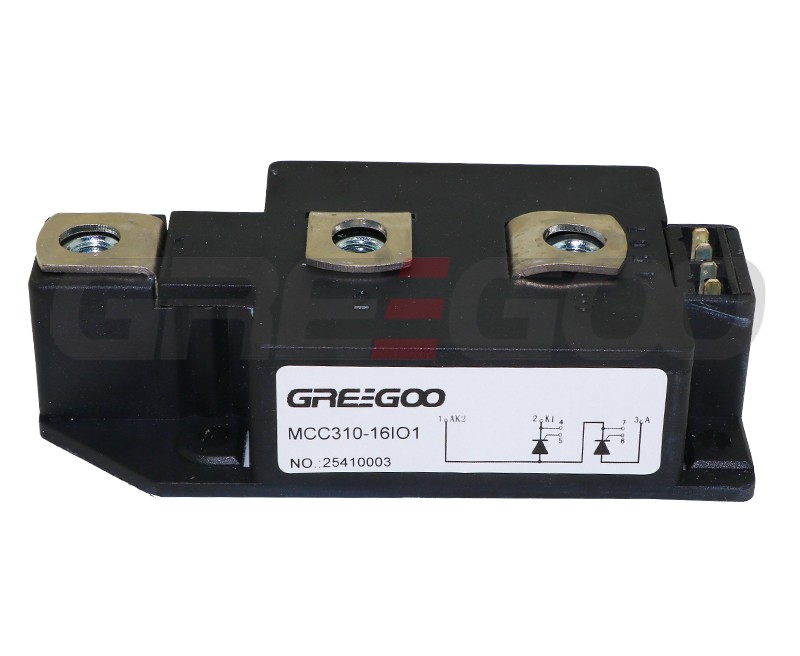

Y2-DCB package thyristor module MCC310

Y2-DCB package thyristor module MCC310

220A to 320A 800V to 1800V thyristor module

Specification

Thyristor Diode Module (Y2-DCB package)

Model	IT(AV) (A)	VRRM (V)	ITSM (A)	I2t (kA2·s)	V(TO) (V)	rT (mΩ)	Tvj max (ºC)	Rth(j-c) (ºC/W)	Weight (g)	Package	Size (mm)
MCC220-08io1	220	800	8000	320	0.9	0.85	140	0.145	320	Y2-DCB	116x60x32
MCC220-12io1	220	1200	8000	320	0.9	0.85	140	0.145	320	Y2-DCB	116x60x32
MCC220-14io1	220	1400	8000	320	0.9	0.85	140	0.145	320	Y2-DCB	116x60x32
MCC220-16io1	220	1600	8000	320	0.9	0.85	140	0.145	320	Y2-DCB	116x60x32
MCC220-18io1	220	1800	8000	320	0.9	0.85	140	0.145	320	Y2-DCB	116x60x32
MCC250-08io1	287	800	9000	405	0.85	0.82	140	0.129	320	Y2-DCB	116x60x32
MCC250-12io1	287	1200	9000	405	0.85	0.82	140	0.129	320	Y2-DCB	116x60x32
MCC250-14io1	287	1400	9000	405	0.85	0.82	140	0.129	320	Y2-DCB	116x60x32
MCC250-16io1	287	1600	9000	405	0.85	0.82	140	0.129	320	Y2-DCB	116x60x32
MCC250-18io1	287	1800	9000	405	0.85	0.82	140	0.129	320	Y2-DCB	116x60x32
MCC310-08io1	320	800	9200	423.2	0.8	0.82	140	0.11	255	Y2-DCB	116x60x32
MCC310-12io1	320	1200	9200	423.2	0.8	0.82	140	0.11	255	Y2-DCB	116x60x32
MCC310-14io1	320	1400	9200	423.2	0.8	0.82	140	0.11	255	Y2-DCB	116x60x32
MCC310-16io1	320	1600	9200	423.2	0.8	0.82	140	0.11	255	Y2-DCB	116x60x32
MCC310-18io1	320	1800	9200	423.2	0.8	0.82	140	0.11	255	Y2-DCB	116x60x32

MDD310 Dual Diode Module

Model No.	IFAV（A）	Tc ℃	VRRM V	IFSM A	I²t kA2·s	V(TO) V	rT mΩ	Tvj max ºC	Rth(j-c) ºC/W	Weight g	Package	Size (L×B×H) mm
MDD310-12N1	300	100	1200	11500	661.3	0.75	0.63	150	0.13	254	Y2-DCB	116x60x32
MDD310-14N1	300	100	1400	11500	661.3	0.75	0.63	150	0.13	254	Y2-DCB	116x60x32
MDD310-16N1	300	100	1600	11500	661.3	0.75	0.63	150	0.13	254	Y2-DCB	116x60x32
MDD310-18N1	300	100	1800	11500	661.3	0.75	0.63	150	0.13	254	Y2-DCB	116x60x32
MDD310-20N1	300	100	2000	11500	661.3	0.75	0.63	150	0.13	254	Y2-DCB	116x60x32
MDD310-22N1	300	100	2200	11500	661.3	0.75	0.63	150	0.13	254	Y2-DCB	116x60x32
