Product details

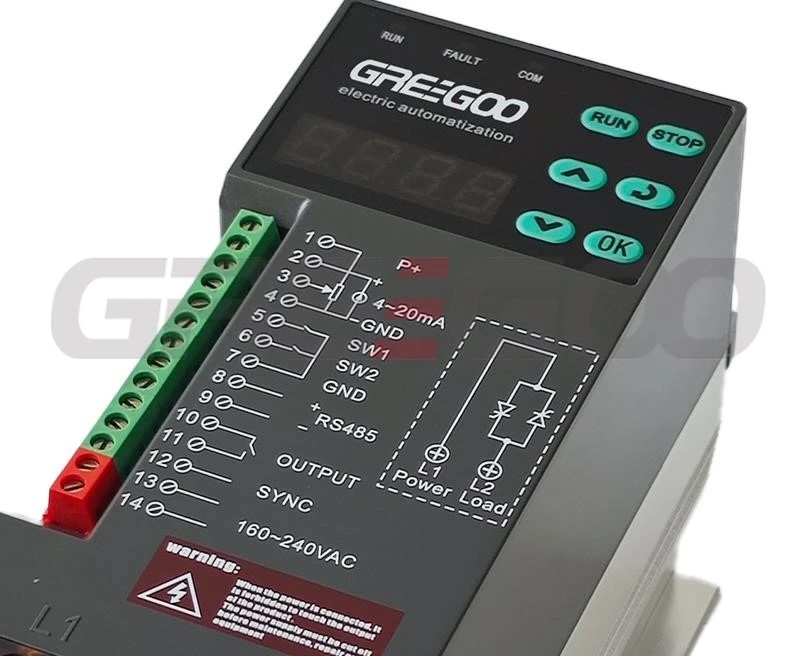

Single phase thyristor controller for heater (compact HGW8)

· It adopts control technology of Microcontroller Unit (MCU) embedded single-chip and PID closed-loop, with 100% linear output.

· It supports digital display of input, output, current, voltage, and power.

· It has a dual-channel input signal design, supporting input of both current and voltage signals.

· It supports multiple control modes, including constant voltage, constant current, constant power, open-loop control, and cycle control.

· It is equipped with multiple protection functions, such as phase loss protection, overcurrent protection, overtemperature protection, and open-circuit protection.

· It features MODBUS RTU communication, allowing the host computer to directly control the output level.

Model explaination

Part Numbers	1-2-3-4-*5	e.g.	HGW8-1-4-040-P

	Description	Code	Value
*1	Design Code	HGW8
*2	Phase	1	Single phase
*3	Main Power Supply	2	110-220V
		4	330-440V
*4	Rated Current	030	30A
		040	40A
		050	50A
		060	60A
		...	...
		150	150A
*5	Control mode setting	P	Phase constant voltage and current limiting
		C	Phase constant current
		CV	Phase constant power
		Z	Cycle zero-crossing power regulation
		ZV	Fixed cycle zero crossing power regulation

Model selection

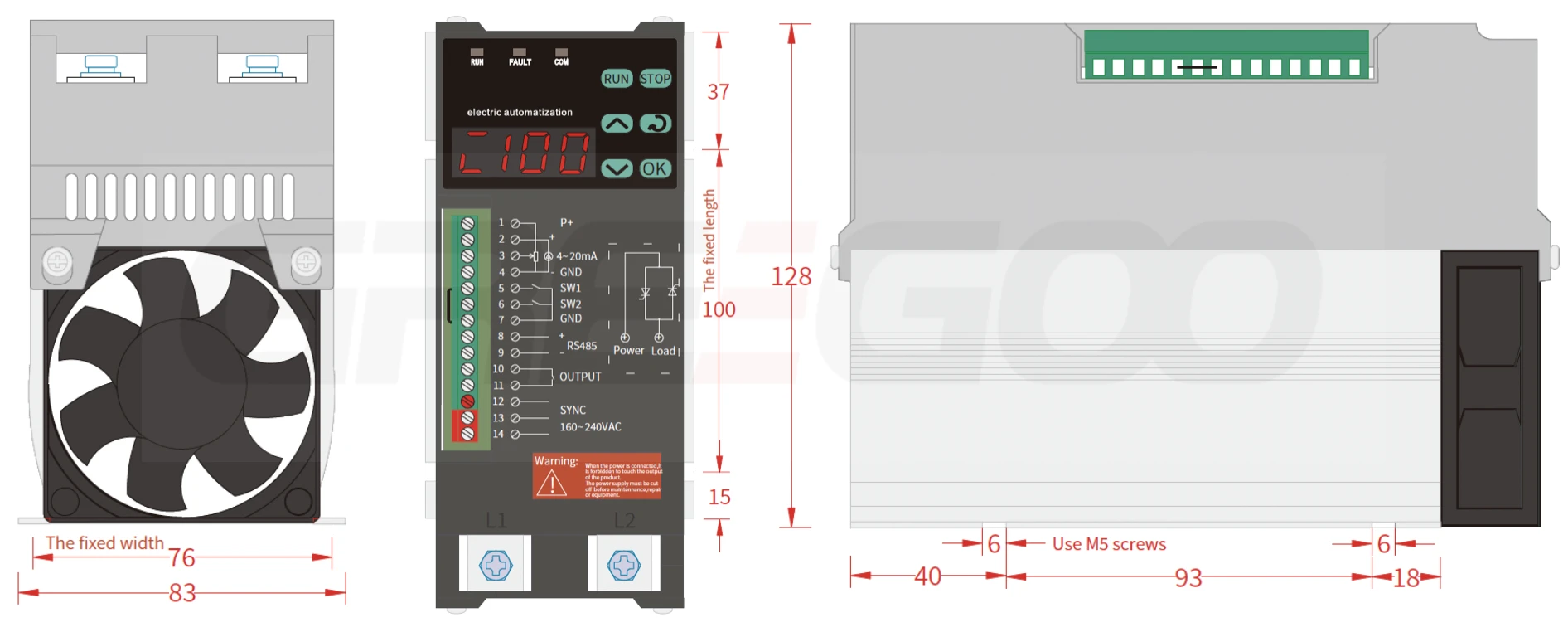

Model	Current	Load Power (KW)		Appearance Dimensions (mm)			Fixed Dimensions (mm)		Weight (kg)	Screw and Torque		Cooling Method
Model	Current	220V	380V	Length	Width	Height	Length	Width	Weight (kg)	Screw and Torque		Cooling Method
HGW8-1-4-030-P	30	5.2	9.1	185	83	128	100	76	1.2	M6	40kgfcm	forced air cooling
HGW8-1-4-040-P	40	7.0	12.1	185	83	128	100	76	1.2	M6	40kgfcm	forced air cooling
HGW8-1-4-050-P	50	8.8	15.2	185	83	128	100	76	1.2	M6	40kgfcm	forced air cooling
HGW8-1-4-060-P	60	10.5	18.2	185	83	128	100	76	1.2	M6	40kgfcm	forced air cooling
HGW8-1-4-075-P	75	13.2	22.8	185	83	128	100	76	1.2	M6	40kgfcm	forced air cooling
HGW8-1-4-080-P	80	14.0	24.3	185	83	128	100	76	1.2	M6	40kgfcm	forced air cooling
HGW8-1-4-090-P	90	15.8	27.3	185	83	128	100	76	1.2	M6	40kgfcm	forced air cooling
HGW8-1-4-100-P	100	17.6	30.4	185	83	128	100	76	1.2	M6	40kgfcm	forced air cooling
HGW8-1-4-125-P	125	22.0	38.0	185	83	128	100	76	1.2	M6	40kgfcm	forced air cooling
HGW8-1-4-150-P	150	26.4	45.6	185	83	128	100	76	1.2	M6	40kgfcm	forced air cooling
