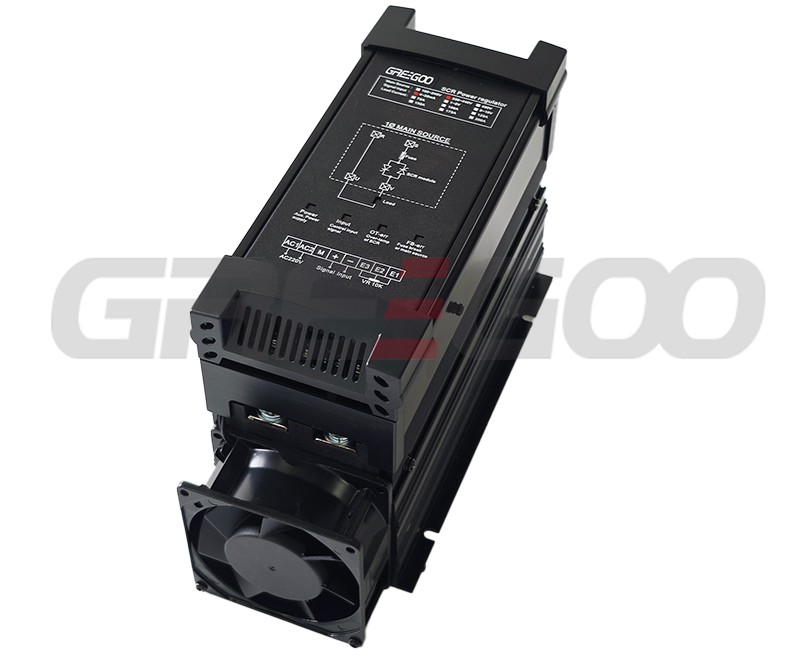

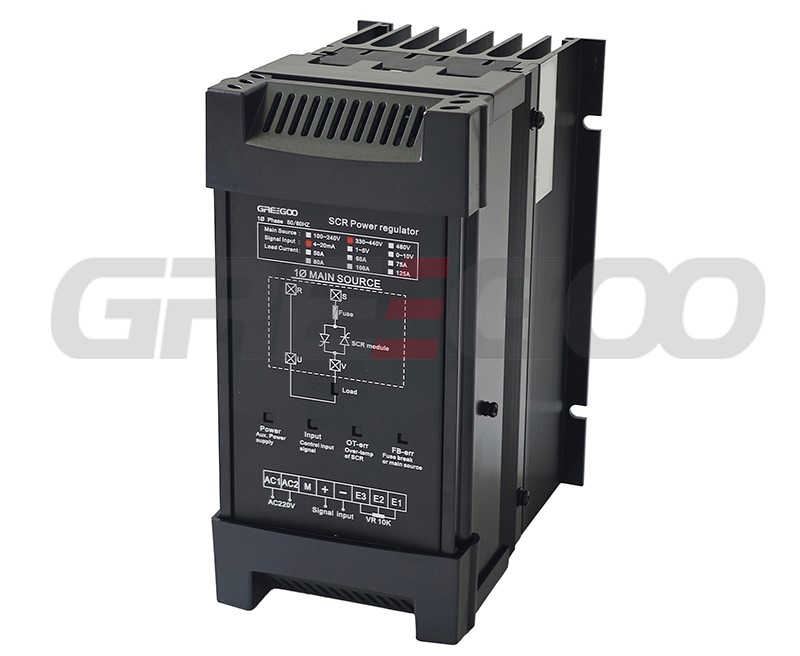

Thyristor Power Controller HGW3

Product Features

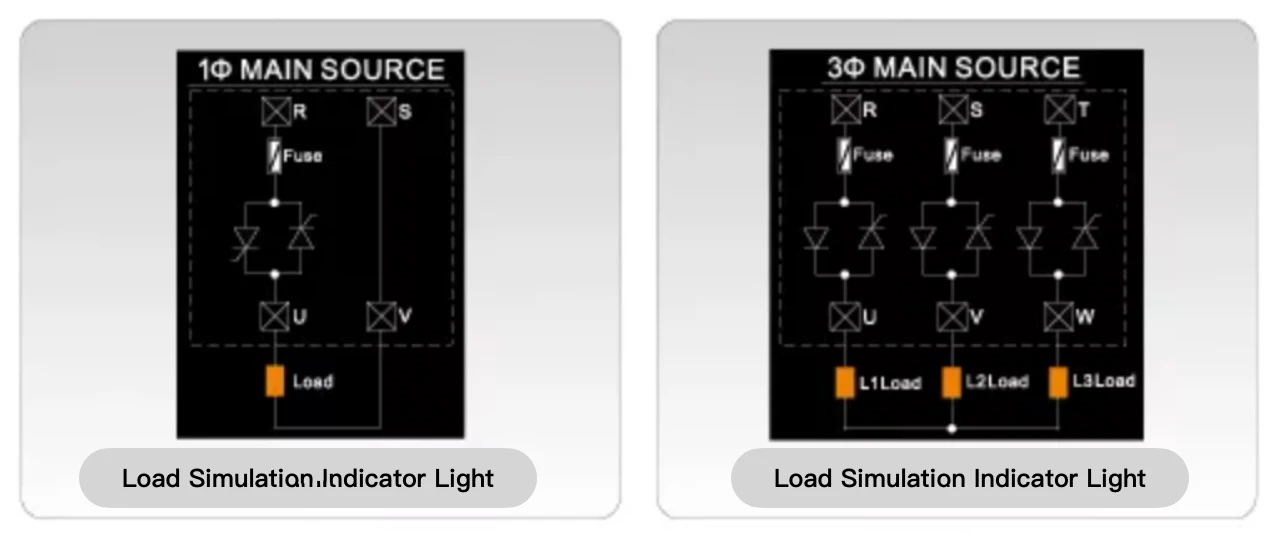

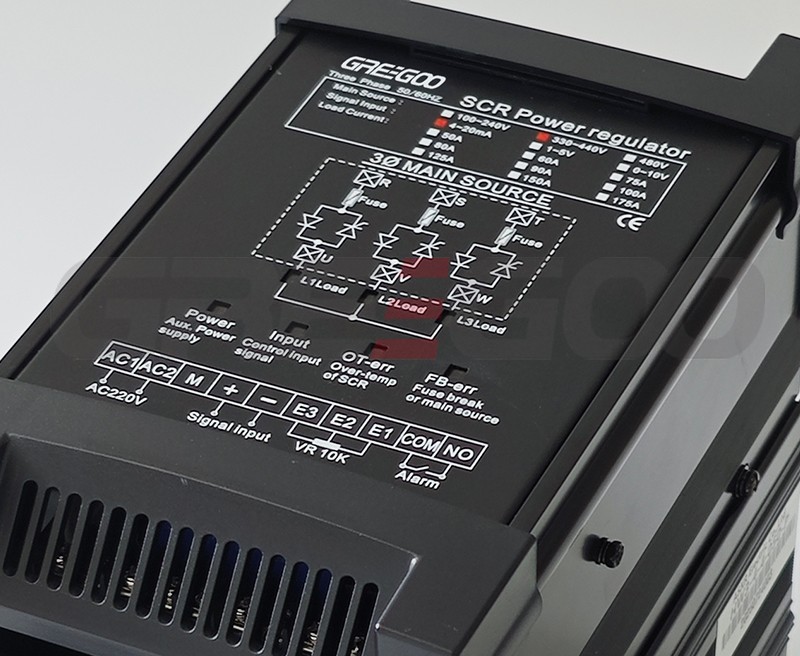

Innovative Load Simulation Indicator Light
Unique load simulation indicator light intuitively reflects load current size, output balance, and power phase loss. If the fast-acting fuse blows, it can be directly determined by observing whether the indicator light is off.

load indication

Preset Optimal Soft Start and Soft Stop Time
Through field testing of different loads, a 5-second soft start and 5-second soft stop buffer time are preset, effectively protecting the SCR module and load.

Comprehensive Protection and Alarm Functions

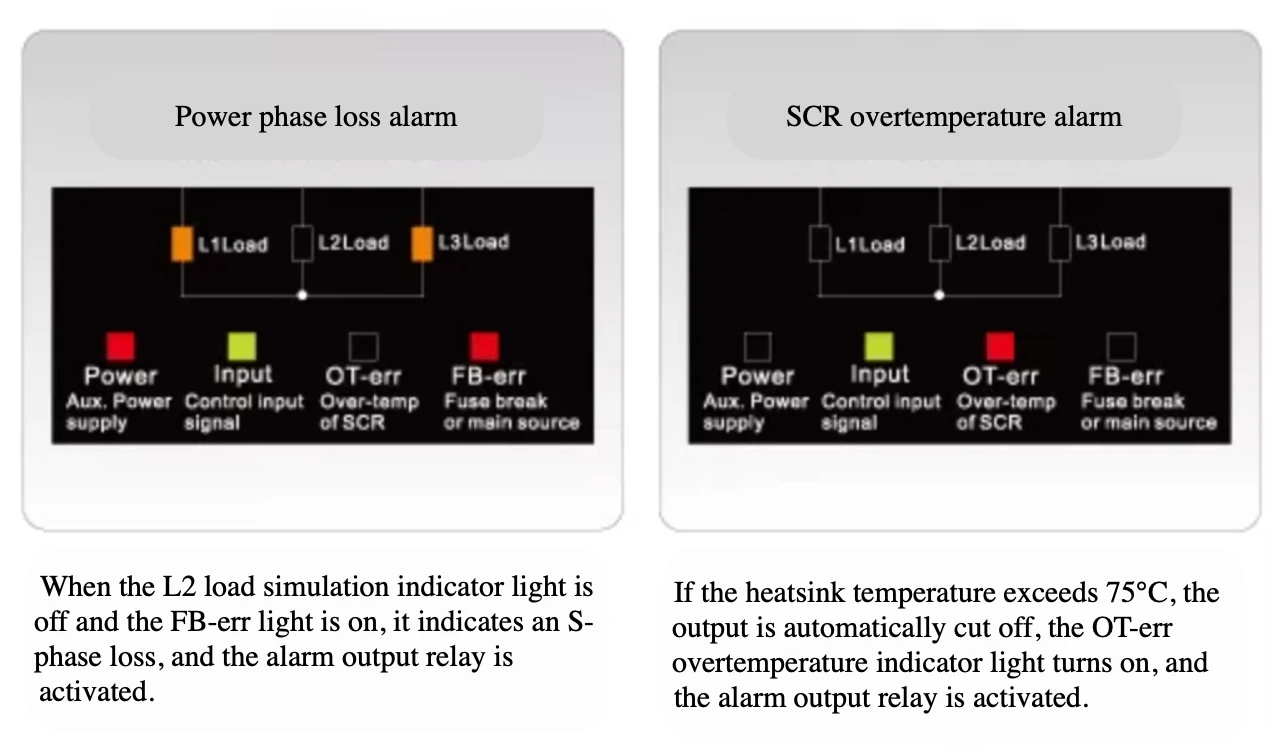

Standard features include power phase loss alarm, SCR overtemperature alarm, fast-acting fuse blown indication, and an optional alarm contact output.

alarm function

Wide Range of Control Input Signal Types
Supports 4~20mA, 1~5V, 2~10V, 0~20mA, 0~5V, 0~10V, contact switch signal, and manual potentiometer.

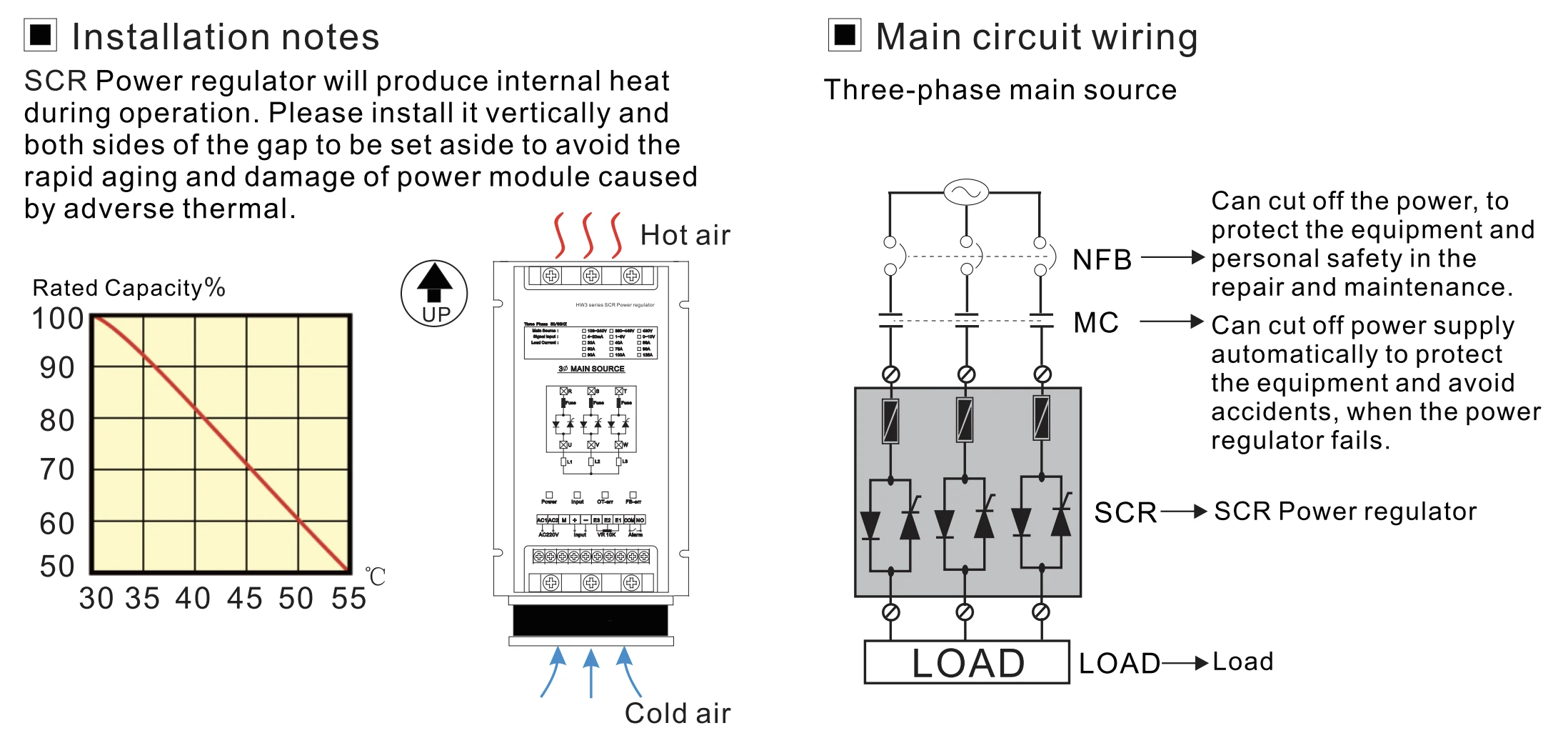

Model explanation

Part Numbers	1-2-3-4-*5	e.g.	HGW3-1-4-040-P

	Description	Code	Value
*1	Design Code	HGW3
*2	Phase	1	Single phase
		4	Three phase half control
*3	Main Power Supply	2	100-240V
		4	330-440V
		8	480V
*4	Rated Current	030	30A
		040	40A
		050	50A
		060	60A
		...	...
		400	400A
*5	Control mode setting	P	Phase angle output

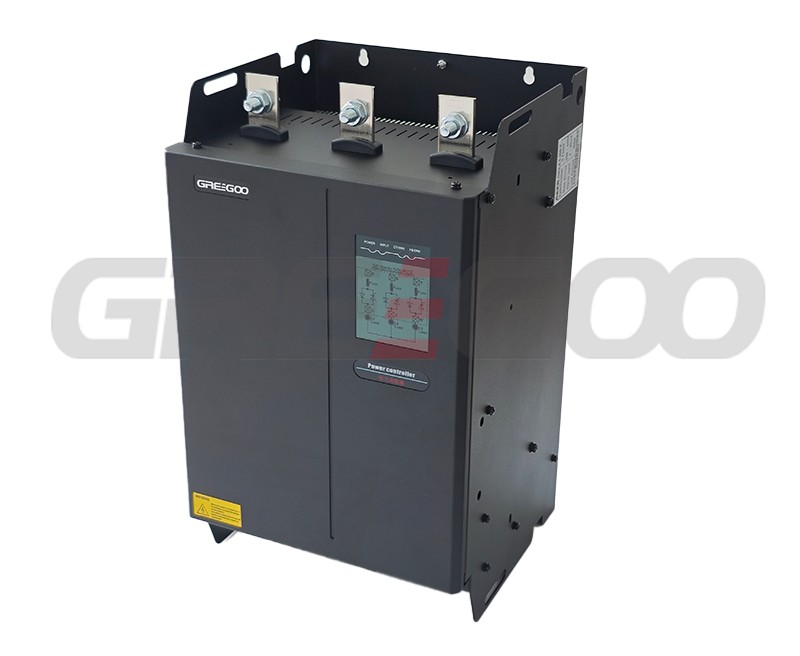

Specification

Mode	Max. Current	Load(KW)		Product size (mm)			Mount size (mm)		Weight (KG)	Screw	Torque	Cooling mode
		220V	380V	L	W	H	L	W
HGW3-4-4-030-P	30A	9.5	16.5	160	110	160	130	105	1.8	M6	40kgfcm	Natural
HGW3-4-4-040-P	40A	12.5	20	200	110	160	130	105	2.3	M6	40kgfcm	Natural
HGW3-4-4-030-PF	30A	9.5	16.5	185	110	160	130	105	1.8	M6	40kgfcm	Forced air cooling
HGW3-4-4-040-PF	40A	12.5	20	225	110	170	130	105	2.3	M6	40kgfcm	Forced air cooling
HGW3-4-4-050-P	50A	15.5	27	250	140	195	162	135	3.5	M6	50kgfcm	Forced air cooling
HGW3-4-4-060-P	60A	19	33	250	140	195	162	135	3.5	M6	50kgfcm	Forced air cooling
HGW3-4-4-075-P	75A	23.5	41	250	140	195	162	135	3.9	M6	70kgfcm	Forced air cooling
HGW3-4-4-080-P	80A	25.5	44	250	140	195	162	135	3.9	M6	75kgfcm	Forced air cooling
HGW3-4-4-090-P	90A	28.5	49	250	140	205	162	135	3.9	M6	85kgfcm	Forced air cooling
HGW3-4-4-100-P	100A	32	55	250	140	205	162	135	3.9	M6	85kgfcm	Forced air cooling
HGW3-4-4-125-P	125A	40	68.5	290	140	205	202	135	5.1	M8	95kgfcm	Forced air cooling
HGW3-4-4-150-P	150A	45	75	340	140	205	252	135	5.7	M8	170kgfcm	Forced air cooling
HGW3-4-4-175-P	175A	53	88	340	140	205	252	135	5.7	M8	200kgfcm	Forced air cooling
HGW3-4-4-200-P	200A	60	100	379	185	225	272	170	13	M8	220kgfcm	Forced air cooling
HGW3-4-4-225-P	225A	68	113	420	244	236	401	160	13	M10	250kgfcm	Forced air cooling
HGW3-4-4-250-P	250A	80	130	420	244	236	401	160	15	M10	250kgfcm	Forced air cooling
HGW3-4-4-300-P	300A	89	160	435	263	248	416	160	18	M10	250kgfcm	Forced air cooling
HGW3-4-4-350-P	350A	104	187	435	263	248	416	160	20	M10	250kgfcm	Forced air cooling
HGW3-4-4-400-P	400A	120	220	435	263	248	416	160	22	M12	250kgfcm	Forced air cooling
HGW3-4-4-450-P	450A	133	250	435	263	290	416	160	26	M12	250kgfcm	Forced air cooling
HGW3-4-4-500-P	500A	149	275	435	263	290	416	160	28	M12	250kgfcm	Forced air cooling
HGW3-4-4-600-P	600A	180	330	435	263	290	416	160	30	M12	250kgfcm	Forced air cooling
HGW3-1-4-030-P	30A	5.5	9	160	113	160	130	105	1.8	M6	40kgfcm	Natural
HGW3-1-4-040-P	40A	6.5	10	160	113	160	130	105	1.8	M6	40kgfcm	Natural
HGW3-1-4-050-P	50A	8.5	12	225	113	170	130	105	2.3	M6	50kgfcm	Forced air cooling
HGW3-1-4-060-P	60A	10	15	225	113	170	130	105	2.3	M6	50kgfcm	Forced air cooling
HGW3-1-4-075-P	75A	14	23	225	113	170	130	105	2.5	M6	70kgfcm	Forced air cooling
HGW3-1-4-080-P	80A	15	25	225	113	170	130	105	2.5	M6	75kgfcm	Forced air cooling
HGW3-1-4-090-P	90A	16.5	27	225	113	170	130	105	2.5	M6	75kgfcm	Forced air cooling
HGW3-1-4-100-P	100A	18	30	225	113	170	130	105	2.5	M6	85kgfcm	Forced air cooling
HGW3-1-4-125-P	125A	22	36	270	113	170	160	105	2.8	M6	95kgfcm	Forced air cooling
HGW3-1-4-150-P	150A	26	44	270	113	170	160	105	3.5	M6	170kgfcm	Forced air cooling
HGW3-1-4-175-P	175A	30	50	270	113	170	160	105	3.5	M6	200kgfcm	Forced air cooling
HGW3-1-4-200-P	200A	35	60	270	113	170	160	105	3.5	M6	220kgfcm	Forced air cooling
HGW3-1-4-225-P	225A	39	65	340	140	195	252	135	3.5	M6	250kgfcm	Forced air cooling
HGW3-1-4-250-P	250A	42	70	340	140	195	252	135	3.5	M6	250kgfcm	Forced air cooling
HGW3-1-4-300-P	300A	52	86	325	164	208	316	104	4.5	M8	250kgfcm	Forced air cooling
HGW3-1-4-400-P	400A	70	120	325	164	208	316	104	5.5	M8	250kgfcm	Forced air cooling
