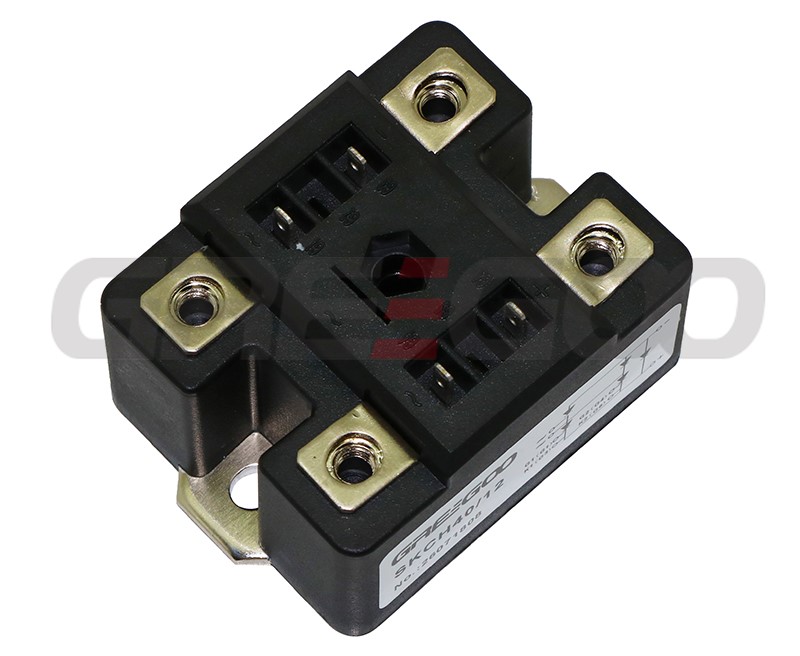

SKCH40 Controllable Bridge Rectifiers

The SKCH 40 series consists of single-phase controlled bridge rectifier modules rated for a load current of 40A. These thyristor-based power modules are commonly deployed in industrial automation to provide controllable AC-to-DC variable voltage outputs

Features

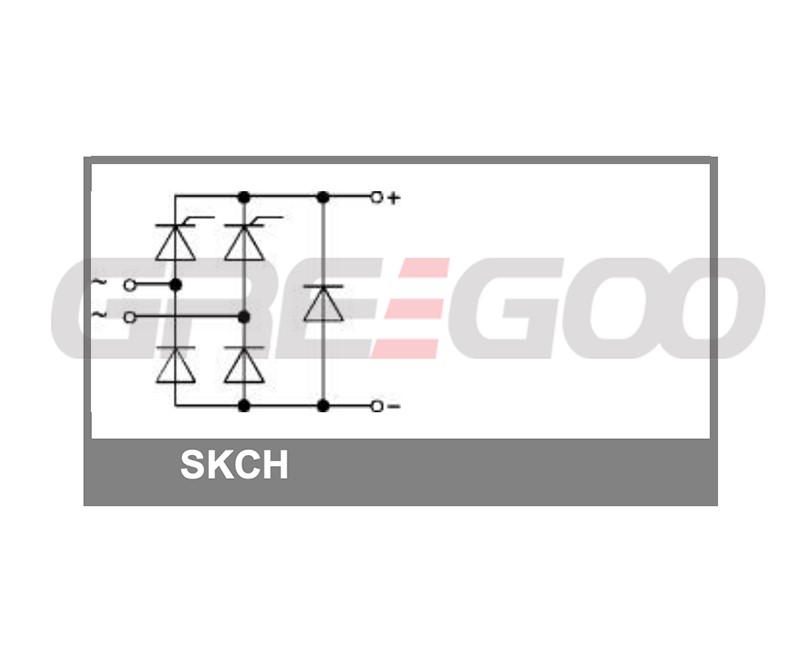

• Fully controlled single phase bridge rectifier
• Robust plastic case with screw terminals

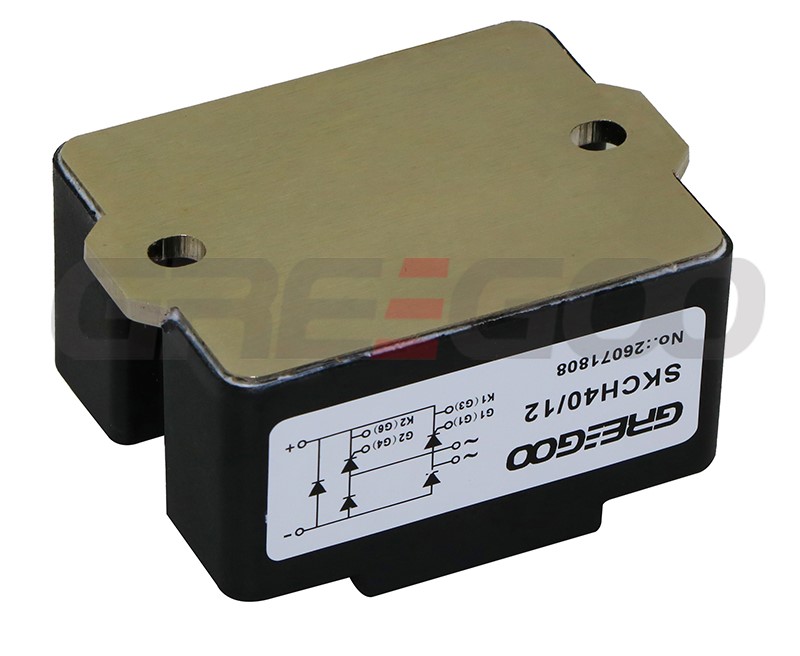

• Large, isolated base plate
• Blocking voltage to 1600V
• High surge currents
• Easy chassis mounting

Typical Applications
• For DC drives with a fixed direction of rotation
• Controlled field rectifiers for DC motors
• Controlled battery charger rectifiers

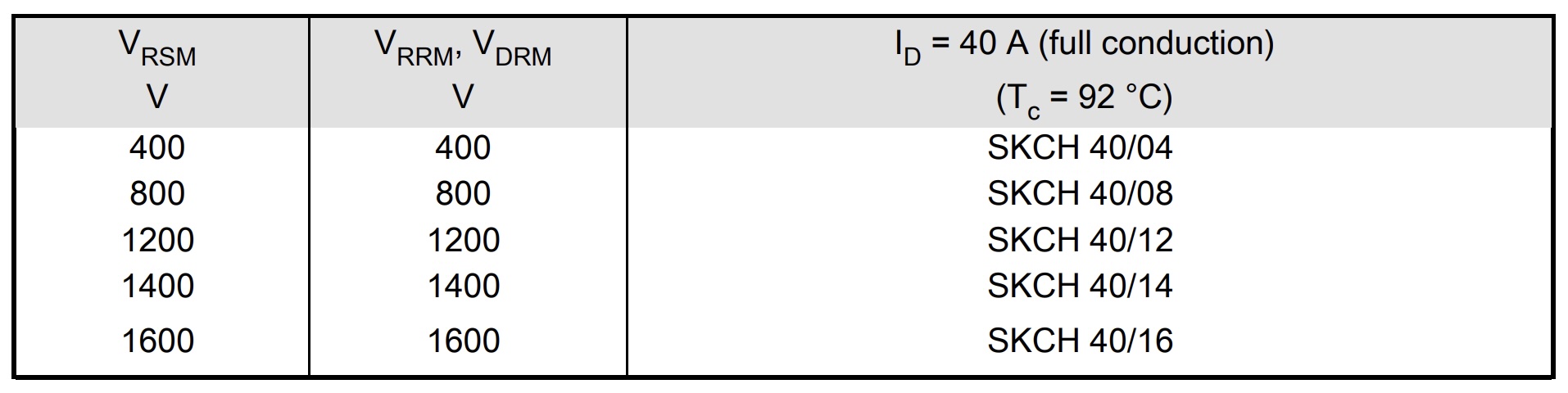

SKCH40/04, SKCH40/08, SKCH40/12, SKCH40/14, SKCH40/16
