Product details

SCHOTTKY DIODE MODULE MBR600

Features
High Surge Capability
Types up to 100V VRRM

Maximum Ratings
Junction Operating Temperature : -55°C to 150°C
Storage Temperature: -55°C to 150°C

Specification

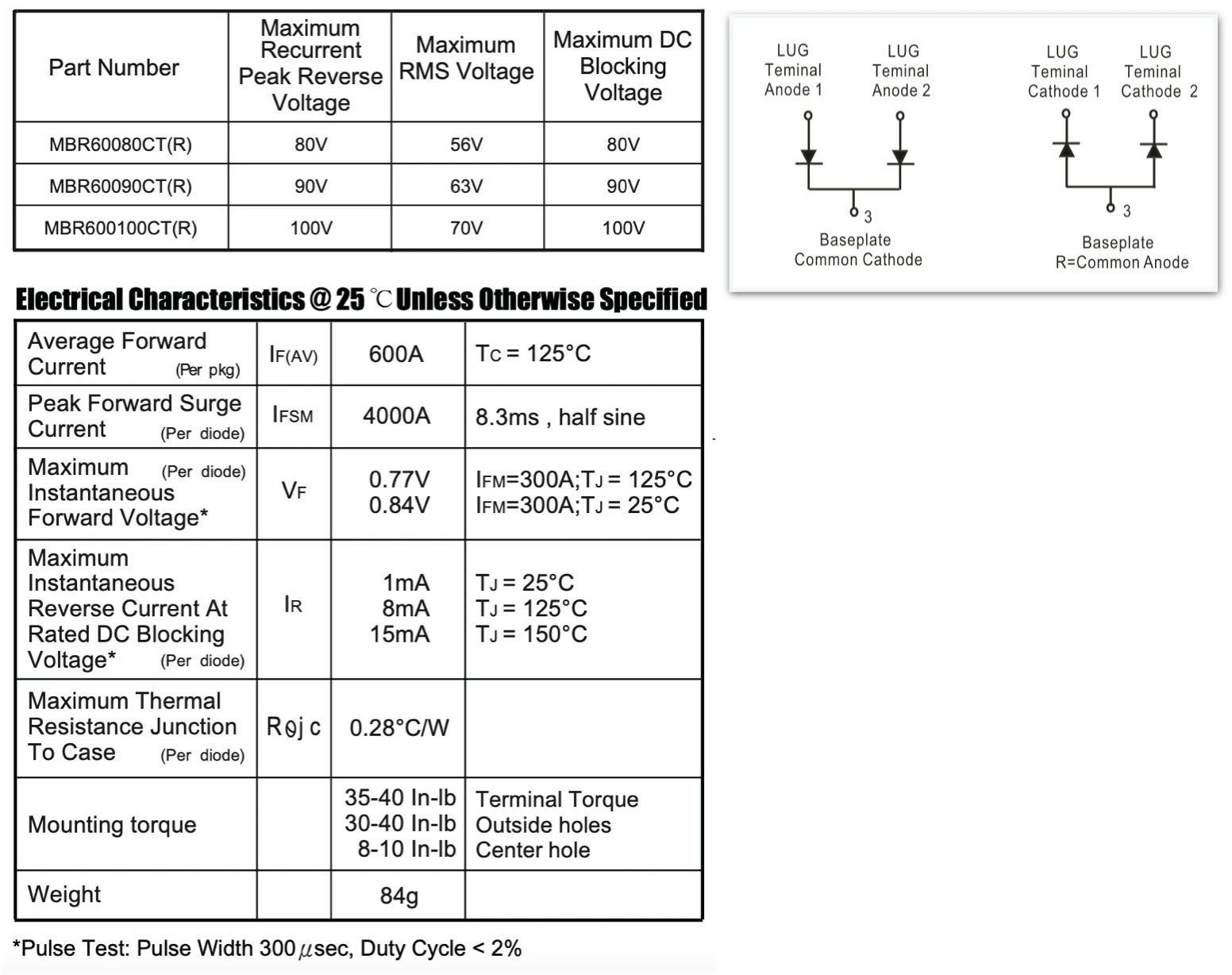

MBR60080CTR MBR600100CTR schottky diode module

Part Numbers

Part Number	VRRM (VPK)	Current (A) (Per pkg)	IF @Tc (A) (Per diode)	@Tc (°C)	IFSM Max (A)	VF @25°C (V)	VF @125°C (V)	Configuration
MBR60060CTR	60	600	300	125	4000	0.8	0.75	Common Anode
MBR60080CT	80	600	300	125	4000	0.84	0.77	Common Cathode
MBR60080CTR	80	600	300	125	4000	0.84	0.77	Common Anode
MBR60090CT	90	600	300	125	4000	0.84	0.77	Common Cathode
MBR60090CTR	90	600	300	125	4000	0.84	0.77	Common Anode
MBR600100CT	100	600	300	125	4000	0.84	0.77	Common Cathode
MBR600100CTR	100	600	300	125	4000	0.84	0.77	Common Anode
MBR600150CT	150	600	300	125	4000	0.88	0.8	Common Cathode
MBR600150CTR	150	600	300	125	4000	0.88	0.8	Common Anode
MBR600200CT	200	600	300	125	4000	0.92	-	Common Cathode
MBR600200CTR	200	600	300	125	4000	0.92	-	Common Anode
