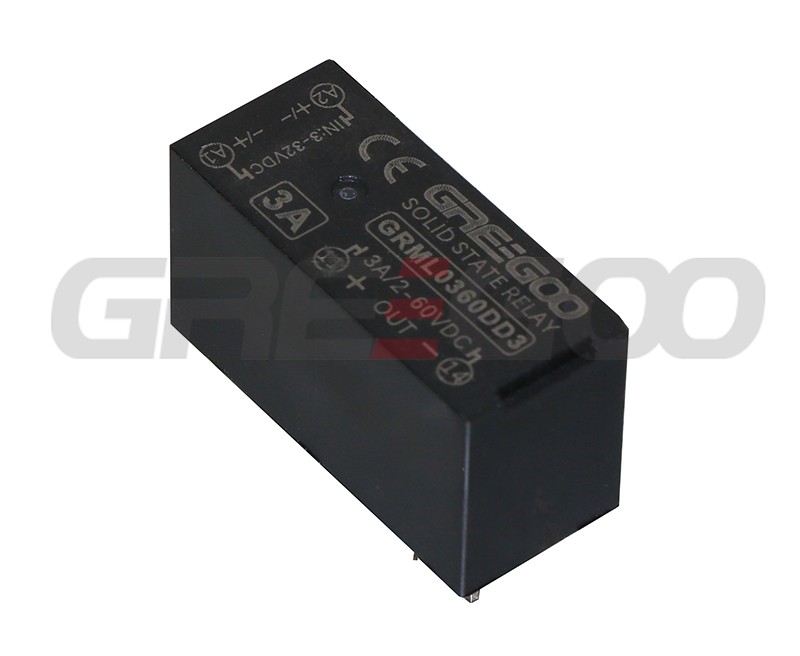

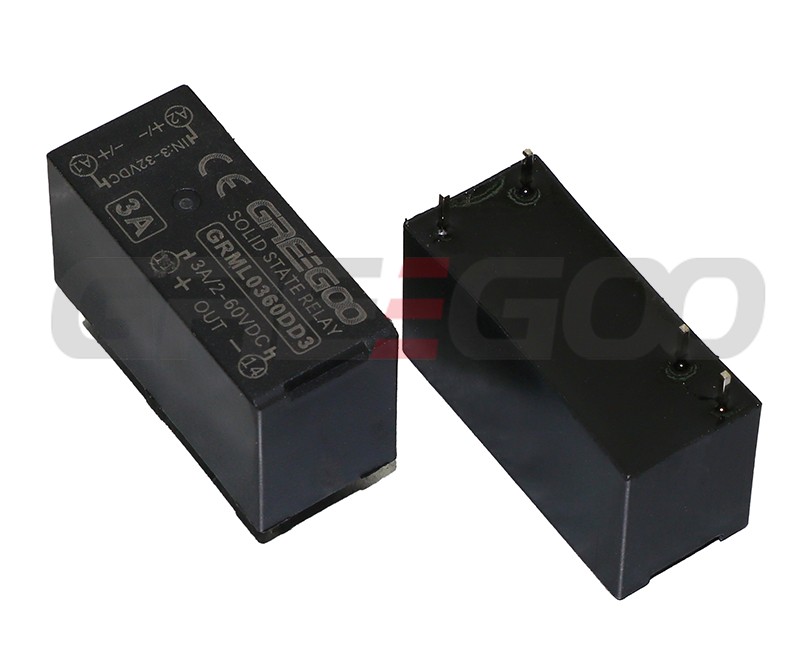

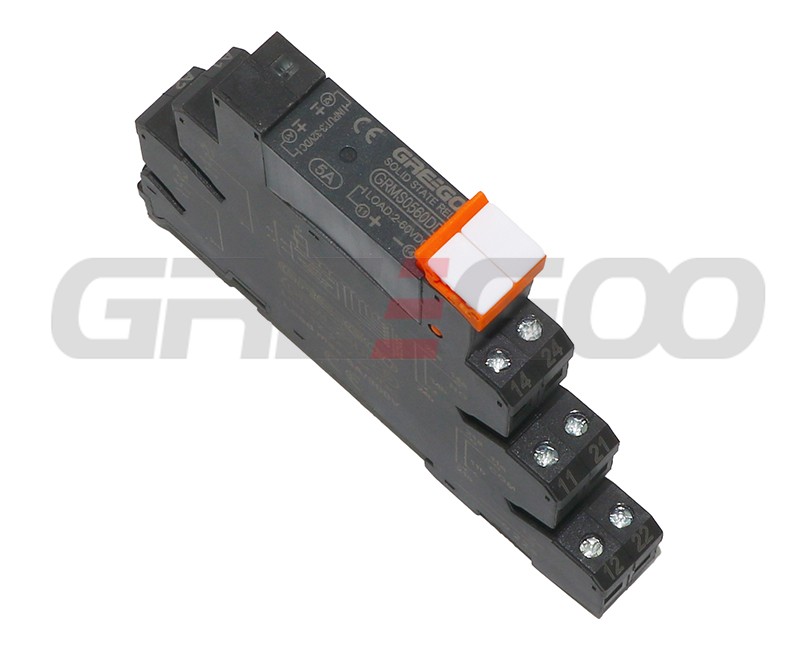

Pluggable Solid State Relay Module
Home Products Solid State Relays (AC Switching)Plug in & PCB Solid State RelayPluggable Solid State Relay Module
Feature
Pluggable Solid State Relay Module
| Feature |
| ● Vibration and shock resistant |
| ● Zero voltage switch at AC output |
| ● Limiting continuous current: 3A、4A、5A |
| ● Nominal input voltage Un: 3-32VDC |
| ● Output nominal voltage: 24-265VAC |
| ● Dielectric strength 2500V |
| ● DC Control, AC Output |
| ● Optically Isolated |
| ● Machine Insertable, Wave Solderable |

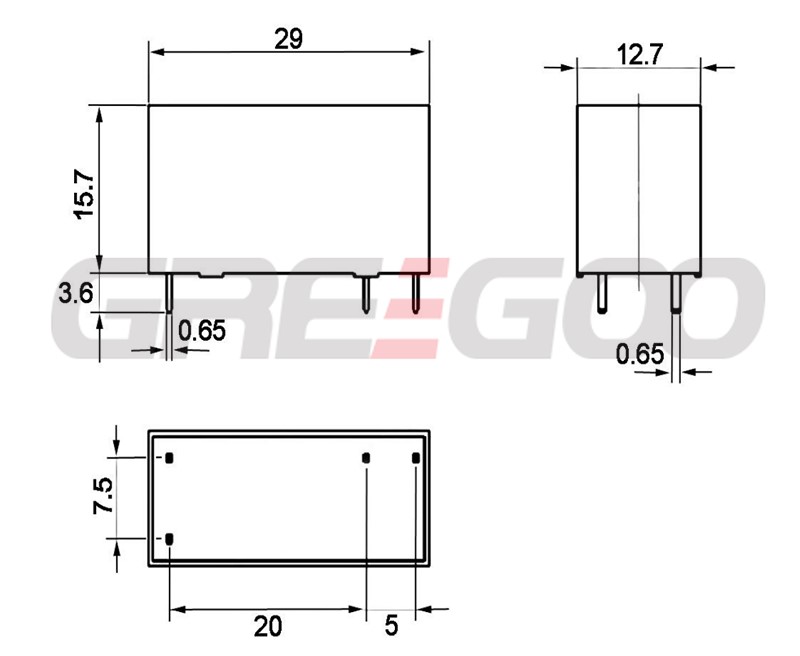

DC to AC
| Part Numbers | GRML0328ZD3 | GRML0428ZD3 | GRML0528ZD3 |
| Load Current | 3A | 4A | 5A |
| AC Operating Voltage | 24-265VAC | 24-265VAC | 24-265VAC |
| Input Control Current | ≤10mA | ≤10mA | ≤10mA |
| Zero-Cross Turn-On Voltage |
3-32VDC | 3-32VDC | 3-32VDC |
| On-State Voltage Drop | ≤1.5V | ≤1.5V | ≤1.5V |
| Output off-state leakage current | ≤5mA | ≤5mA | ≤5mA |
| Switching Speeds (turn-on) | 0.5-cycles | 0.5-cycles | 0.5-cycles |
| Switching Speeds (turn-off) | 0.5-cycles | 0.5-cycles | 0.5-cycles |
| Min. load current | 25mA | 25mA | 25mA |
| Isolation Voltage | 2500VAC | 2500VAC | 2500VAC |
| Contact switching type | 1NO contact | 1NO contact | 1NO contact |
| Protective circuit | RC element | RC element | RC element |
| Operational Temperature | （-20～60℃) | （-20～60℃) | （-20～60℃) |
| Install | Direct PCB or Socket | Direct PCB or Socket | Direct PCB or Socket |
DC to DC
| Part Numbers | GRML0360DD3 | GRML0460DD3 | GRML0560DD3 |
| Load Current | 3A | 4A | 5A |
| DC Operating Voltage | 2-60VDC | 2-60VDC | 2-60VDC |
| Input Control Current | ≤10mA | ≤10mA | ≤10mA |
| Nominal input voltage UN | 3-32VDC | 3-32VDC | 3-32VDC |
| On-State Voltage Drop | ≤1.5V | ≤1.5V | ≤200mV |
| Output off-state leakage current | ≤15µA | ≤15µA | ≤15µA |
| Switching Speeds (turn-on) | 50µS | 50µS | 60µS |
| Switching Speeds (turn-off) | 400µS | 400µS | 600µS |
| Min. load current | 500µA | 500µA | 5mA |
| Isolation Voltage | 2500VAC | 2500VAC | 2500VAC |
| Contact switching type | 1NO contact | 1NO contact | 1NO contact |
| Protective circuit | freewheeling diode | freewheeling diode | freewheeling diode |
| Operational Temperature | （-20～60℃) | （-20～60℃) | （-20～60℃) |
| Install | Direct PCB or Socket | Direct PCB or Socket | Direct PCB or Socket |
