LMZB-10 current transformer
The LMZB-10 type current transformer is suitable for AC power systems with a rated frequency of 50Hz or 60Hz and a rated voltage of 10kV, and is used for electric energy metering, current measurement and relay protection.
- Installation site: Indoor.
- Ambient temperature: Up to 40°C Minimum temperature: - 25°C The daily average temperature should not exceed 30°C.
- Atmospheric conditions: There is no severe pollution in the atmosphere.

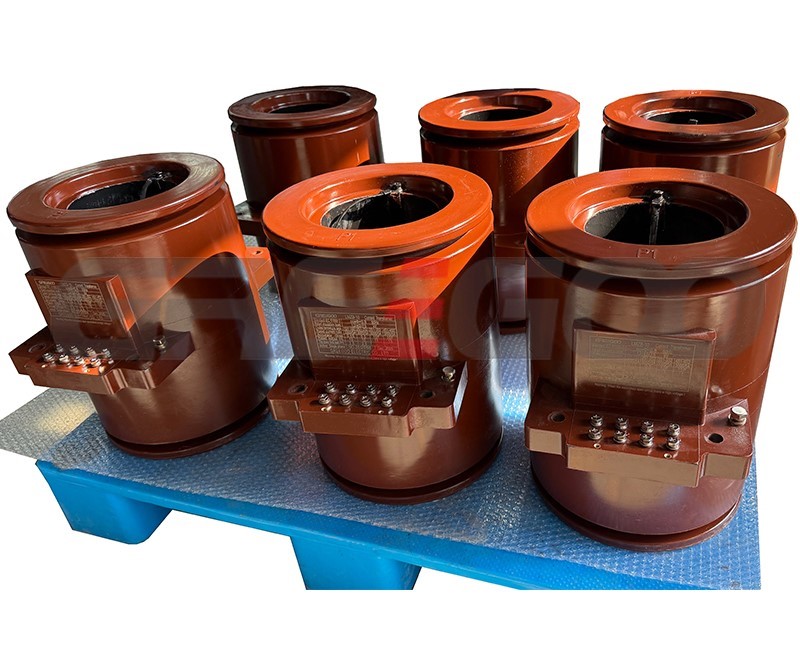

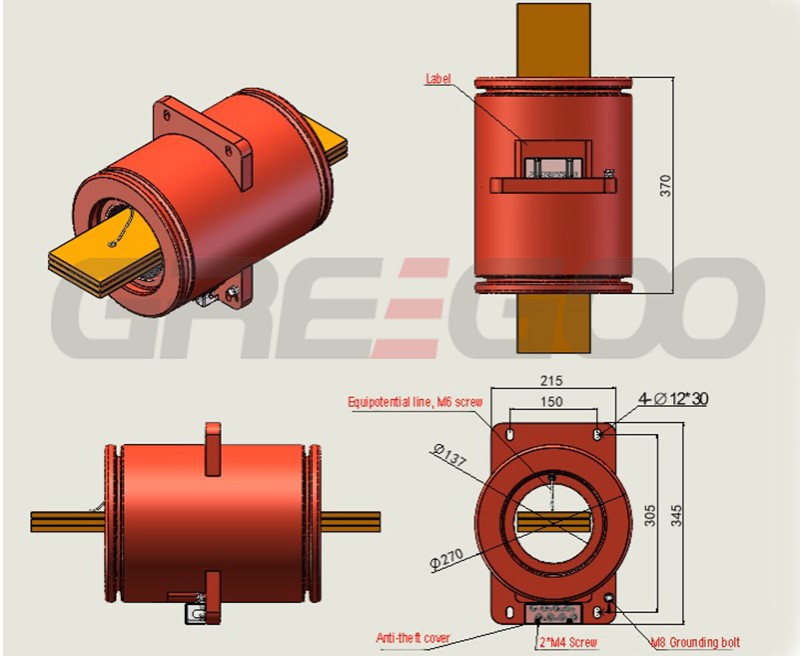

This series of current transformers feature a through-hole structure and are fully enclosed with epoxy resin by epoxy casting. They are resistant to pollution and moisture and are also suitable for use in tropical regions. The transformers do not require special maintenance and are safe and reliable. The product is equipped with grounding bolts and four installation holes for installation.
| Model | Rated primary current | Accuracy level combination | Rated output |
| LMZB-10 | 1000 | 0.2/0.5 0.2/0.5/10p30 0.2/0.5/10p30/10p30 |
30/30 20/30/30 20/30/30/30 |
| 1500 | |||
| 2000 | |||
| 3000 | |||
| 4000 | |||
| 5000 | |||
| 6000 |
