JDZX9-3D JDZX9-6D JDZX9-10D Voltage Transformer

The JDZX9-3D, JDZX9-6D, JDZX9-10D type voltage transformer is suitable for AC power systems with a rated frequency of 50Hz or 60Hz and a rated voltage of 3 to 10 kV, and is used for electric energy metering, voltage monitoring and relay protection.

• Installation site: Indoor.
• Ambient temperature: Maximum air temperature 40°C ; The minimum temperature is -5°C . The daily average temperature does not exceed 30°C.
• Atmospheric conditions: There is no severe pollution in the atmosphere.

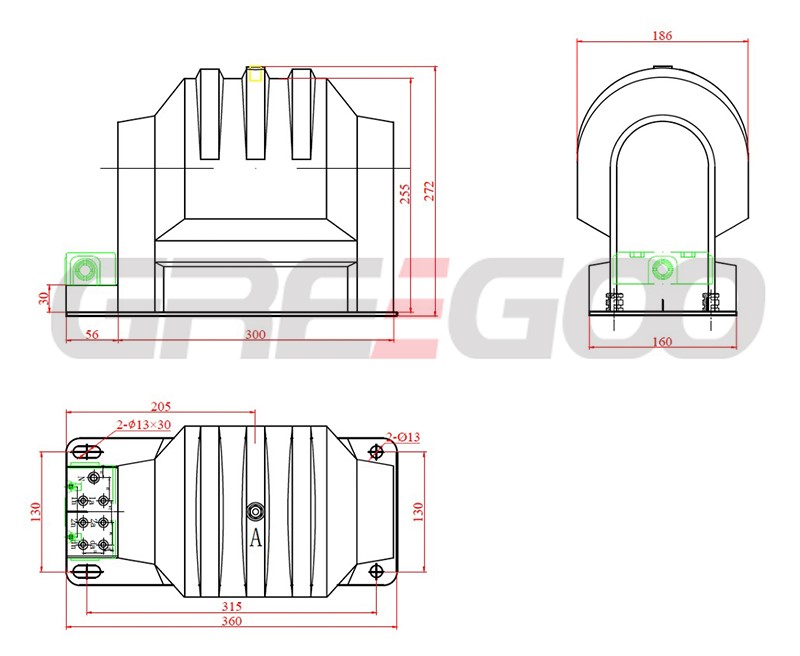

This series of voltage transformers adopt a pillar structure and are fully enclosed with epoxy resin by epoxy casting. They are resistant to pollution and moisture and are also suitable for use in tropical regions. The transformers do not require special maintenance and only need to have their surface dirt cleaned regularly. A terminal box is installed at the secondary output terminal of the transformer. There is a hole on the front and a hole on the side of the terminal box to cooperate with the output terminal for lead-out wiring, which is safe and reliable. The base plate of the product is equipped with grounding bolts and four installation holes for installation.
