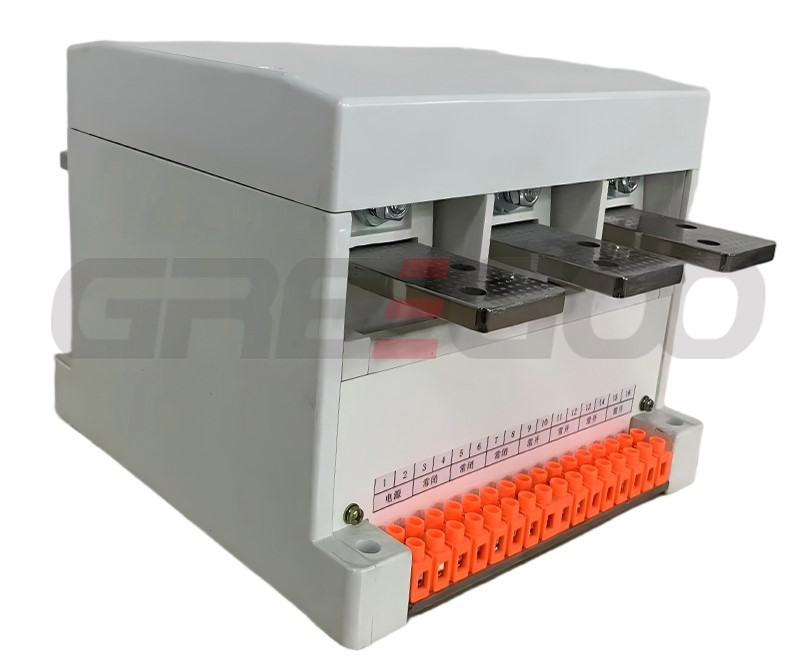

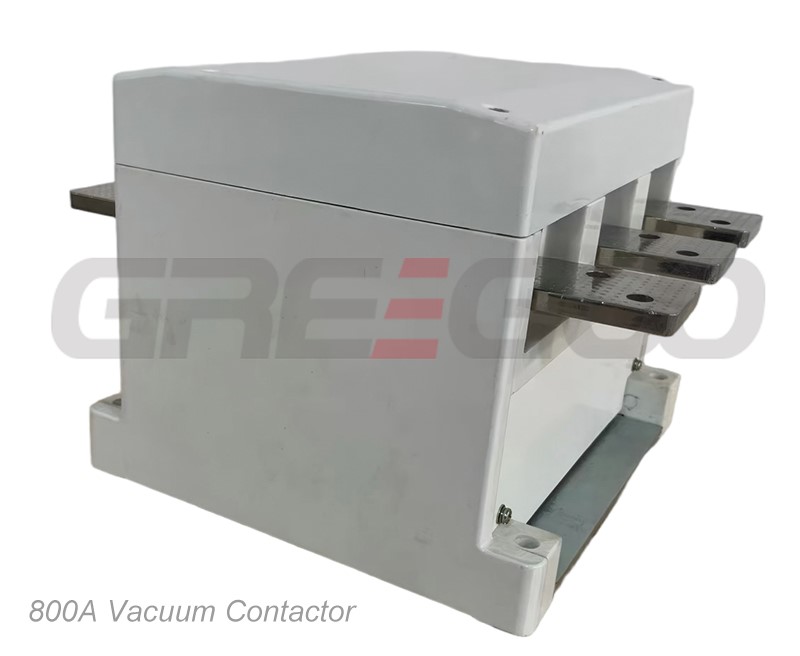

GVC6E-800A/1.5KV Vacuum Contactor
| Part numbers | GVC6A-800A/1.5KV | |
| Nominal Current | A | 800 |
| Nominal Voltage | kV | 1.5 |
| Rated Making Capacity | A | 8000 |
| Rated Breaking Capacity | A | 6400 |
| Pick-up power | VA | 1080 |
| Holding Power | W | 55 |
| Mechanical Life | Cycles | 1×106 |
| Electric Life | Cycles | 6×104 |
| Control Power Voltage | V(AC/DC) | 110/220 |
| Auxiliary contacts | 4NO 2NC | |
| Auxiliary contacts capacity | AC-15: Ue: AC380V le:0.7A DC-13: Ue: DC220V le:0.1A |
|
| Weight | Kg | 15.5 |
| Dimensions | mm | 234x204x185 |

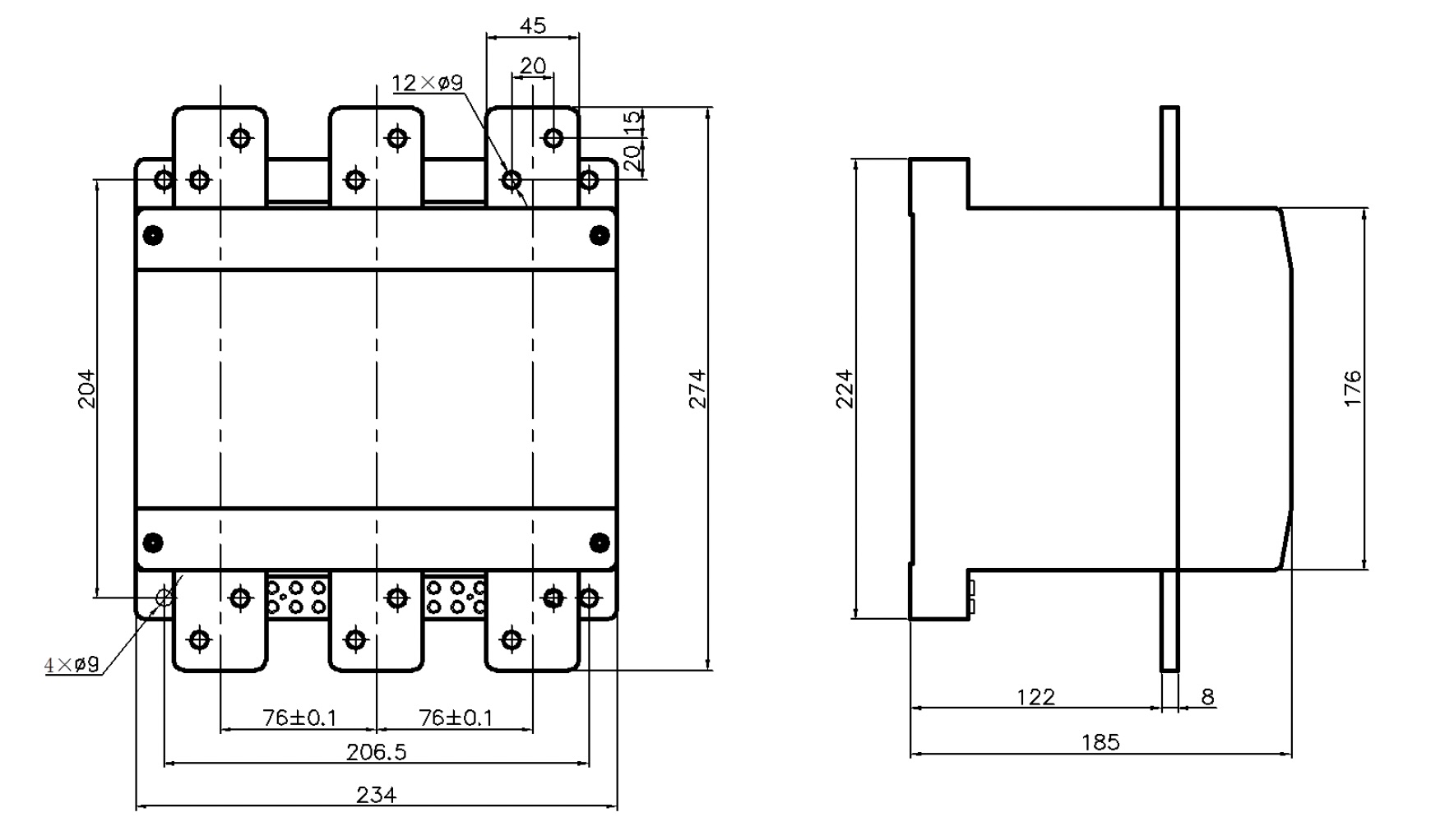

Dimensions
