GVC5C High Current Vacuum Contactors
Home Products Vacuum Contactor1.14KV Vacuum ContactorGVC5C High Current Vacuum Contactors
Single Pole

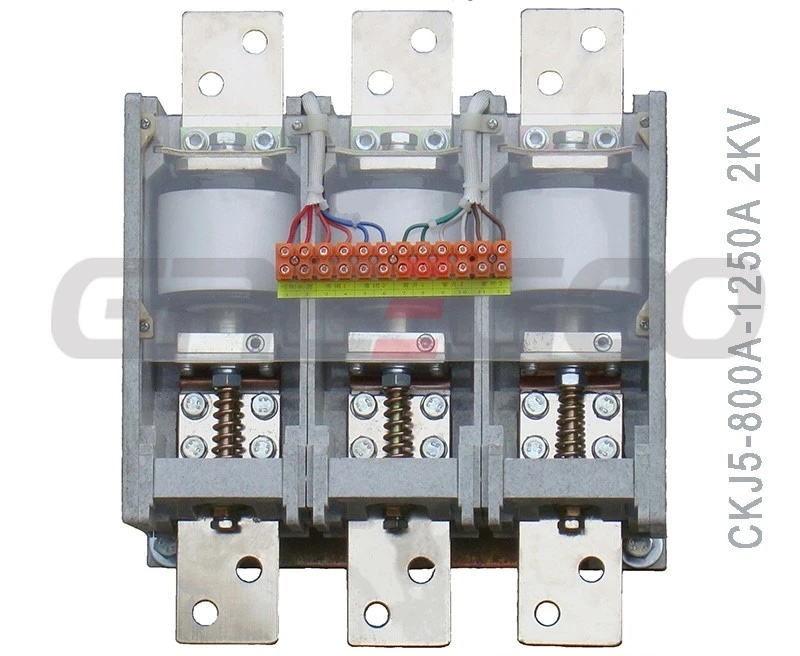

GVC5C High Current Vacuum Contactors
| Part numbers | GVC5C-800A-1.5KV-1P | GVC5C-1000A-1.5KV-1P | GVC5C-1250A-1.5KV-1P | |
| Pole number | 1P | 1P | 1P | |
| Nominal Current (Ie) | A | 800 | 1000 | 1250 |
| Nominal Voltage | kV | 1.5 (1.14-2) | 1.5 (1.14-2) | 1.5 (1.14-2) |
|
Rated withstand overload current 10s |
A | 8Ie | 8Ie | 8Ie |
| Rated Making & Breaking Capacity | A | 4Ie | 4Ie | 4Ie |
| Pick-up power | VA | 900 | 900 | 900 |
| Holding Power | W | 30 | 30 | 30 |
| Main contacts resistance | μΩ | ≤120 | ≤100 | ≤80 |
| Impulse withstand voltage (peak) | KV | 12 | 12 | 12 |
| 1 min power frequency withstand voltage (Ud) | KV | 4.2/7 | 4.2/7 | 4.2/7 |
| Closing time | ms | ≤120 | ≤120 | ≤120 |
| Opening time | ms | ≤120 | ≤120 | ≤120 |
| Opeining time for mechanical latching | ms | ≤60 | ≤60 | ≤60 |
| Control Power Voltage | V(AC/DC) | 110/220/380 | 110/220/380 | 110/220/380 |
| Auxiliary contacts | 6NO 5NC | 6NO 5NC | 6NO 5NC | |
| Auxiliary contacts capacity | AC-12/10A; AC-15/720VA;DC-12/5A | AC-12/10A; AC-15/720VA;DC-12/5A | AC-12/10A; AC-15/720VA;DC-12/5A |
2P
| Part numbers | GVC5C-800A-1.5KV-2P | GVC5C-1000A-1.5KV-2P | GVC5C-1250A-1.5KV-2P | |
| Pole number | 2P | 2P | 2P | |
| Nominal Current (Ie) | A | 800 | 1000 | 1250 |
| Nominal Voltage | kV | 1.5 (1.14-2) | 1.5 (1.14-2) | 1.5 (1.14-2) |
|
Rated withstand overload current 10s |
A | 8Ie | 8Ie | 8Ie |
| Rated Making & Breaking Capacity | A | 4Ie | 4Ie | 4Ie |
| Pick-up power | VA | 900 | 900 | 900 |
| Holding Power | W | 30 | 30 | 30 |
| Main contacts resistance | μΩ | ≤120 | ≤100 | ≤80 |
| Impulse withstand voltage (peak) | KV | 12 | 12 | 12 |
| 1 min power frequency withstand voltage (Ud) | KV | 4.2/7 | 4.2/7 | 4.2/7 |
| Closing time | ms | ≤120 | ≤120 | ≤120 |
| Opening time | ms | ≤120 | ≤120 | ≤120 |
| Opeining time for mechanical latching | ms | ≤60 | ≤60 | ≤60 |
| Control Power Voltage | V(AC/DC) | 110/220/380 | 110/220/380 | 110/220/380 |
| Auxiliary contacts | 6NO 5NC | 6NO 5NC | 6NO 5NC | |
| Auxiliary contacts capacity | AC-12/10A; AC-15/720VA;DC-12/5A | AC-12/10A; AC-15/720VA;DC-12/5A | AC-12/10A; AC-15/720VA;DC-12/5A |
3 Phase
| Part numbers | GVC5C-800A-1.5KV-3P | GVC5C-1000A-1.5KV-3P | GVC5C-1250A-1.5KV-3P | |
| Pole number | 3P | 3P | 3P | |
| Nominal Current (Ie) | A | 800 | 1000 | 1250 |
| Nominal Voltage | kV | 1.5 (1.14-2) | 1.5 (1.14-2) | 1.5 (1.14-2) |
|
Rated withstand overload current 10s |
A | 8Ie | 8Ie | 8Ie |
| Rated Making & Breaking Capacity | A | 4Ie | 4Ie | 4Ie |
| Pick-up power | VA | 900 | 900 | 900 |
| Holding Power | W | 30 | 30 | 30 |
| Main contacts resistance | μΩ | ≤120 | ≤100 | ≤80 |
| Impulse withstand voltage (peak) | KV | 12 | 12 | 12 |
| 1 min power frequency withstand voltage (Ud) | KV | 4.2/7 | 4.2/7 | 4.2/7 |
| Closing time | ms | ≤120 | ≤120 | ≤120 |
| Opening time | ms | ≤120 | ≤120 | ≤120 |
| Opeining time for mechanical latching | ms | ≤60 | ≤60 | ≤60 |
| Control Power Voltage | V(AC/DC) | 110/220/380 | 110/220/380 | 110/220/380 |
| Auxiliary contacts | 6NO 5NC | 6NO 5NC | 6NO 5NC | |
| Auxiliary contacts capacity | AC-12/10A; AC-15/720VA;DC-12/5A | AC-12/10A; AC-15/720VA;DC-12/5A | AC-12/10A; AC-15/720VA;DC-12/5A |
