Fast Recovery Epitaxial Diode Module - Dual Diode in Parallel
Home Products FRED ModuleFRED topology and applicationFast Recovery Epitaxial Diode Module - Dual Diode in Parallel
Product detail

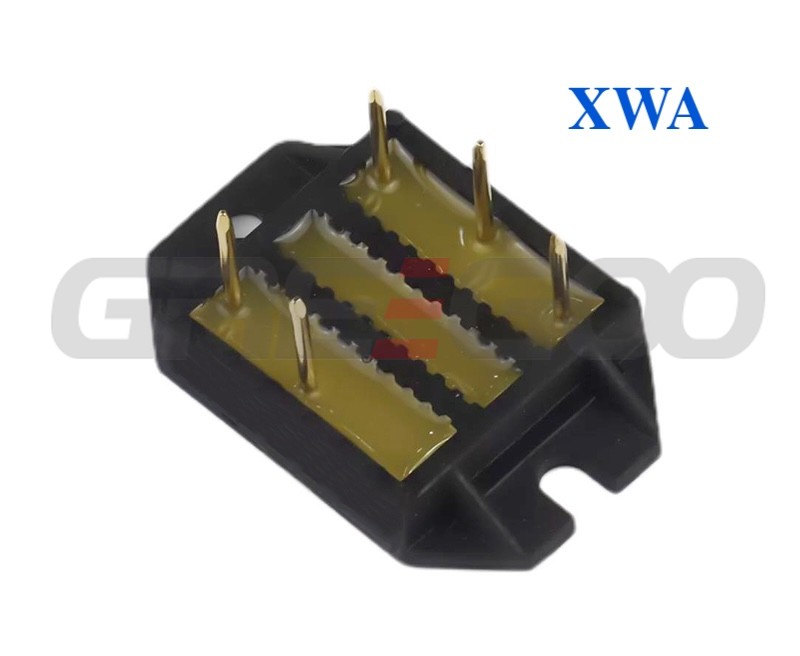

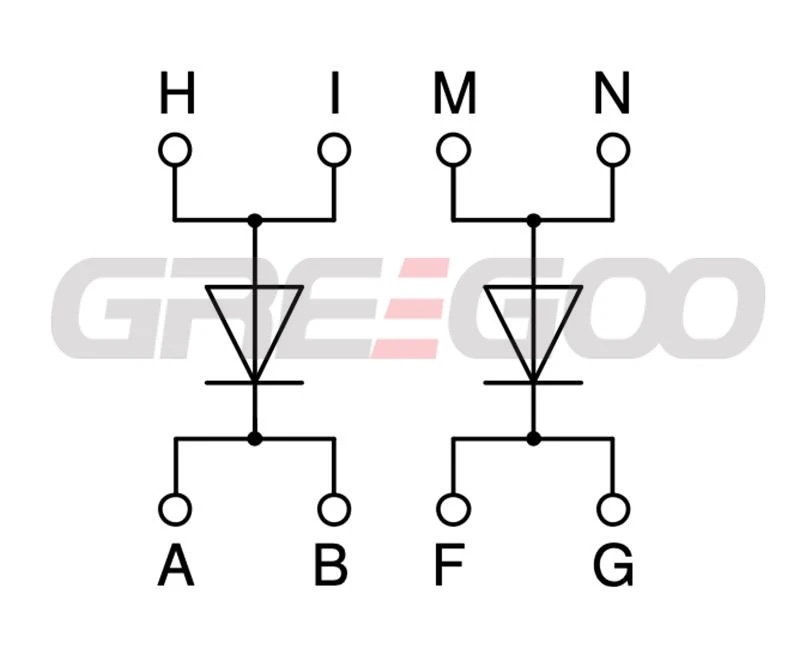

Fast Recovery Epitaxial Diode Module - Dual Diode in Parallel
| Product | VRRM | lFAV | lFSM | VFM@IFM | trr | RthJC | Housing | Equivalent | ||
| d=0.5 | 10ms Tvj=45℃ | typ | Per Chip | |||||||
| V | A | A | V | A | ns | ℃/W | IXYS | POWERSEMI | ||
| GF2X61-06P | 600 | 60 | 85 | 550 | 1.50 | 60 | 0.7 | XWA | DSEI2X61-06P | PSEI 2X61/06 |
| GF2X61-12P | 1200 | 60 | 85 | 450 | 2.15 | 60 | 0.7 | XWA | DSEI2X61-12P | PSEI 2X61/12 |
| GF2X101-06P | 600 | 100 | 85 | 1200 | 1.17 | 100 | 0.5 | XWB | DSEI2X101-06P | PSEI2X101/06 |
| GF2X101-12P | 1200 | 100 | 85 | 900 | 1.61 | 100 | 0.5 | XWB | DSEI2X101-12P | PSEI2X101/12 |
| GF2X161-06P | 600 | 150 | 85 | 1200 | 1.40 | 150 | 0.29 | XWB | DSEI2X161-06P | PSEI2X161/06 |
| GF2X161-12P | 1200 | 150 | 85 | 1200 | 1.75 | 150 | 0.29 | XWB | DSEI2X161-12P | PSEI2X161/12 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
