Product Details

6RCB Electronic and Magnetic type RCBO

Model Number		6RCB
Tripping Mode		ELECTRONIC TYPE & MAGNETIC TYPE
Pole No.	Pole	2P = 1P N / 4P = 3P N
Standard Conformity		IEC 61009-1
Tripping Characteristic		B/C
Rated Current (In)	A	6, 10, 16, 20, 25, 32, 40
Sensitivity (I △ n)	mA	30, 100, 300
Residual Tripping Current Range		0.5I △ n~1I △ n
Rated Voltage (Un)	Vac	230/240
Rated Insulation Voltage (Ui)	V	660
Rated Frequency	Hz	50/60
Type		AC/A
Tripping Time	S	≤0.1
Shortcircuit Withstand Capacity	kA	6
Ambient Temperature	oC	-25 to 40
Electrical Mechanical Operation	cycles	4000
Mounting		Din Rail (35 * 7.5) mm
Degree of Protection		IP 20
Terminal Capacity (max)	mm2	10~16
Connection Terminals		Screw Terminals 2.0Nm
Certificate		CE

MODEL SELECTION:

30mA	*100mA*	Rated Current (A)	Pole No.	TYPE	TRIPPING

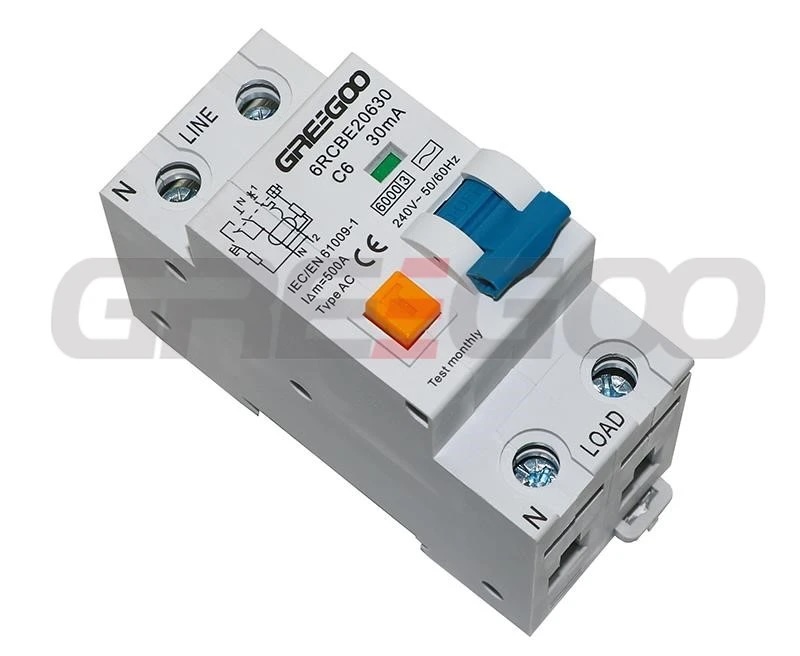

6RCBE20630	6RCBE206100	6	2	AC	ELECTRONIC
6RCBE21030	6RCBE210100	10	2	AC	ELECTRONIC
6RCBE21630	6RCBE216100	16	2	AC	ELECTRONIC
6RCBE22030	6RCBE220100	20	2	AC	ELECTRONIC
6RCBE22530	6RCBE225100	25	2	AC	ELECTRONIC
6RCBE23230	6RCBE232100	32	2	AC	ELECTRONIC
6RCBE24030	6RCBE240100	40	2	AC	ELECTRONIC
6RCBE40630	6RCBE406100	6	4	AC	ELECTRONIC
6RCBE41030	6RCBE410100	10	4	AC	ELECTRONIC
6RCBE41630	6RCBE416100	16	4	AC	ELECTRONIC
6RCBE42030	6RCBE420100	20	4	AC	ELECTRONIC
6RCBE42530	6RCBE425100	25	4	AC	ELECTRONIC
6RCBE43230	6RCBE432100	32	4	AC	ELECTRONIC
6RCBE44030	6RCBE440100	40	4	AC	ELECTRONIC
6RCBE20630A	6RCBE206100A	6	2	A	ELECTRONIC
6RCBE21030A	6RCBE210100A	10	2	A	ELECTRONIC
6RCBE21630A	6RCBE216100A	16	2	A	ELECTRONIC
6RCBE22030A	6RCBE220100A	20	2	A	ELECTRONIC
6RCBE22530A	6RCBE225100A	25	2	A	ELECTRONIC
6RCBE23230A	6RCBE232100A	32	2	A	ELECTRONIC
6RCBE24030A	6RCBE240100A	40	2	A	ELECTRONIC
6RCBE40630A	6RCBE406100A	6	4	A	ELECTRONIC
6RCBE41030A	6RCBE410100A	10	4	A	ELECTRONIC
6RCBE41630A	6RCBE416100A	16	4	A	ELECTRONIC
6RCBE42030A	6RCBE420100A	20	4	A	ELECTRONIC
6RCBE42530A	6RCBE425100A	25	4	A	ELECTRONIC
6RCBE43230A	6RCBE432100A	32	4	A	ELECTRONIC

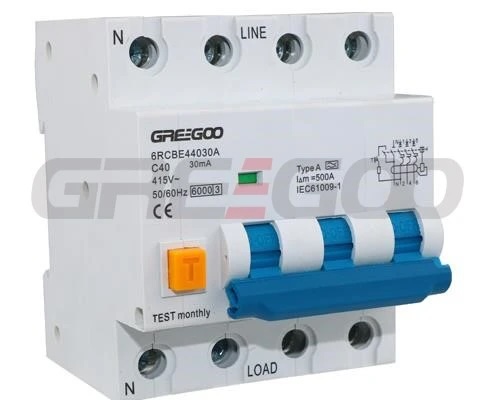

6RCBE44030A	6RCBE440100A	40	4	A	ELECTRONIC
6RCBM20630	6RCBM206100	6	2	AC	MAGNETIC
6RCBM21030	6RCBM210100	10	2	AC	MAGNETIC
6RCBM21630	6RCBM216100	16	2	AC	MAGNETIC
6RCBM22030	6RCBM220100	20	2	AC	MAGNETIC
6RCBM22530	6RCBM225100	25	2	AC	MAGNETIC
6RCBM23230	6RCBM232100	32	2	AC	MAGNETIC
6RCBM24030	6RCBM240100	40	2	AC	MAGNETIC
6RCBM40630	6RCBM406100	6	4	AC	MAGNETIC
6RCBM41030	6RCBM410100	10	4	AC	MAGNETIC
6RCBM41630	6RCBM416100	16	4	AC	MAGNETIC
6RCBM42030	6RCBM420100	20	4	AC	MAGNETIC
6RCBM42530	6RCBM425100	25	4	AC	MAGNETIC
6RCBM43230	6RCBM432100	32	4	AC	MAGNETIC
6RCBM44030	6RCBM440100	40	4	AC	MAGNETIC
6RCBM20630A	6RCBM206100A	6	2	A	MAGNETIC
6RCBM21030A	6RCBM210100A	10	2	A	MAGNETIC
6RCBM21630A	6RCBM216100A	16	2	A	MAGNETIC
6RCBM22030A	6RCBM220100A	20	2	A	MAGNETIC
6RCBM22530A	6RCBM225100A	25	2	A	MAGNETIC
6RCBM23230A	6RCBM232100A	32	2	A	MAGNETIC

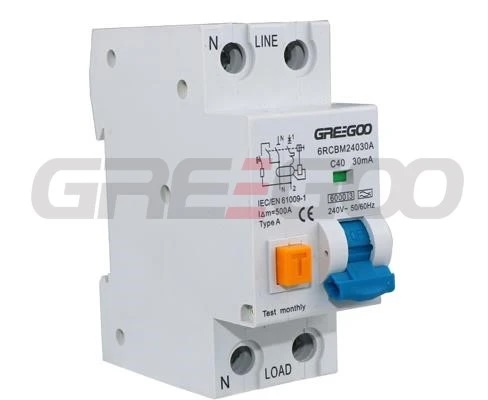

6RCBM24030A	6RCBM240100A	40	2	A	MAGNETIC
6RCBM40630A	6RCBM406100A	6	4	A	MAGNETIC
6RCBM41030A	6RCBM410100A	10	4	A	MAGNETIC
6RCBM41630A	6RCBM416100A	16	4	A	MAGNETIC
6RCBM42030A	6RCBM420100A	20	4	A	MAGNETIC
6RCBM42530A	6RCBM425100A	25	4	A	MAGNETIC
6RCBM43230A	6RCBM432100A	32	4	A	MAGNETIC
6RCBM44030A	6RCBM440100A	40	4	A	MAGNETIC
