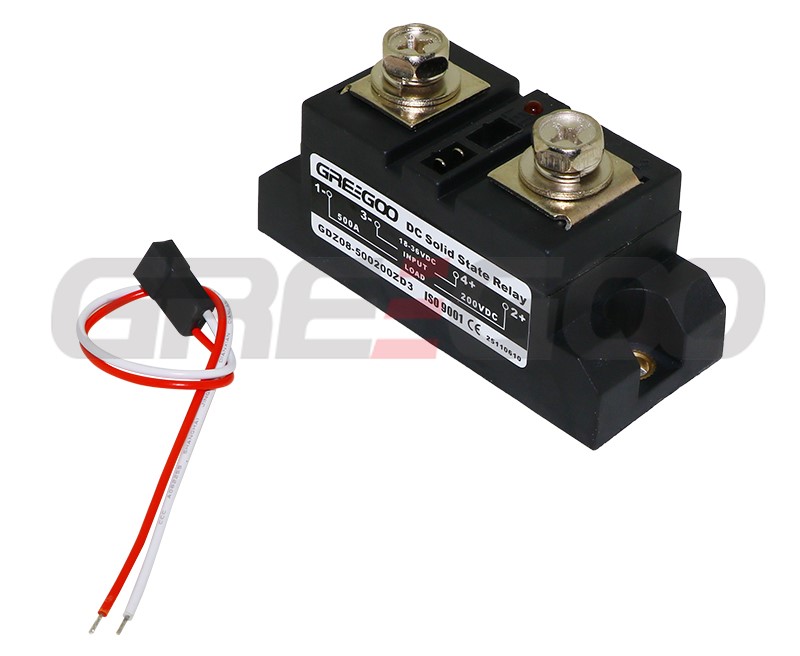

SSR dc to dc 500A 200V
| Name | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay |
| Type | Standard | Standard | Standard | Fast switching |
| Part numbers | GDZ09-500200D1 | GDZ09-500200D2 | GDZ09-500200D4 | GDZ09C-500200D3 |
| Control voltage | 12-15VDC | 18-36VDC | 12-60VDC | 4-32VDC |
| Control power supply | / | / | / | 12/24VDC |
| Max.switching current per phase | 500A | 500A | 500A | 500A |
| Max.switching voltage | 0-200VDC | 0-200VDC | 0-200VDC | 0-200VDC |
| Switching time | ≤5mS | ≤5mS | ≤8mS | ≤0.1mS |
| Output method | Mosfet DC output | Mosfet DC output | Mosfet DC output | Mosfet DC output |
| Mounting | Panel mount | Panel mount | Panel mount | Panel mount |
| Contacts configuration | 1NO | 1NO | 1NO | 1NO |
| Manufacturer | Greegoo | Greegoo | Greegoo | Greegoo |
| Certificates | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS |
| Note | Part numbers with "L" for over current protection, e.g. GDZ09-500200D2L, Part numbers with "T" for over temperature protection, e.g. GDZ09-500200D2T | |||
