4P GLC1-D Magnetic Contactors
| Standard power ratings of 3-phase motors 50/60 Hz in category AC-3 |
Rated operational current in AC-3 up to 440V (A) |
Rated operational current in AC-1 up to 440V (A) |
Rated non-condutive voltage (V) |
Instantaneous auxiliary contacts |
Reference | ||||||
| 220V/230V (kW) | 380V/400V (kW) | 415V (kW) | 440V (kW) | 500V (kW) | 660V/690V (kW) | NO | NC | ||||
| 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | 9 | 25 | 690 | 4 | - | GLC1-D09004 |
| 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | 9 | 25 | 690 | 2 | 2 | GLC1-D09008 |
| 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 12 | 25 | 690 | 4 | - | GLC1-D12004 |
| 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 12 | 25 | 690 | 2 | 2 | GLC1-D12008 |

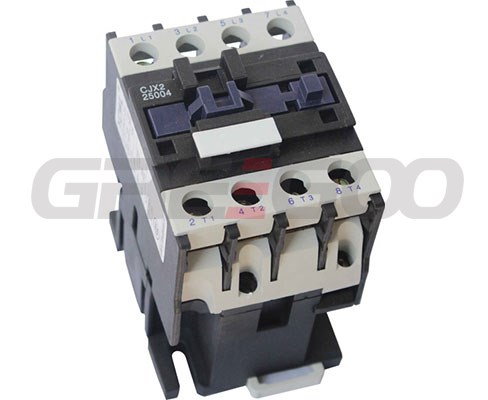

| 5.5 | 11 | 11 | 11 | 15 | 15 | 25 | 40 | 690 | 4 | - | GLC1-D25004 |
| 5.5 | 11 | 11 | 11 | 15 | 15 | 25 | 40 | 690 | 2 | 2 | GLC1-D25008 |
| 11 | 18.5 | 22 | 22 | 30 | 30 | 40 | 60 | 690 | 4 | - | GLC1-D40004 |
| 11 | 18.5 | 22 | 22 | 30 | 30 | 40 | 60 | 690 | 2 | 2 | GLC1-D40008 |
| 15 | 22 | 30 | 30 | 33 | 33 | 50 | 80 | 690 | 4 | - | GLC1-D50004 |
| 15 | 22 | 30 | 30 | 33 | 33 | 50 | 80 | 690 | 2 | 2 | GLC1-D50008 |

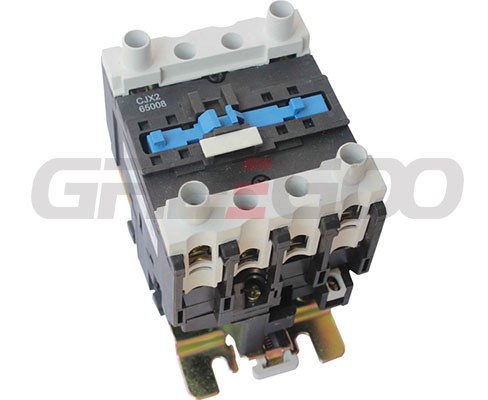

| 18.5 | 30 | 37 | 37 | 37 | 37 | 65 | 80 | 690 | 4 | - | GLC1-D65004 |
| 18.5 | 30 | 37 | 37 | 37 | 37 | 65 | 80 | 690 | 2 | 2 | GLC1-D65008 |
| 22 | 37 | 45 | 45 | 45 | 45 | 80 | 125 | 690 | 4 | - | GLC1-D80004 |
| 22 | 37 | 45 | 45 | 45 | 45 | 80 | 125 | 690 | 2 | 2 | GLC1-D80008 |
| 25 | 45 | 45 | 45 | 45 | 45 | 95 | 125 | 690 | 4 | - | GLC1-D95004 |

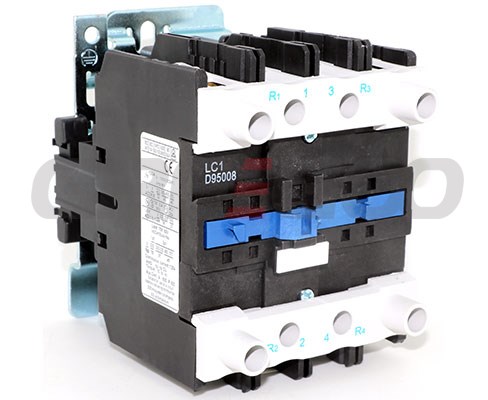

| 25 | 45 | 45 | 45 | 45 | 45 | 95 | 125 | 690 | 2 | 2 | GLC1-D95008 |
