Solid state relay dc to dc 400A 100V
| Name | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay |
| Type | Standard | Standard | Standard | Fast switching |
| Part numbers | GDZ08-400100D1 | GDZ08-400100D2 | GDZ08-400100D4 | GDZ08C-400100D3 |
| Control voltage | 12-15VDC | 18-36VDC | 12-60VDC | 4-32VDC |
| Control power supply | / | / | / | 12/24VDC |
| Max.switching current per phase | 400A | 400A | 400A | 400A |
| Max.switching voltage | 0-100VDC | 0-100VDC | 0-100VDC | 0-100VDC |
| Switching time | ≤5mS | ≤5mS | ≤8mS | ≤0.1mS |
| Output method | Mosfet DC output | Mosfet DC output | Mosfet DC output | Mosfet DC output |
| Mounting | Panel mount | Panel mount | Panel mount | Panel mount |
| Contacts configuration | 1NO | 1NO | 1NO | 1NO |
| Manufacturer | Greegoo | Greegoo | Greegoo | Greegoo |
| Certificates | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS |
| Note | Part numbers with "L" for over current protection, e.g. GDZ08-400100D2L, Part numbers with "T" for over temperature protection, e.g. GDZ08-400100D2T | |||
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products
Solid state relay dc to dc 2000A 100V
2000A 100V GDZ09-2000100 GDZ09C-2000100

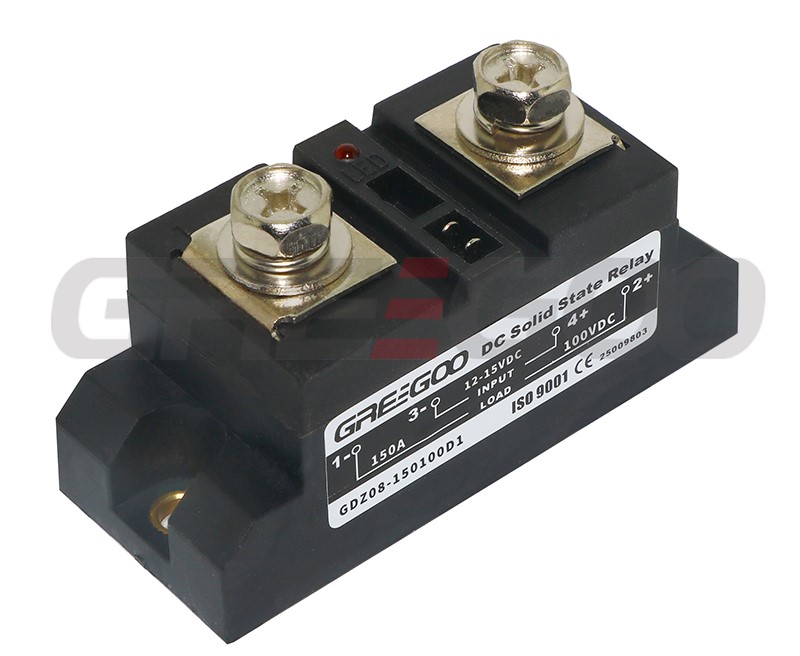

Solid state relay dc to dc 150A 100V
150A 100V GDZ08-150100 GDZ08C-150100

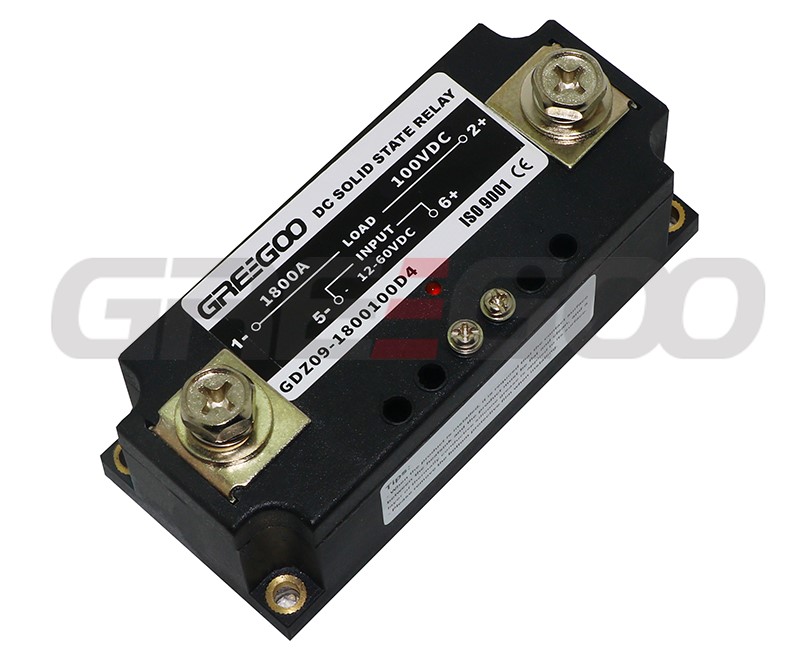

Solid state relay dc to dc 1800A 100V
1800A 100V GDZ09-1800100 GDZ09C-1800100

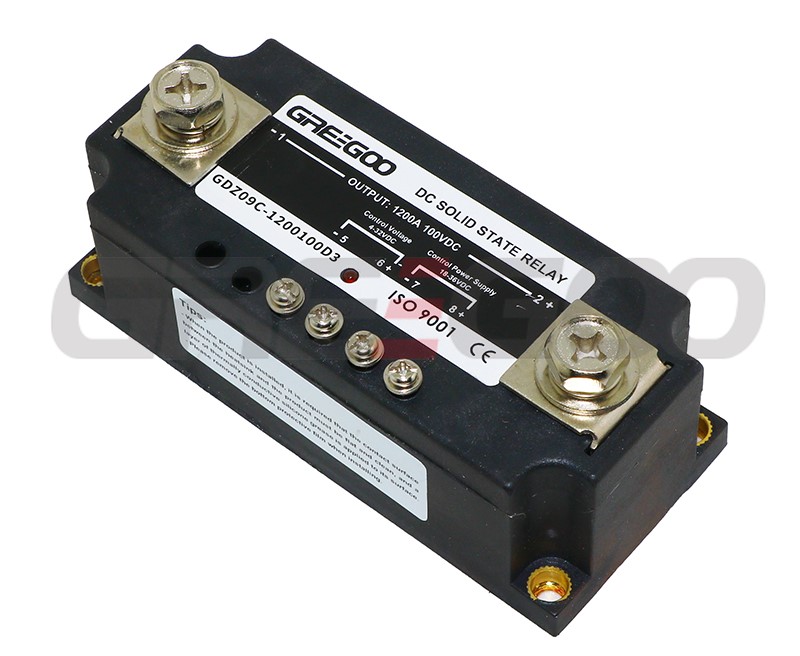

Solid state relay dc to dc 1200A 100V
