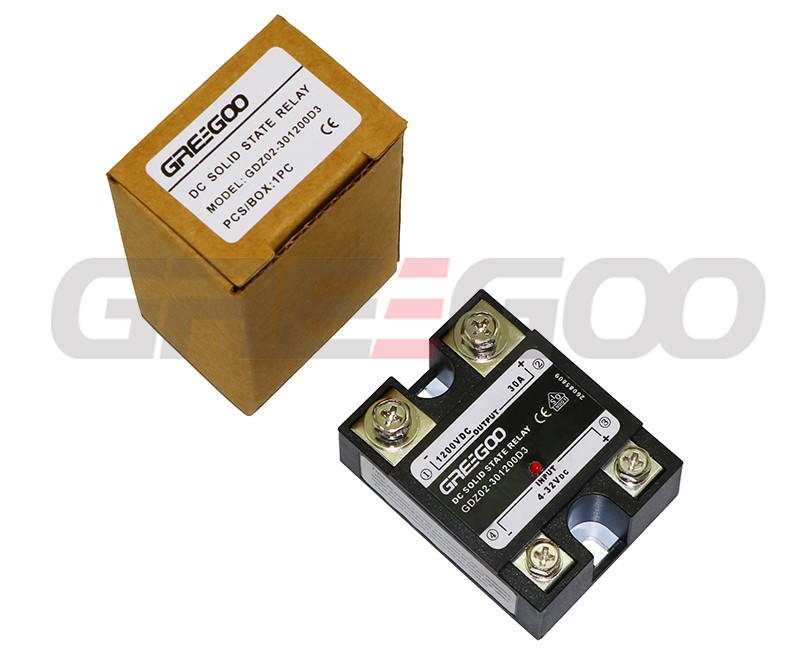

DC SSR 30A 1200Vdc
| Name | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay |
| Type | Standard | Standard | Fast switching |
| Part numbers | GDZ02-301200D3 | GDZ02-301200D4 | GDZ02C-301200D3 |
| Control voltage | 4-32VDC | 12-60VDC | 4-32VDC |
| Control power supply | / | / | 12/24VDC |
| Max.switching current per phase | 30A | 30A | 30A |
| Max.switching voltage | 0-1200VDC | 0-1200VDC | 0-1200VDC |
| Switching time | ≤1mS | ≤8mS | ≤0.03mS |
| Output method | IGBT DC output | IGBT DC output | IGBT DC output |
| Mounting | Panel mount | Panel mount | Panel mount |
| Contacts configuration | 1NO | 1NO | 1NO |
| Manufacturer | Greegoo | Greegoo | Greegoo |
| Certificates | CE, RoHS | CE, RoHS | CE, RoHS |
| Note | Part numbers with "L" for over current protection, e.g. GDZ02-301200D3L, Part numbers with "T" for over temperature protection, e.g. GDZ02-301200D3T | ||
