Product details

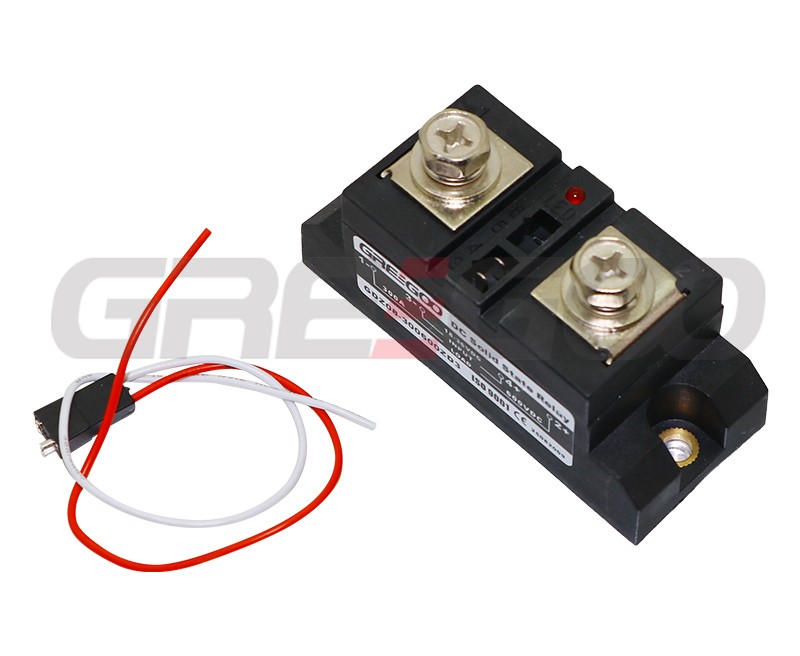

DC ssr relay 300A 600V
| Name | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay |
| Type | Standard | Standard | Standard | Fast switching |
| Part numbers | GDZ08-300600D1 | GDZ08-300600D2 | GDZ08-300600D4 | GDZ08C-300600D3 |
| Control voltage | 12-15VDC | 18-36VDC | 12-60VDC | 4-32VDC |
| Control power supply | / | / | / | 12/24VDC |
| Max.switching current per phase | 300A | 300A | 300A | 300A |
| Max.switching voltage | 600VDC | 600VDC | 600VDC | 600VDC |
| Switching time | ≤5mS | ≤5mS | ≤8mS | ≤0.1mS |
| Output method | IGBT DC output | IGBT DC output | IGBT DC output | IGBT DC output |
| Mounting | Panel mount | Panel mount | Panel mount | Panel mount |
| Contacts configuration | 1NO | 1NO | 1NO | 1NO |
| Manufacturer | Greegoo | Greegoo | Greegoo | Greegoo |
| Certificates | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS |
| Note | Part numbers with "L" for over current protection, e.g. GDZ08-300600D2L, Part numbers with "T" for over temperature protection, e.g. GDZ08-300600D2T | |||
