Product details

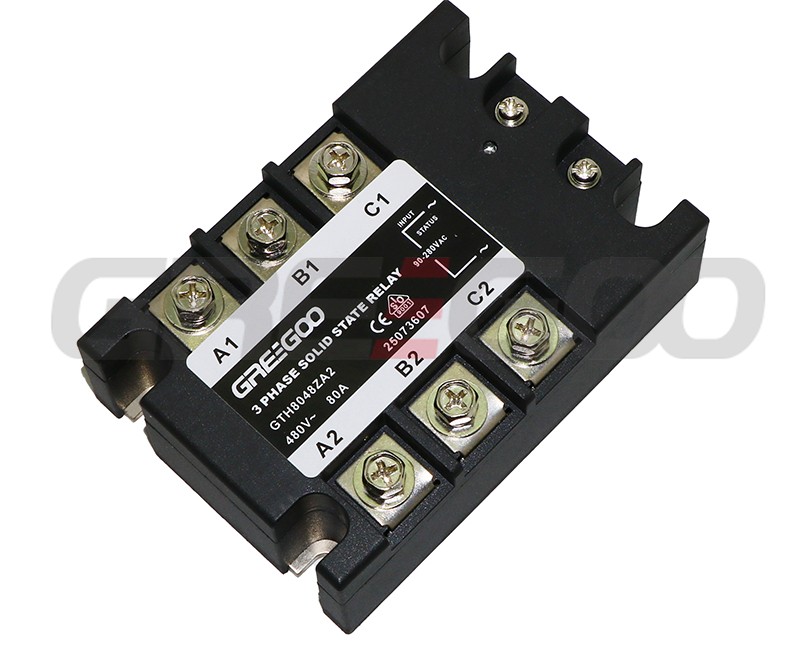

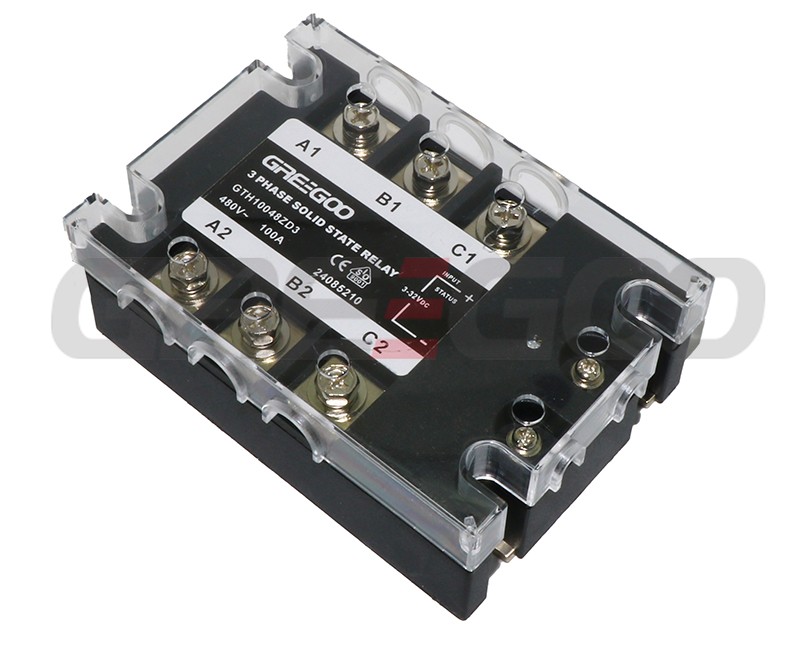

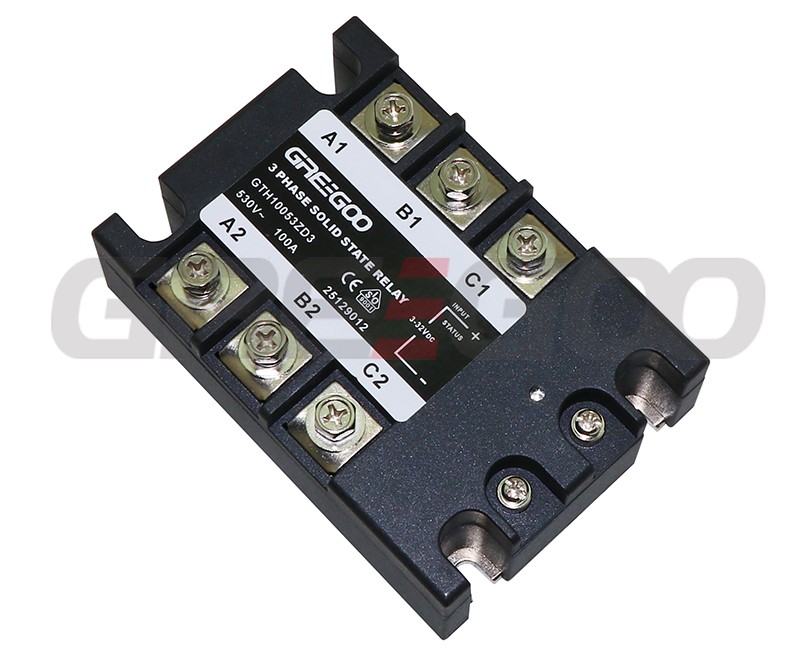

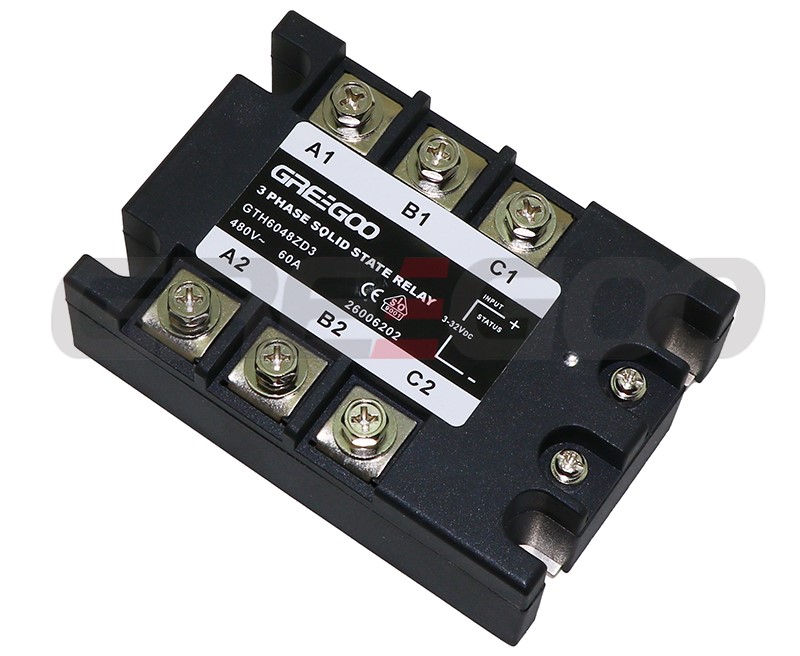

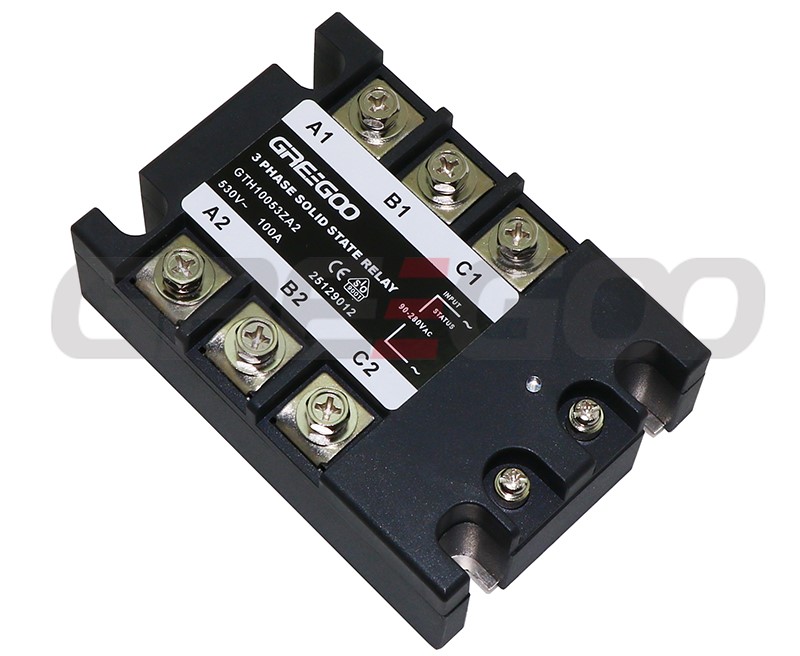

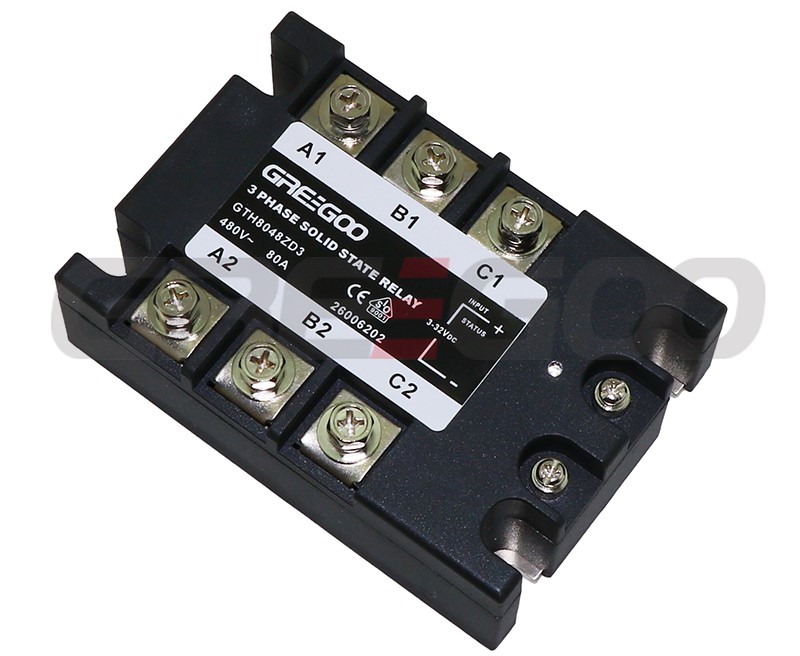

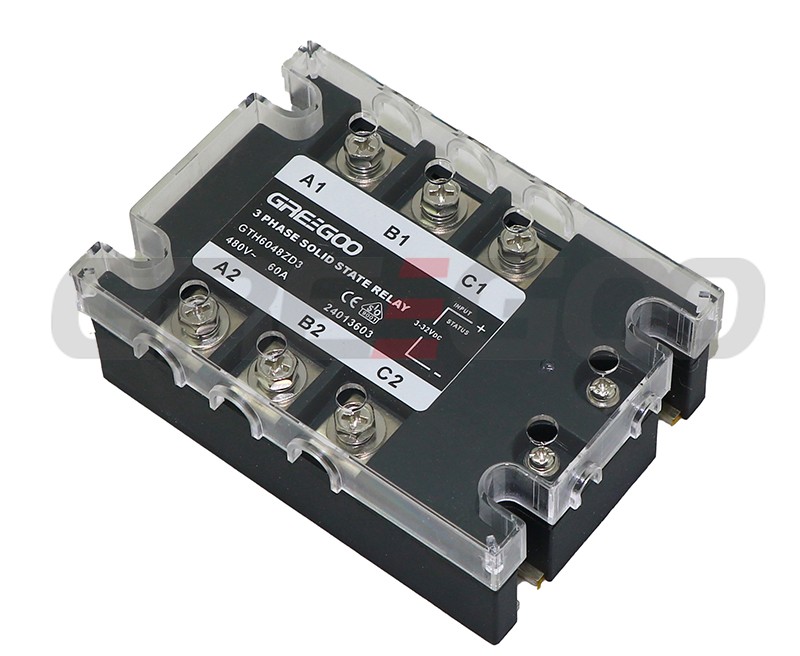

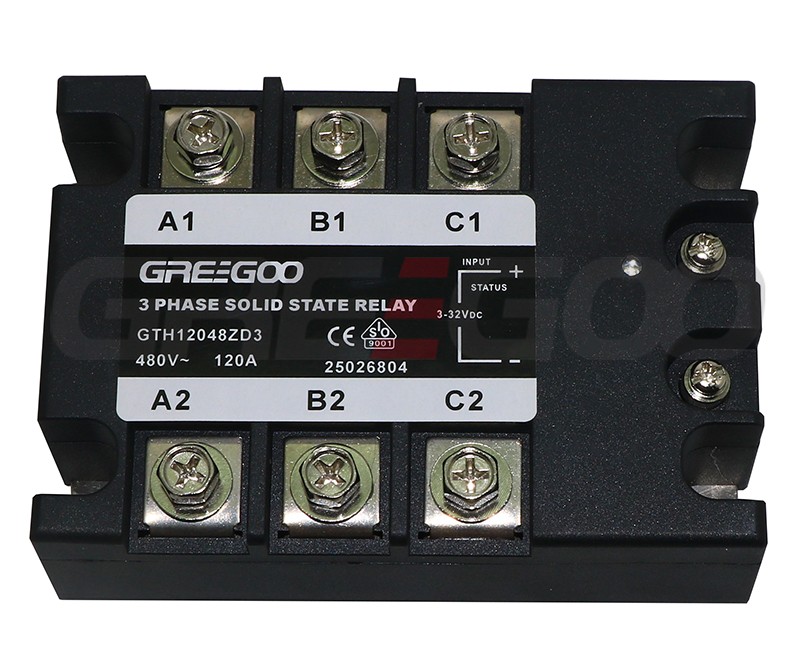

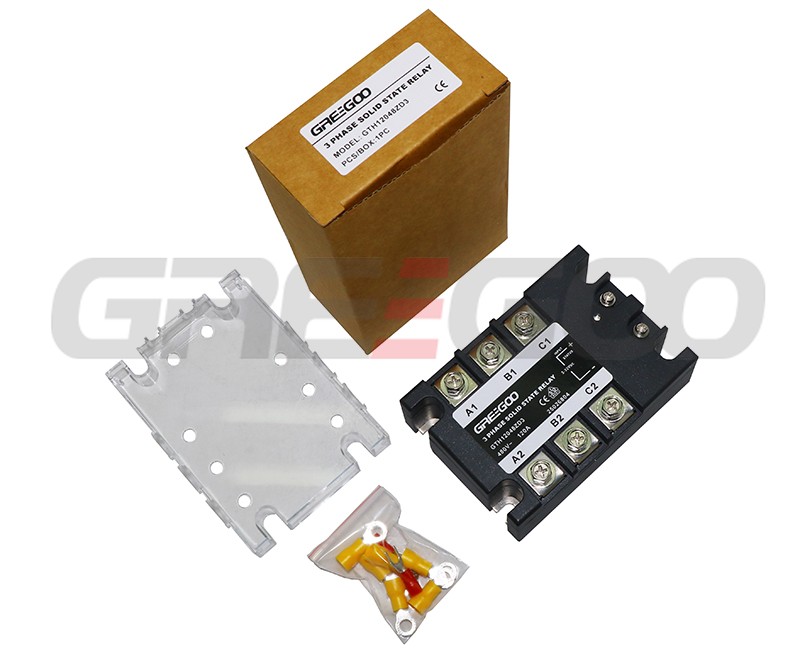

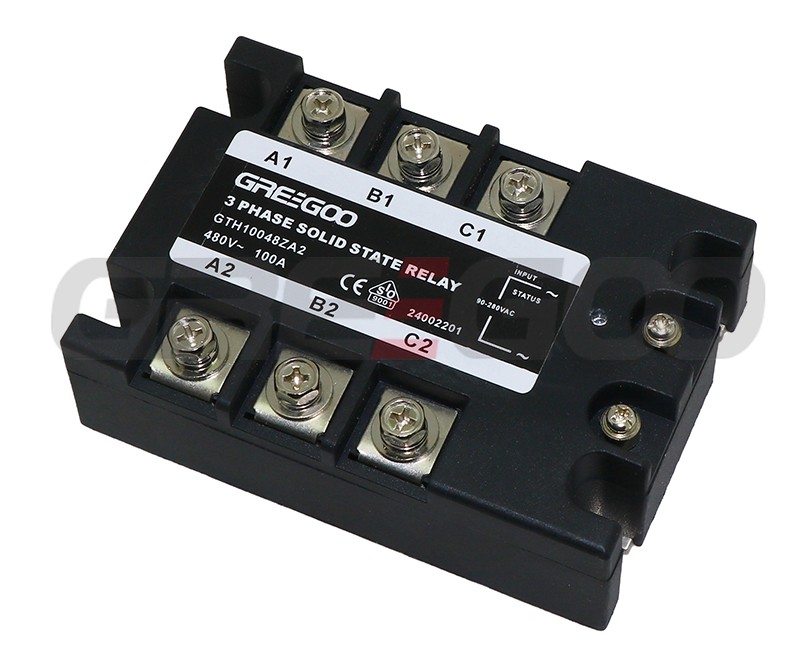

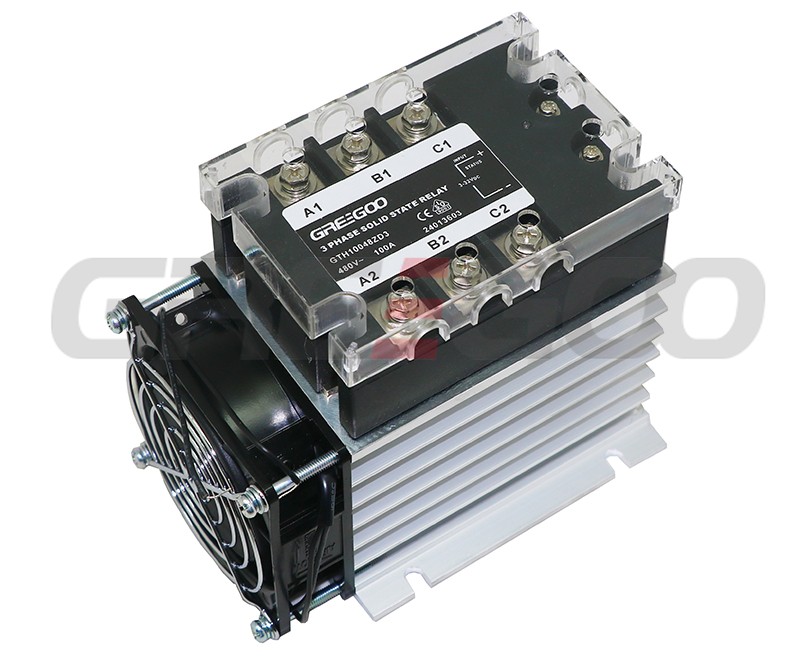

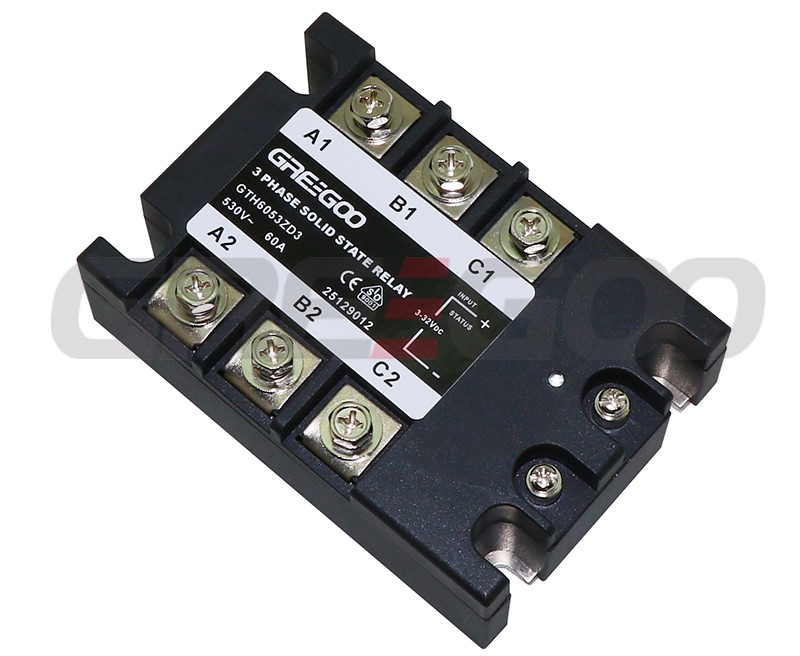

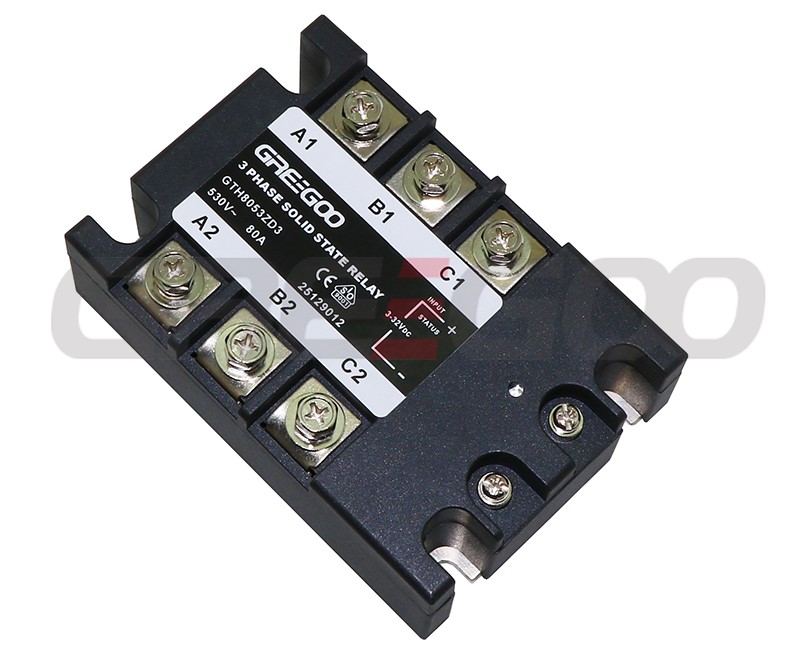

3 phase solid state relay 40A 60A 80A 100A 120A

GTH series three phase Solid State Relays is used three phase loads. SCR Output. GTH series is Dual SCR Power Hybrid technology provides highly efficient thermal management for greatly increased cyclic life.

Feature:
- Three phase Solid State Relays
- Rated operational current 3X40, 3X60, 3X80, 3X100 and 3X120 Amps.
- High voltage (1400 Vpk) versions for 530 Vrms service.
- Both “Zero Voltage” & phase controllable “Random Switching” versions.
- Input Voltage Range 4 to 16 Vdc, 4 to 32 Vdc, 90 to 250Vac.
- 2500 Vrms Optical Isolation.(input/output)
- LED-indication for control input.

Symbo Meaning

GT1234

G - Greegoo

T - Three phase

1 - 10-10A, 15-15A, 25-25A, 40-40A

2 - 48-480V

3 - Z-zero control, R-random control

4 - D1-4-16Vdc, D3-4-32Vdc A2-90-250Vac

For example: GT4048ZD3, 3 phase, 40A, 480Vac, 3-32Vdc control

Voltage	Control	Operational current
Voltage	voltage	40 Amp	60 Amp	80 Amp
480 VAC	4~16 Vdc	GTH4048ZD1	GTH6048ZD1	GTH8048ZD1
"Zero Voltage"	4~32 Vdc	GTH4048ZD3	GTH6048ZD3	GTH8048ZD3
	90~250Vac	GTH4048ZA2	GTH6048ZA2	GTH8048ZA2
530 VAC	4~16 Vdc	GTH4053ZD1	GTH6053ZD1	GTH8053ZD1
"Zero Voltage"	4~32 Vdc	GTH4053ZD3	GTH6053ZD3	GTH8053ZD3
	90~250Vac	GTH4053ZA2	GTH6053ZA2	GTH8053ZA2
480 VAC Random	4~16 Vdc	GTH4048RD1	GTH6048RD1	GTH8048RD1
	4~32 Vdc	GTH4048RD3	GTH6048RD3	GTH8048RD3
	90~250Vac	GTH4048RA2	GTH6048RA2	GTH8048RA2
530 VAC Random	4~16 Vdc	GTH4053RD1	GTH6053RD1	GTH8053RD1
	4~32 Vdc	GTH4053RD3	GTH6053RD3	GTH8053RD3
	90~250Vac	GTH4053RA2	GTH6053RA2	GTH8053RA2

Voltage	Control	Operational current
Voltage	voltage	80 Amp	100 Amp	120 Amp
480 VAC	4~16 Vdc	GTH8048ZD1	GTH10048ZD1	GTH12048ZD1
"Zero Voltage"	4~32 Vdc	GTH8048ZD3	GTH10048ZD3	GTH12048ZD3
	90~250Vac	GTH8048ZA2	GTH10048ZA2	GTH12048ZA2
530 VAC	4~16 Vdc	GTH8053ZD1	GTH10053ZD1	GTH12053ZD1
"Zero Voltage"	4~32 Vdc	GTH8053ZD3	GTH10053ZD3	GTH12053ZD3
	90~250Vac	GTH8053ZA2	GTH10053ZA2	GTH12053ZA2
480 VAC Random	4~16 Vdc	GTH8048RD1	GTH10048RD1	GTH12048RD1
	4~32 Vdc	GTH8048RD3	GTH10048RD3	GTH12048RD3
	90~250Vac	GTH8048RA2	GTH10048RA2	GTH12048RA2
530 VAC Random	4~16 Vdc	GTH8053RD1	GTH10053RD1	GTH12053RD1
	4~32 Vdc	GTH8053RD3	GTH10053RD3	GTH12053RD3
	90~250Vac	GTH8053RA2	GTH10053RA2	GTH12053RA2
