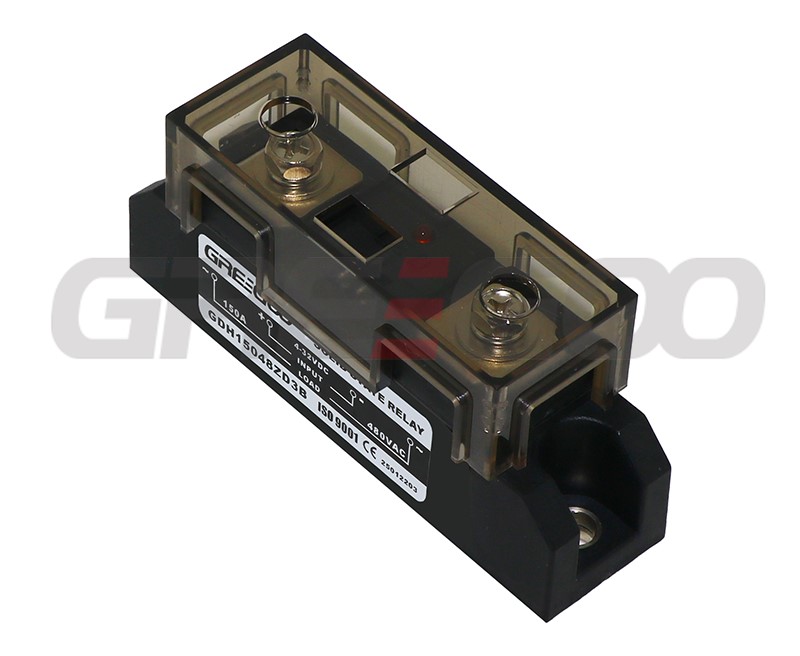

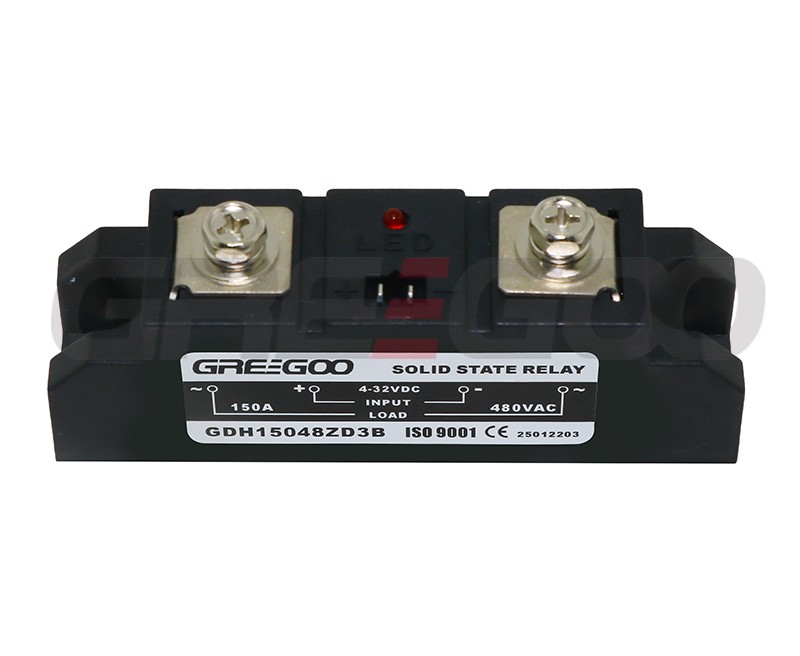

GDH15048ZD3B SSR

Home Products Solid State Relay (GDH...B series)120A/150A Solid State RelayGDH15048ZD3B SSR

Product details

GDH15048ZD3B SSR

Name	Solid state relay SSR
Type	GDH...B
Phase	Single phase
Part numbers	GDH15048ZD3B
Input voltage	4-32V
Input voltage type	DC
Rated output current	150A
Rated output voltage	48-480V
Output voltage type	AC
Switching type	Zero crossing
Output method	SCR output
Mounting	Panel mount
Contacts configuration	SPST NO
Manufacturer	Greegoo
Certificates	CE, RoHS
