GDH20048ZD3B SSR
Home Products Solid State Relay (GDH...B series)200A/250A Solid State RelayGDH20048ZD3B SSR
Product details

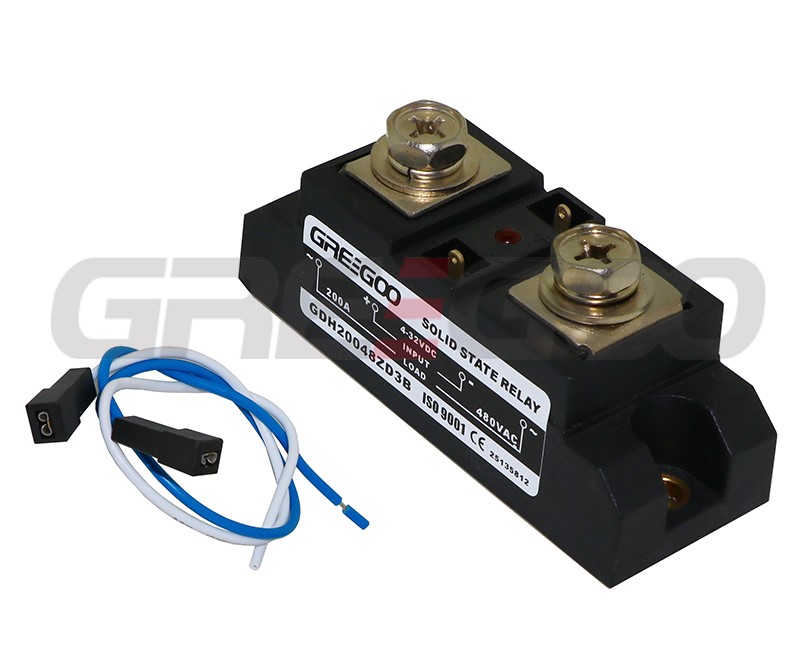

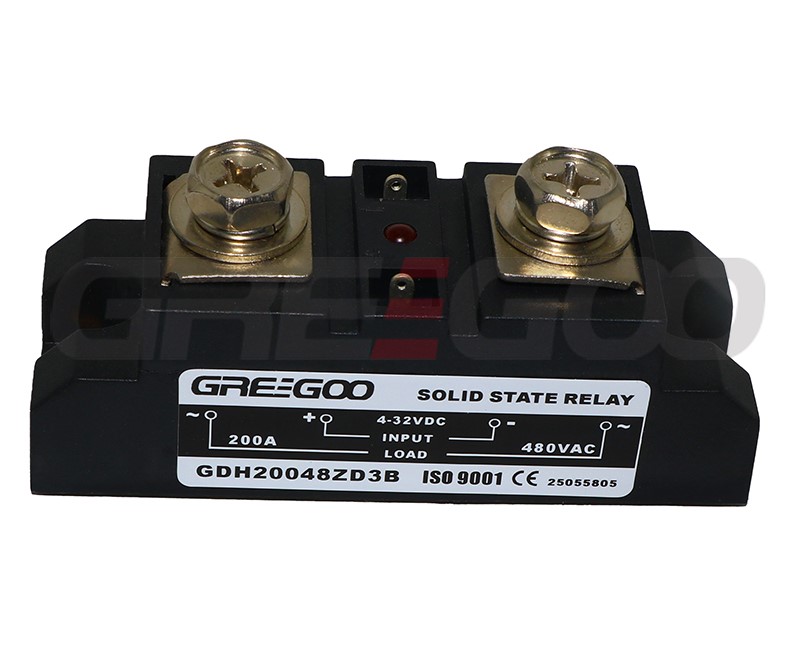

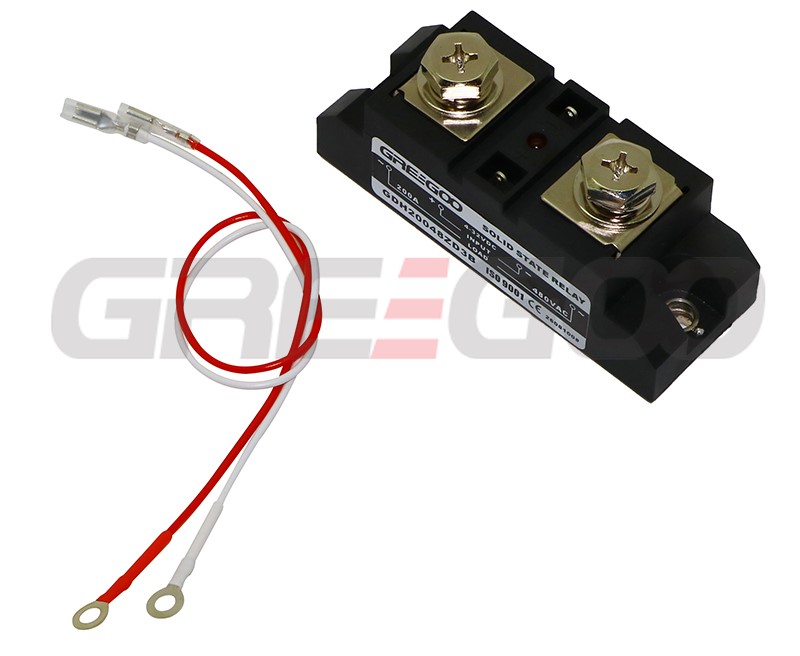

GDH20048ZD3B SSR
| Name | Solid state relay SSR |
| Type | GDH...B |
| Phase | Single phase |
| Part numbers | GDH20048ZD3B |
| Input voltage | 4-32V |
| Input voltage type | DC |
| Rated output current | 200A |
| Rated output voltage | 48-480V |
| Output voltage type | AC |
| Switching type | Zero crossing |
| Output method | SCR output |
| Mounting | Panel mount |
| Contacts configuration | SPST NO |
| Manufacturer | Greegoo |
| Certificates | CE, RoHS |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products
GDH25048ZD3B SSR
250A 480V 4-32V DC to AC SSR Zero crossing control
GDH25066ZD3B SSR
250A 660V 4-32V DC to AC SSR Zero crossing control
GDH20066ZD3B SSR
200A 660V 4-32V DC to AC SSR Zero crossing control
GDH20028ZA2B SSR
200A 280V 90-250V AC to AC SSR Zero crossing control
