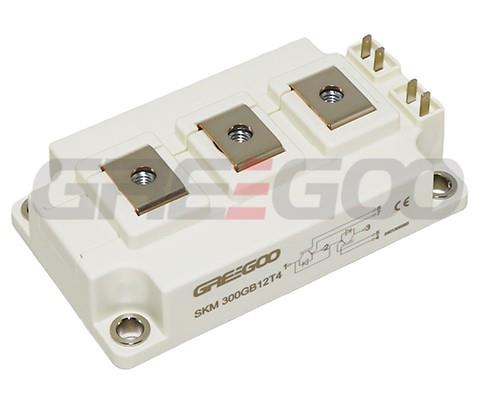

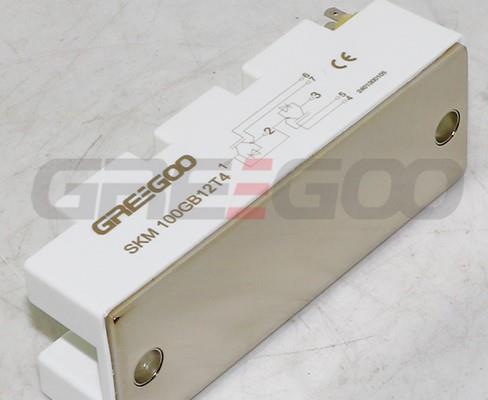

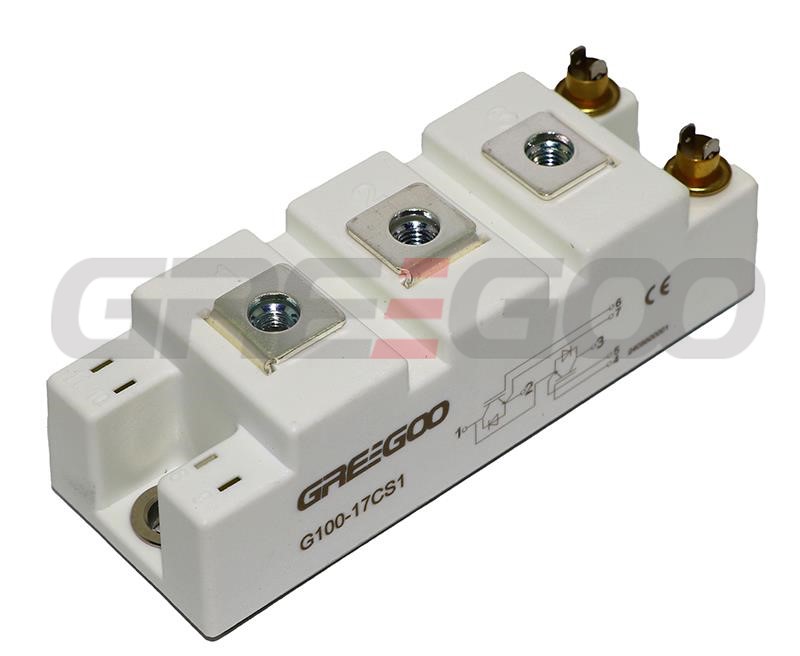

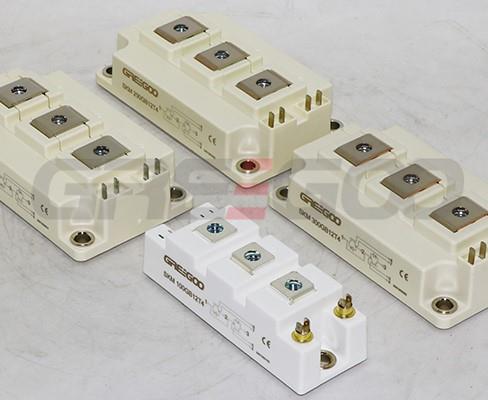

1700V IGBT Modules

Greegoo offers IGBT (insulated-gate bipolar transistor) modules in different topologies, current and voltage ratings. Starting from 15A to 1600A in voltage classes from 600V to 1700V, the IGBT modules are used in a variety of applications and feature key technologies such as sintering, spring or press-fit contacts for quick and easy assembly. Different topologies such as CIB (converter inverter brake), half-bridge, H-bridge, 6-pack and 3-level are available, covering almost every application field. Such as inverter welding machine; inverter power supply, frequency converter, UPS; electric vehicle; photovoltaic inverter, industrial servo service; switched reluctance motor, chopper speed regulation; induction heating, etc.

Type	VCES	IC	VCE(sat)	E(on off)	Rth(J-C)	Packages
	Tc=25℃	Tc=80℃	Tj=25℃	Tj=125℃
	(V)	(A)	(V)	(mJ)	(K/W)
G50HF170S-G1	1700	50	2.3	40.5	0.23	G1
G75HF170S-G1	1700	75	2.3	59	0.18	G1
G100HF170S-G1	1700	100	2.3	80	0.13	G1
G150HF170S-G2	1700	50	2.3	116	0.08	G2
G200HF170S-G2	1700	75	2.3	155	0.05	G2
G300HF170S-G2	1700	100	2.3	220	0.045	G2
G200SG170S-G3	1700	200	2.3	155	0.08	G3
G300SG170S-G3	1700	300	2.3	225	0.06	G3
G400SG170S-G3	1700	400	2.3	205	0.06	G3
G600SG170S-G3	1700	600	2.3	245	0.04	G3
G150HF170S-G8	1700	150	2.3	110	0.085	G8
G225HF171S-G8	1700	225	2.3	161	0.075	G8
G300HF172S-G8	1700	300	2.3	221	0.045	G8
G450HF173S-G8	1700	450	2.3	310	0.042	G8

Application

The 1700V IGBT module is a high-voltage power semiconductor device with advantages such as high efficiency, low loss, high power density, and strong reliability, making it suitable for high-voltage and high-power applications. Its main applications include industrial drives, motor control, renewable energy (e.g., wind power and photovoltaic inverters), rail transportation (e.g., electric locomotives and subway traction systems), power grid equipment (e.g., high-voltage direct current transmission and reactive power compensators), and electric vehicle motor control and charging systems. The 1700V IGBT module enables efficient power conversion in high-voltage environments, supports various topologies, and is widely used in industrial and energy sectors, providing high-reliability and high-performance solutions.

FAQ

Download

SKM200GB125DN IGBT Module (PDF)
