◆ Vacuum dielectric for low and stable contact resistance
◆ Usable at frequencies above 32 MHz
◆ Carries 50 Amps at DC; 10 Amps at 32 MHz
◆ Not designed for power switching
|
Product Specification |
Units |
GHR-2-SP |
||
|
Contact Form |
C |
|||
|
Contact Arrangement |
SPDT |
|||
|
Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz) |
KV Peak |
17 |
||
|
Rated Operating Voltage,
(kV,Peak), |
DC or 60Hz |
KV Peak |
15 |
|
|
2.5MHz |
KV Peak |
12 |
||
|
16MHz |
KV Peak |
9 |
||
|
32MHz |
KV Peak |
7 |
||
|
Continuous Current, Carry Max |
DC or 60Hz |
Amps |
50 |
|
|
2.5MHz |
Amps |
30 |
||
|
16MHz |
Amps |
17 |
||
|
32MHz |
Amps |
10 |
||
|
Coil Hi -Pot (V RMS, 60 Hz) |
V |
500 |
||
|
Capacitance |
Across Open Contacts |
pF |
0.5 |
|
|
Contacts to Ground |
pF |
1 |
||
|
Resistance, Contact Max @ 1A, 28Vdc |
Ω |
0.012 |
||
|
Operate Time, Max |
ms |
15 |
||
|
Release Time, Max |
ms |
9 |
||
|
Operating Temperature Ambient |
°C |
-55~+125 |
||
|
Shock, 1/2 Sine11ms (Peak) |
G’s |
50 |
||
|
Vibration, Sine (10-2000 Hz Peak) |
G’s |
10 |
||
|
Mechanical Life |
Cycles |
1 million |
||
|
Weight |
g |
84 |
||
|
Nominal, Volts dc |
220 |
110 |
27 |
24 |
12 |
|
Pick-up, Volts dc,Max |
150 |
70 |
16 |
16 |
8 |
|
Drop-Out, Volts dc,Min |
10 |
2 |
1.5 |
1.5 |
0.5 |
|
Coil Resistance (Ω±10%) |
10000 |
5400 |
270 |
180 |
48 |
|
※ Ratings listed are for 25°C |
|||||

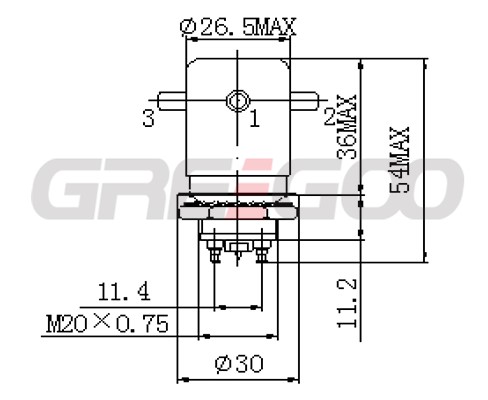

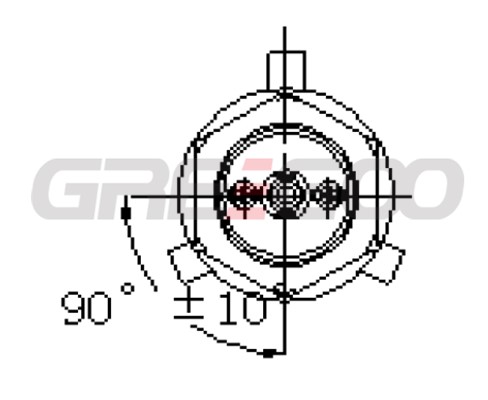

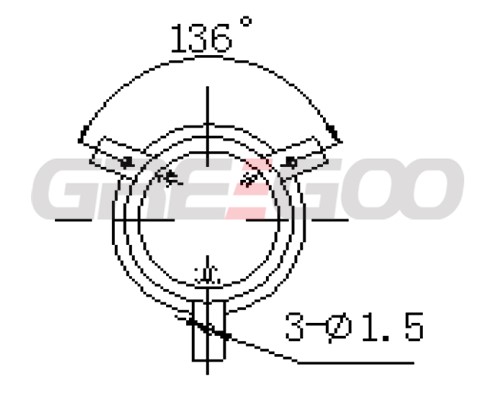

GHR-2-1/2/3
1 Terminal connection: S - solder pot; W - Screw
2 Mounting: F - flange; P - through panel
3 Coil rating: 12 - 12VDC; 24 - 24VDC; 26.5 - 26.5VDC ....
