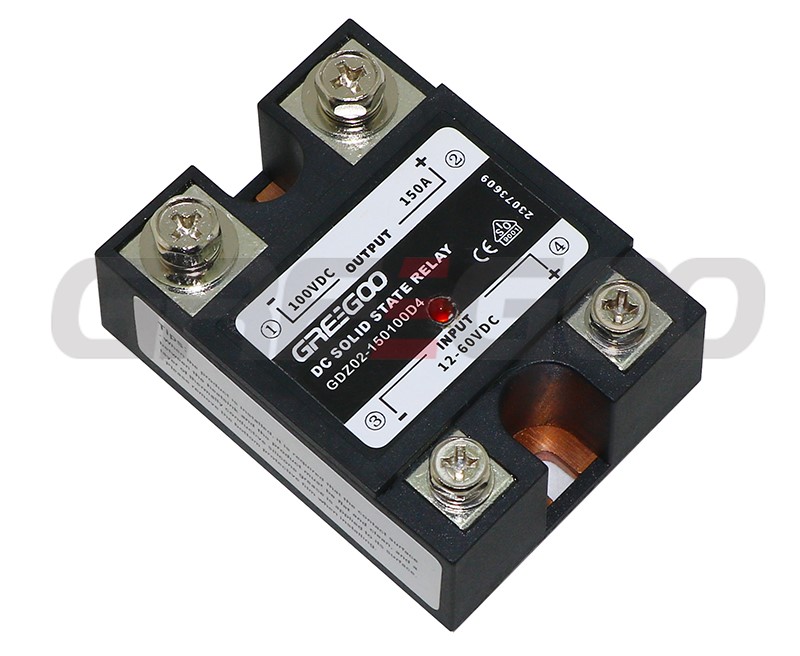

150A 100V dc dc solid state relay
| Name | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay |
| Type | Standard | Standard | Standard | Fast switching |
| Part numbers | GDZ02-150100D1 | GDZ02-150100D2 | GDZ02-150100D4 | GDZ02C-150100D3 |
| Control voltage | 12-15VDC | 18-36VDC | 12-60VDC | 4-32VDC |
| Control power supply | / | / | / | 12/24VDC |
| Max.switching current per phase | 150A | 150A | 150A | 150A |
| Max.switching voltage | 0-100VDC | 0-100VDC | 0-100VDC | 0-100VDC |
| Switching time | ≤1mS | ≤1mS | ≤8mS | ≤0.03mS |
| Output method | Mosfet DC output | Mosfet DC output | Mosfet DC output | Mosfet DC output |
| Mounting | Panel mount | Panel mount | Panel mount | Panel mount |
| Contacts configuration | 1NO | 1NO | 1NO | 1NO |
| Manufacturer | Greegoo | Greegoo | Greegoo | Greegoo |
| Certificates | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS |
| Note | Part numbers with "L" for over current protection, e.g. GDZ02-150100D3L, Part numbers with "T" for over temperature protection, e.g. GDZ02-150100D3T | |||
