Product details

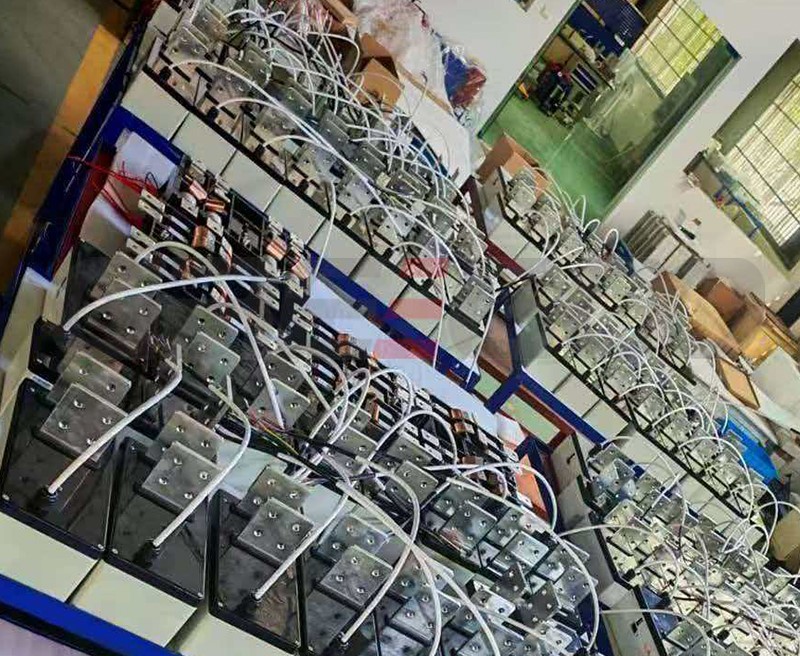

1250A 3.6KV Fast Vacuum Contactor

Part numbers	GVSC-1250/3.6
Rated voltage	3.6kV
Rated current	1250A
Closing time	≤5.0ms
Contact resistance	≤30μΩ
Short time withstand current	≥10kA/2s
Temperature rising	≤55K
Peak impulse withstand current	300kA
Auxiliary Contacts and Control Coils
Auxi contact response time	≤10ms
Auxi contact capacity	220VDC 50mA
Coil voltage	400VDC (100-500V)
Closing current	≤100A
Control	Double coil independent control
Mechanical and Holding Performance
Closing holding force	＞1000N
Opening holding force	＞300N
Mechanical life	2000 times
Electrical life	2000 times
Lifespan	30 years
Dielectric withstand voltage
Between main breaking contacts	AC 12kV/1min；DC 17kV/1min
Main contacts and coil / auxiliary	AC 12kV/1min
Coil and auxiliary contact	AC 2kV/1min
Coil 1 and coil 2	AC 3KV/1min
Features	Manual opening
	Status indicator (closing/opening)
	Independent control of dual coils
	Mechanical latching

FAQ

Q:Why fast vacuum contactor can be act as bypass switch?

Fast vacuum contactors are widely used as bypass switches due to their quick operation (<5 milliseconds), high reliability, and high current tolerance. They ensure continuous power supply during main circuit faults or maintenance, making them ideal for scenarios requiring rapid response and efficient power management.

Q:Can your high-speed bypass contactors be customized for specific application scenarios?

We offer comprehensive, customized development tailored to specific application scenarios. We can flexibly customize key parameters - including rated current and voltage, closing and bounce times, coil control voltage, loop resistance, auxiliary feedback time, power-frequency withstand voltage levels, operation modes, and installation dimensions. Our goal is to provide highly compatible and reliable high-speed bypass contactor solutions for high-end power equipment such as VSC-HVDC converters, power quality management systems, and grid protection devices.
