Thyristor Diode Module (Y1-CU package)

Home Products Thyristor Diode ModuleIXYS Diode Thyristor ModuleThyristor Diode Module (Y1-CU package)

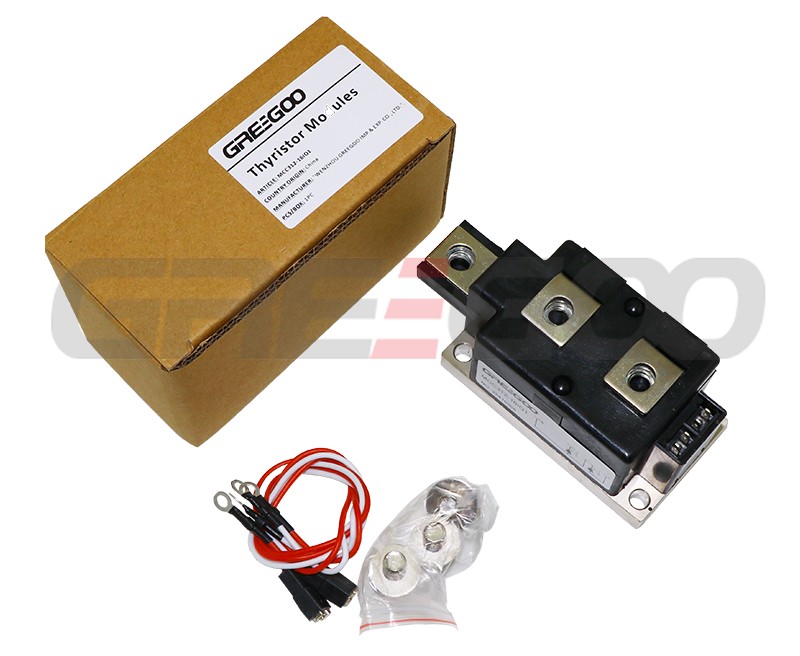

MCC255 MCC312 dual thyristor module 800V to 1800V

Specification

Thyristor Diode Module (Y1-CU package)

Model	IT(AV) (A)	VRRM (V)	ITSM (A)	I2t (kA2·s)	V(TO) (V)	rT (mΩ)	Tvj max (ºC)	Rth(j-c) (ºC/W)	Weight (g)	Package	Size (mm)
MCC225-12io1	220	1200	8000	320	0.79	0.83	140	0.157	680	Y1-CU	92x50x52
MCC225-14io1	220	1400	8000	320	0.79	0.83	140	0.157	680	Y1-CU	92x50x52
MCC225-16io1	220	1600	8000	320	0.79	0.83	140	0.157	680	Y1-CU	92x50x52
MCC225-18io1	220	1800	8000	320	0.79	0.83	140	0.157	680	Y1-CU	92x50x52
MCC255-12io1	250	1200	9200	432.2	0.8	0.68	140	0.14	680	Y1-CU	92x50x52
MCC255-14io1	250	1400	9200	432.2	0.8	0.68	140	0.14	680	Y1-CU	92x50x52
MCC255-16io1	250	1600	9200	432.2	0.8	0.68	140	0.14	680	Y1-CU	92x50x52
MCC255-18io1	250	1800	9200	432.2	0.8	0.68	140	0.14	680	Y1-CU	92x50x52
MCC312-12io1	310	1200	10000	500	0.85	0.75	140	0.12	680	Y1-CU	92x50x52
MCC312-14io1	310	1400	10000	500	0.85	0.75	140	0.12	680	Y1-CU	92x50x52
MCC312-16io1	310	1600	10000	500	0.85	0.75	140	0.12	680	Y1-CU	92x50x52
MCC312-18io1	310	1800	10000	500	0.85	0.75	140	0.12	680	Y1-CU	92x50x52

MDD312 MDD255 Dual Diode Module

Model No.	IFAV（A）	Tc ℃	VRRM V	IFSM A	I²t kA2·s	V(TO) V	rT mΩ	Tvj max ºC	Rth(j-c) ºC/W	Weight g	Package	Size (L×B×H) mm
MDD255-12N1	270	100	1200	9800	480.2	0.8	0.6	150	0.14	680	Y1-CU	115x50x52
MDD255-14N1	270	100	1400	9800	480.2	0.8	0.6	150	0.14	680	Y1-CU	115x50x52
MDD255-16N1	270	100	1600	9800	480.2	0.8	0.6	150	0.14	680	Y1-CU	115x50x52
MDD255-18N1	270	100	1800	9800	480.2	0.8	0.6	150	0.14	680	Y1-CU	115x50x52
MDD255-20N1	270	100	2000	9800	480.2	0.8	0.6	150	0.14	680	Y1-CU	115x50x52
MDD255-22N1	270	100	2200	9800	480.2	0.8	0.6	150	0.14	680	Y1-CU	115x50x52
MDD312-12N1	310	100	1200	10800	583.2	0.8	0.6	150	0.12	680	Y1-CU	115x50x52
MDD312-14N1	310	100	1400	10800	583.2	0.8	0.6	150	0.12	680	Y1-CU	115x50x52
MDD312-16N1	310	100	1600	10800	583.2	0.8	0.6	150	0.12	680	Y1-CU	115x50x52
MDD312-18N1	310	100	1800	10800	583.2	0.8	0.6	150	0.12	680	Y1-CU	115x50x52
MDD312-20N1	310	100	2000	10800	583.2	0.8	0.6	150	0.12	680	Y1-CU	115x50x52
MDD312-22N1	310	100	2200	10800	583.2	0.8	0.6	150	0.12	680	Y1-CU	115x50x52
