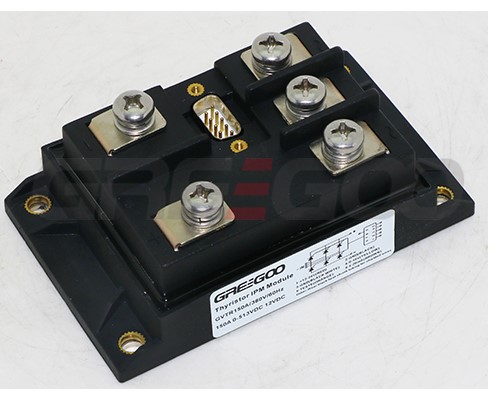

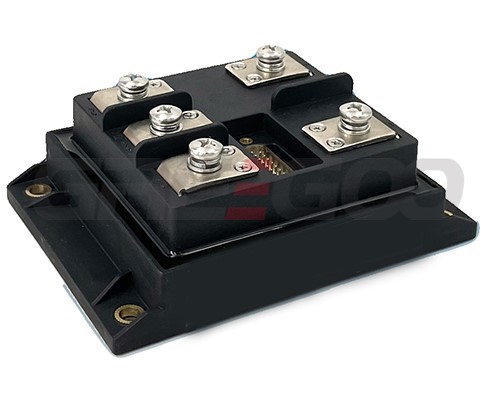

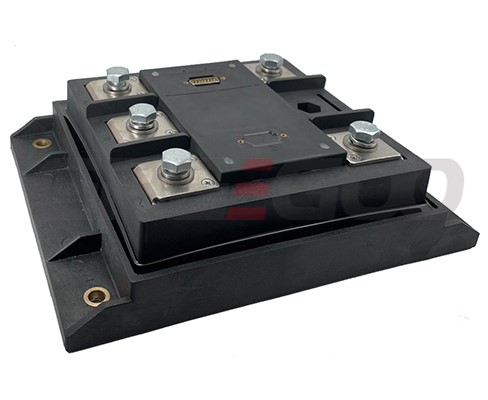

Three phase rectifier IPM module
Part numbers
|
GVTR-30A GVTT-55A GVTR-100A |
GVTR-150A GVTR-200A |
GVTR-250A GVTR-320A |
GVTR-400A GVTR-500A |
GVTR-750A GVTR-1000A |
Case code |
G-59 |
G-73 |
G-105 |
G-135 |
G-230 |
Control PSU power |
3.5W |
3.5W |
3.5W |
4W |
8W |

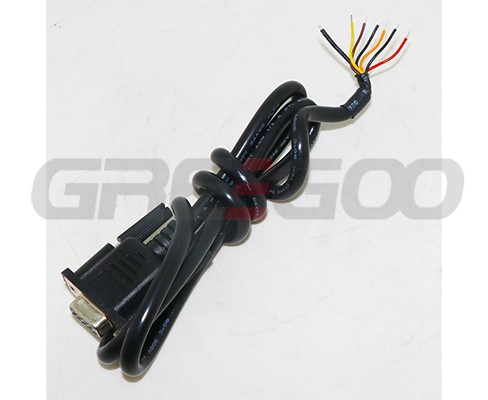

Control port |
5 pin |
9 pin |
15 pin |
||
Power status indicator |
LED |
No |
|||
Control method |
0-10Vdc/4-20mA |
0-10Vdc/4-20mA |
|||
Load voltage range |
380Vac:0-513Vdc |
||||
Rated current |
30A、55A、100A、150A、200A、250A、320A、400A、500A、750A、1000A |
||||
Control power supply |
12Voc-24Vpc |
||||
Voltage unbalance |
<2% |
||||
Voltage instability |
<0.5% |
||||
SCR Chip
Forward and Reverse
Peak Voltage Withstand
|
≥1800V |
||||
di/dt |
500A/μS |
||||
dv/dt |
3000V/μS |
||||
Working Environment Temperature |
-25℃~45℃ |
Need more information?
Contact us to request pricing, availability and customization options.
