Soft FRED Fast Recovery Epitaxial Diode Module
Soft FRED Fast Recovery Epitaxial Diode Module
VRRM＝600V，1200V
IF（AV）＝75A～900A
VISO＝2500V（RMS）
|
Part No. |
VRRM
V |
IRRM@ 125℃ 0.8VRRM mA |
IF(AV) @TC TC=75℃ A |
IF(RMS) Tj=75℃ A |
IF(RMS) f=20KHZ TC=85℃ A |
IFSM 10ms 45℃ A |
VFM@IF(AV) Tj=25℃ V A |
trr Typ. 45℃ ns |
Rthjc
K/W |
PD max w |
Case Style |
| MZK200NJ20C | 200 | 3 | 200 | 200 | 200 | 800 | 1.1 100 | 50 | 0.45 | 250 | TK |
| MZK200NJ40C | 400 | 5 | 200 | 200 | 200 | 800 | 1.3 100 | 75 | 0.45 | 250 | TK |
|

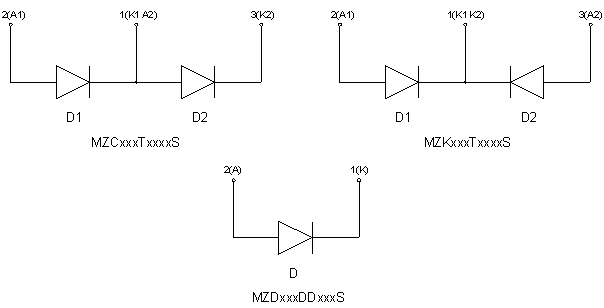

MZC75TS60S MZK75TS60S |
600 | 17 | 2×75 | 2×110 | 2×56 | 2×1100 | 1.5 75 | 125 | 0.60 | 200 | TS |
|
MZC100TS60S MZK100TS60S |
600 | 34 | 2×100 | 2×150 | 2×77 | 2×1500 | 1.5 100 | 132 | 0.50 | 250 | TS |
| MZC150TS60S MZK150TS60S |
600 | 34 | 2×150 | 2×230 | 2×112 | 2×2300 | 1.4 150 | 140 | 0.35 | 350 | TS |
| MZC200TS60S MZK200TS60S |
600 | 51 | 2×200 | 2×300 | 2×168 | 2×3100 | 1.6 200 | 155 | 0.20 | 416 | TS |
| MZC300TS60S MZK300TS60S |
600 | 68 | 2×300 | 2×430 | 2×224 | 2×4700 | 1.6 300 | 170 | 0.18 | 690 | TS |
| MZC400TS60S MZK400TS60S |
600 | 102 | 2×400 | 2×560 | 2×336 | 2×6200 | 1.6 400 | 200 | 0.18 | 690 | TS |
| MZC75TS120S MZK75TS120S |
1200 | 17 | 2×75 | 2×107 | 2×55 | 2×1000 | 2.3 75 | 150 | 0.35 | 350 | TS |
| MZC100TS120S MZK100TS120S |
1200 | 22 | 2×100 | 2×150 | 2×86 | 2×1300 | 2.1 100 | 150 | 0.30 | 416 | TS |
| MZC150TS120S MZK150TS120S |
1200 | 34 | 2×150 | 2×200 | 2×140 | 2×2000 | 2.3 150 | 188 | 0.20 | 625 | TS |
| MZC200TS120S MZK200TS120S |
1200 | 38 | 2×200 | 2×280 | 2×172 | 2×2700 | 2.2 200 | 188 | 0.18 | 695 | TS |
| MZC300TS120S MZK300TS120S |
1200 | 61 | 2×300 | 2×380 | 2×226 | 2×4000 | 2.4 300 | 231 | 0.10 | 1250 | TS |
| MZC400TS120S MZK400TS120S |
1200 | 83 | 2×400 | 2×560 | 2×312 | 2×5400 | 2.3 400 | 240 | 0.10 | 1250 | TS |
| MZD600DD60S | 600 | 140 | 600 | 840 | 450 | 8300 | 1.6 600 | 250 | 0.09 | 1400 | DD |
| MZD900DD60S | 600 | 205 | 900 | 1260 | 670 | 12400 | 1.7 900 | 270 | 0.07 | 1700 | DD |
| MZD400DD120S | 1200 | 102 | 400 | 600 | 320 | 5600 | 2.3 400 | 250 | 0.09 | 1400 | DD |
| MZD450DD120S | 1200 | 120 | 450 | 700 | 340 | 5900 | 2.3 450 | 250 | 0.09 | 1800 | DD |
| MZD600DD120S | 1200 | 160 | 600 | 840 | 450 | 8000 | 2.3 600 | 260 | 0.08 | 1500 | DD |
| MZD800DD120S | 1200 | 210 | 800 | 1120 | 560 | 11200 | 2.4 800 | 280 | 0.07 | 1700 | DD |
Need more information?
Contact us to request pricing, availability and customization options.
