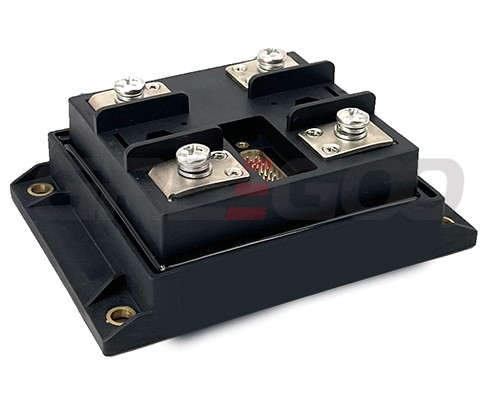

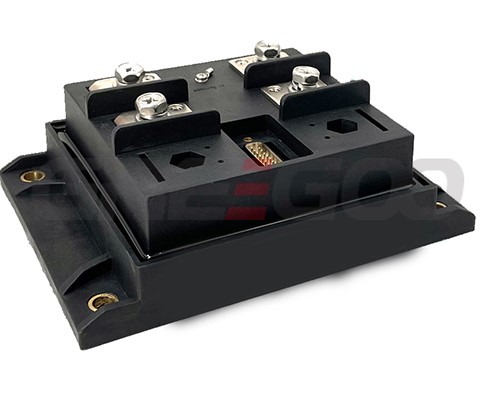

SCR Controller for Electric Heating (single phase)
Home Products SCR Power ControllerIntelligent Power Modules (IPM module)SCR Controller for Electric Heating (single phase)
SCR Controller for Electric Heating (single phase)
| Model No. | Description | Max.Current | Load Voltage Range | Control Mode | Housing | Port | Indicator |
| SVR-JL-2022010 | Single phase AC Switching Module | 20A | 0-220VAC | 0-10V | G51 | 5 pins | LED |
| SVR-JL-2022020 | Single phase AC Switching Module | 20A | 0-220VAC | 4-20mA | G51 | 5 pins | LED |
| SVR-JL-2038010 | Single phase AC Switching Module | 20A | 0-380VAC | 0-10V | G51 | 5 pins | LED |
| SVR-JL-2038020 | Single phase AC Switching Module | 20A | 0-380VAC | 4-20mA | G51 | 5 pins | LED |
| SVR-JL-4022010 | Single phase AC Switching Module | 40A | 0-220VAC | 0-10V | G51 | 5 pins | LED |
| SVR-JL-4022020 | Single phase AC Switching Module | 40A | 0-220VAC | 4-20mA | G51 | 5 pins | LED |
| SVR-JL-4038010 | Single phase AC Switching Module | 40A | 0-380VAC | 0-10V | G51 | 5 pins | LED |
| SVR-JL-4038020 | Single phase AC Switching Module | 40A | 0-380VAC | 4-20mA | G51 | 5 pins | LED |
| SVR-JL-7522010 | Single phase AC Switching Module | 75A | 0-220VAC | 0-10V | G51 | 5 pins | LED |
| SVR-JL-7522020 | Single phase AC Switching Module | 75A | 0-220VAC | 4-20mA | G51 | 5 pins | LED |
| SVR-JL-7538010 | Single phase AC Switching Module | 75A | 0-380VAC | 0-10V | G51 | 5 pins | LED |
| SVR-JL-7538020 | Single phase AC Switching Module | 75A | 0-380VAC | 4-20mA | G51 | 5 pins | LED |
| SVR-JL-10022010 | Single phase AC Switching Module | 100A | 0-220VAC | 0-10V | G59 | 5 pins | LED |
| SVR-JL-10022020 | Single phase AC Switching Module | 100A | 0-220VAC | 4-20mA | G59 | 5 pins | LED |
| SVR-JL-10038010 | Single phase AC Switching Module | 100A | 0-380VAC | 0-10V | G59 | 5 pins | LED |
| SVR-JL-10038020 | Single phase AC Switching Module | 100A | 0-380VAC | 4-20mA | G59 | 5 pins | LED |
| SVR-JL-15022010 | Single phase AC Switching Module | 150A | 0-220VAC | 0-10V | G59 | 5 pins | LED |
| SVR-JL-15022020 | Single phase AC Switching Module | 150A | 0-220VAC | 4-20mA | G59 | 5 pins | LED |
| SVR-JL-15038010 | Single phase AC Switching Module | 150A | 0-380VAC | 0-10V | G59 | 5 pins | LED |
| SVR-JL-15038020 | Single phase AC Switching Module | 150A | 0-380VAC | 4-20mA | G59 | 5 pins | LED |
|
Part numbers |
SVR-JL-20A SVR-JL-40A SVR-JL-75A |
SVR-JL-100A SVR-JL-150A |
SVR-JL-260A SVR-JL-300A |
SVR-JL-350A SVR-JL-400A SVR-JL-600A |
SVR-JL-800A SVR-JL-1200A |
|
Case code |
G-51 |
G-59 |
G-73 |
G-105 |
G-135 |
|
Control PSU power |
2.2W |
2.2W |
2.6W |
2.6W |
3W |
|

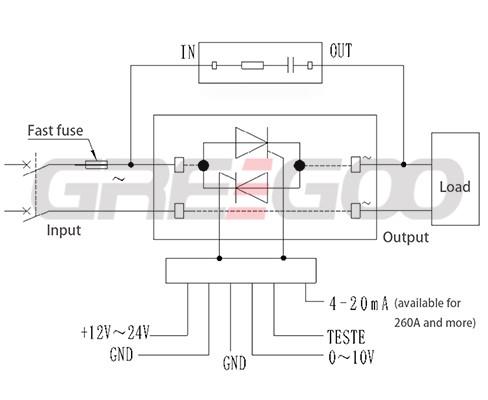

Control port |
5 pin |
9 pin |
15 pin |
||
|
Power status indicator |
LED |
NO |
|||
|
Control method |
0-10Vpc 4 - 20mA(alternative) |
0-10Vdc/4-20mA |
|||
|
Load voltage range |
220Vac:0-220Vac 380Vac:0-380Vac |
||||
|
Rated current |
20A、40A、75A、100A、150A、260A、300A、350A、450A、600A, 800A、1200A |
||||
|
Control power supply |
12Vdc-24Vdc |
||||
|
Voltage unbalance |
<2% |
||||
|
Voltage instability |
<0.5% |
||||
|
SCR Chip
Forward and Reverse
Peak Voltage Withstand
|
≥1800V |
||||
|
di/dt |
500A/μS |
||||
|
dv/dt |
3000V/μS |
||||
|
Working Environment Temperature |
-25℃~45℃ |
||||
