630A 1P EVC20-630/1P-24KV high voltage vacuum contactors
|
Description |
Unit |
Value |
||||
|
Main circuit |
Rated working voltage (Ue) |
kV |
24 |
|||
|
Rated working current (Ie) |
A |
630 |
||||
|
Rated frequency (fr) |
Hz |
50 |
||||
|
Rated making capacity |
A |
10Ie |
||||
|
Rated breaking capacity |
A |
6Ie |
||||
|
Rated short time withstand current |
A |
10Ie |
||||
|
Rated peak withstand current |
A |
25Ie |
||||
|
Rated short circuit duration |
s |
2 |
||||
|
Power frequency withstand voltage |
Between phases, phase to earth |
kV |
65 |
|||
|
Vacuum breaks |
kV |
65 |
||||
|
Control circuit |
Rated voltage (Us) |
V |
AC or DC. 220 |
|||
|
Rated power (Ps) |
Electric holding |
VA |
≤1000/100 (absorbing/holding) |
|||
|
Mechanical holding |
≤1000/600 (closing/opening) |
|||||
|
Auxiliary circuit |
Form |
|
2NO 2NC |
|||
|
Rated value |
|
AC 380V/5A, DC 380V/1A |
||||
|
Control circuit, auxiliary circuit to earth power frequency withstand voltage |
kV |
2 |
||||
|
Rated operating frequency |
Long-term |
time/h |
300 |
|||
|
Short-term |
time/h |
600 |
||||
|
Mechanical endurance |
10000 times |
10 |
||||
|
Electrical endurance |
10000 times |
10 (AC-3) |
||||
|
Mechanical characteristics |
Electric holding |
Closing time |
ms |
≤200 |
||
|
Opening time |
≤180 |
|||||
|

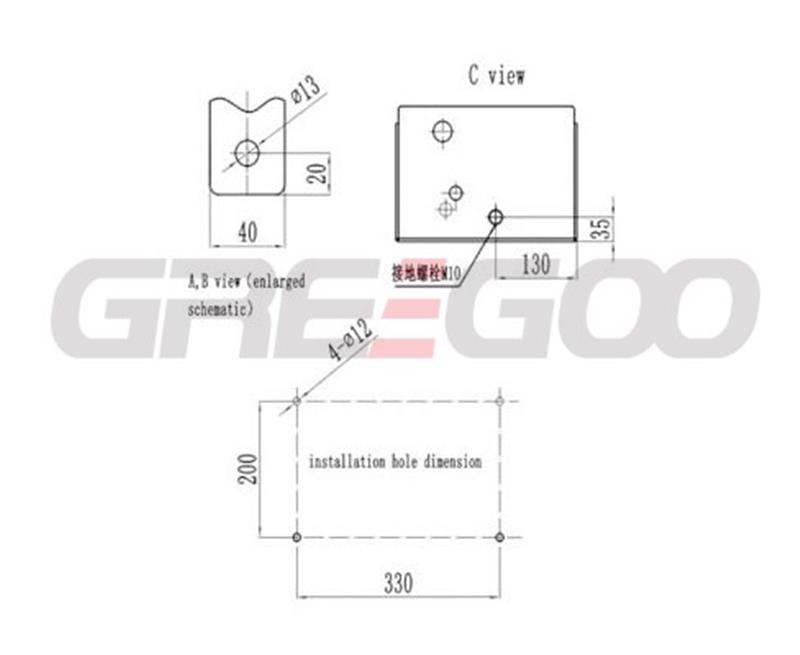

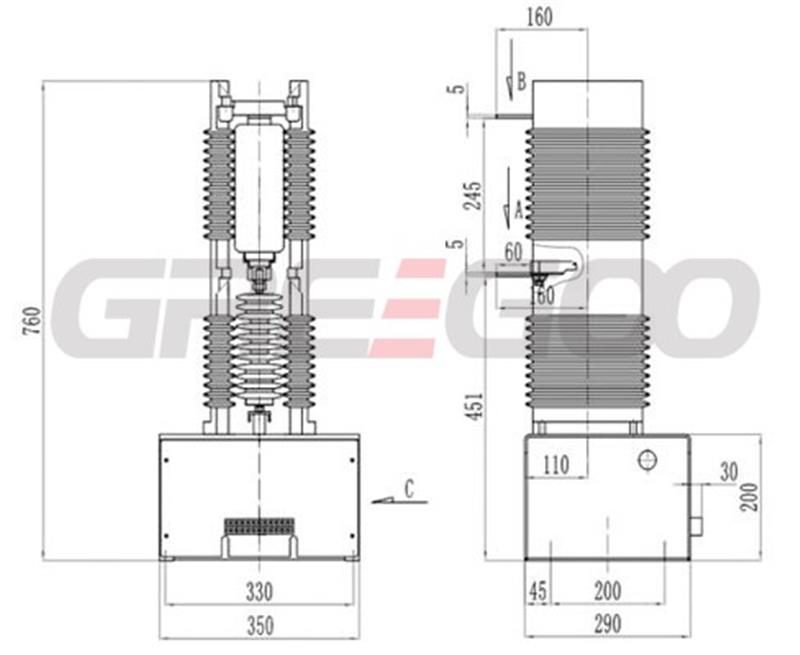

Weight |
kg |
40 |
||||
|
Remark: Control voltage can be made according to customer’s requirements. |
||||||
