RCCB Circuit Breaker RCD-A3
Home Products RCCB MCB RCBOResidual Current Circuit Breakers (ID)RCCB Circuit Breaker RCD-A3
Product Details

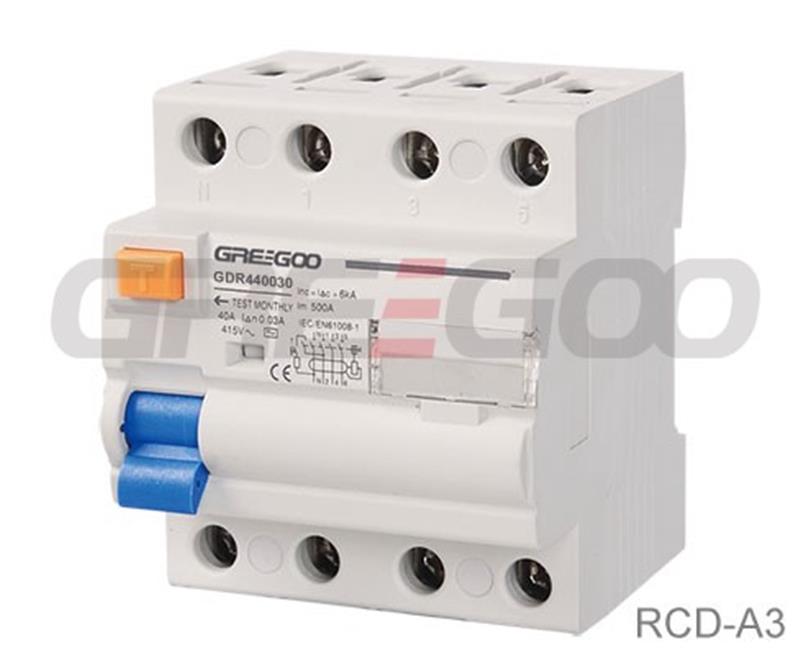

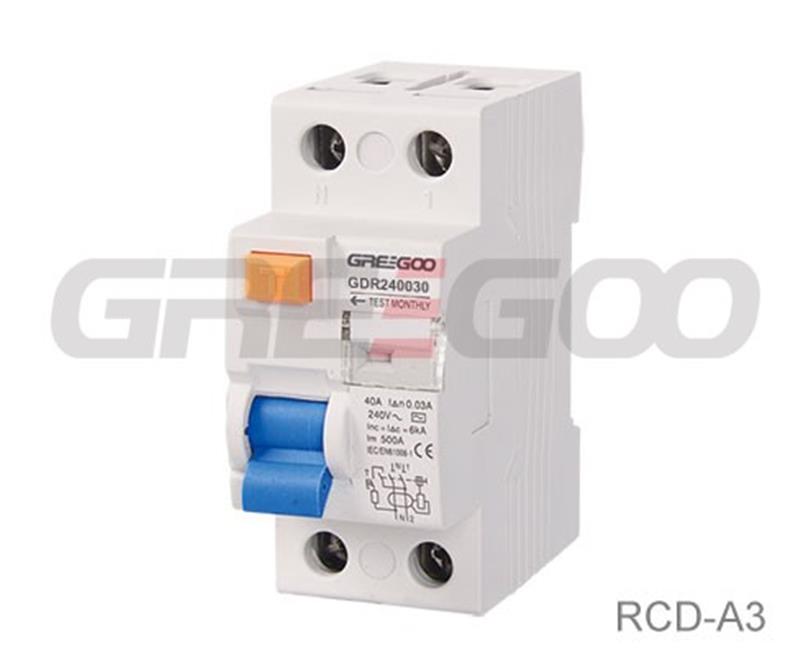

RCCB Circuit Breaker RCD-A3
| Model | Rated Current | Pole No. | Type | ||
| 30mA | 100mA | 300mA | (A) | ||
| GDR225030 | GDR225100 | GDR225300 | 25 | 2 | AC |
| GDR240030 | GDR240100 | GDR240300 | 40 | 2 | AC |
| GDR263030 | GDR263100 | GDR263300 | 63 | 2 | AC |
| GDR425030 | GDR425100 | GDR425300 | 25 | 4 | AC |
| GDR440030 | GDR440100 | GDR440300 | 40 | 4 | AC |
| GDR463030 | GDR463100 | GDR463300 | 63 | 4 | AC |
| GDR225030A | GDR225100A | GDR225300A | 25 | 2 | A |
| GDR240030A | GDR240100A | GDR240300A | 40 | 2 | A |
| GDR263030A | GDR263100A | GDR263300A | 63 | 2 | A |
| GDR425030A | GDR425100A | GDR425300A | 25 | 4 | A |
| GDR440030A | GDR440100A | GDR440300A | 40 | 4 | A |
| GDR463030A | GDR463100A | GDR463300A | 63 | 4 | A |
| Model No. | GDR2__RCD-A3 | GDR4__RCD-A3 | |
| Casing code | RCD-A3 | RCD-A3 | |
| Pole No. | 2 Pole / 1P N | 4 Pole / 3P N | |
| Standard Conformity | IEC 61008-1 | IEC 61008-1 | |
| Rated Current (In) | A | 25, 40, 63 | 25, 40, 63 |
| Sensitivity (I△n) | mA | 30, 100, 300 | 30, 100, 300 |
| Rated Voltage (Un) | Vac | 240 | 240 / 415 |
| Type | A/AC | A/AC | |
| Shortcircuit Withstand Capacity | kA | 6 | 6 |
| Residual Making Breaking Capacity | A | 10 In | 10 In |
| Rated Insulation Voltage (Ui) | V | 500 | 500 |
| Rated Frequency | Hz | 50 | 50 |
| Rated Shock Withstand Voltage | V | 4000 | 4000 |
| Torque | Nm | 3.0 | 3.0 |
| Ambient Temperature | oC | -25 to 40 | -25 to 40 |
| Electrical Endurance/Mechanical | operations | 10000 | 10000 |
| Mounting | Din Rail (35 * 7.5) mm | Din Rail (35 * 7.5) mm | |
| Degree of Protection | IP 20 | IP 20 | |
| Terminal Capacity (max) | mm2 | 25 | 25 |
| Installation category | II | II |
