Phase Control Thyristor 10/16/25RIA
Home Products Stud Screw Fit ThyristorVishay Stud ThyristorPhase Control Thyristor 10/16/25RIA
Product Details
Phase Control Thyristor 10/16/25RIA
| Type | IT(AV) | VTM/ITM | ITRMS | VRRM | IRRM | IGT | IH | IL | dv/dt | Rjc | M2 | Wt | Out | |
| THS55℃ | 25℃ | |||||||||||||
| A | V | A | A | V | mA | mA | mA | mA | mA | ℃/W | N/m | kg | ||

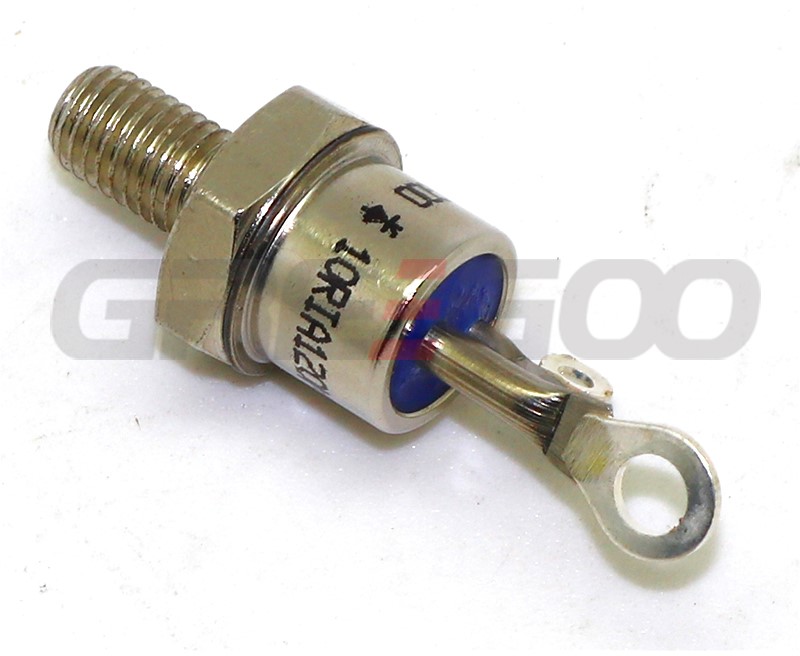

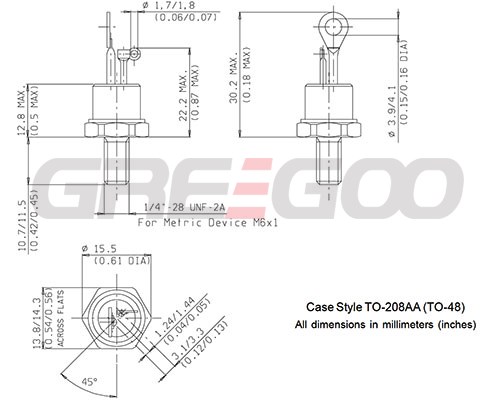

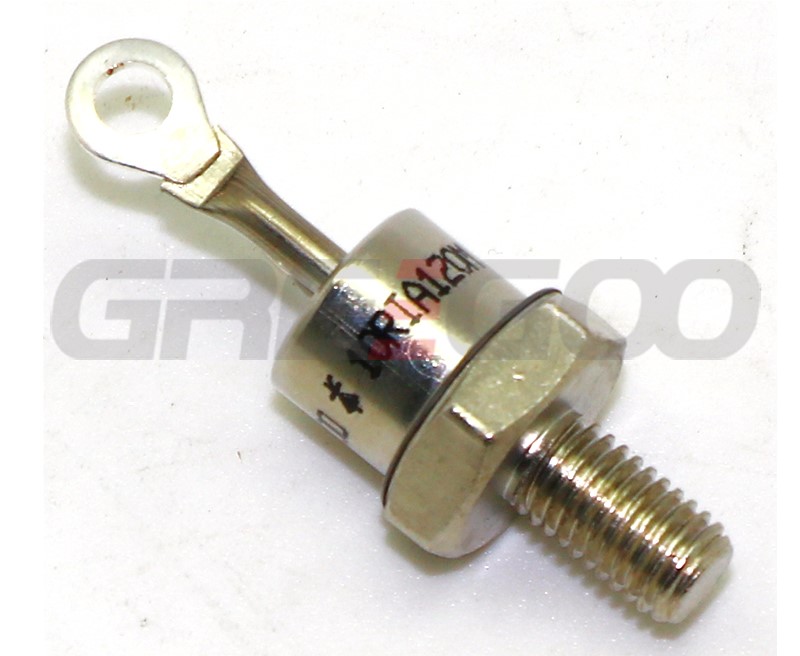

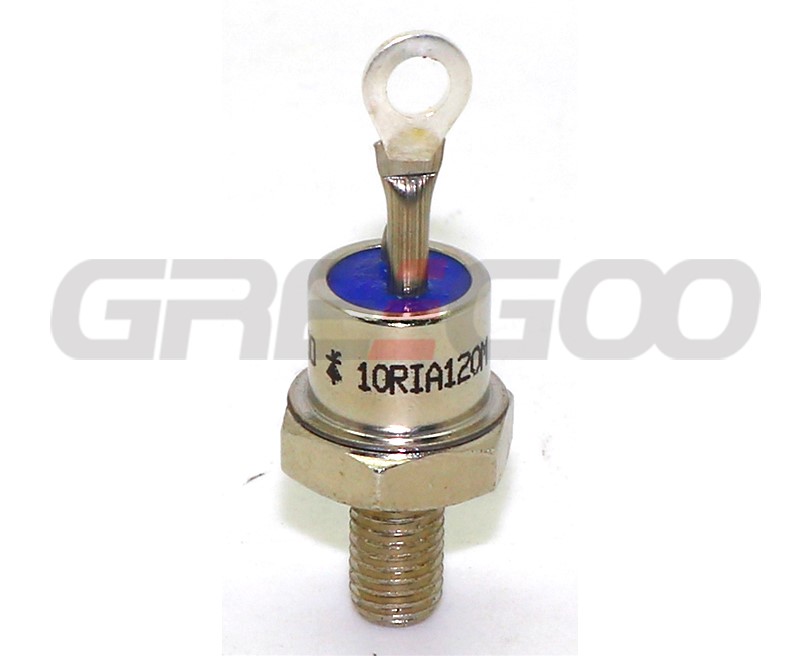

| 10RIA | 10 | 1.75 | 30 | 16 | 200-1200 | ≤10 | 10-100 | ≤150 | ≤200 | ≥500 | ≤1.8 | ≤2.0 | 0.016 | TO-48 |
| 16RIA | 16 | 1.75 | 48 | 25 | 200-1200 | ≤10 | 10-100 | ≤150 | ≤200 | ≥500 | ≤1.5 | ≤2.0 | 0.016 | |

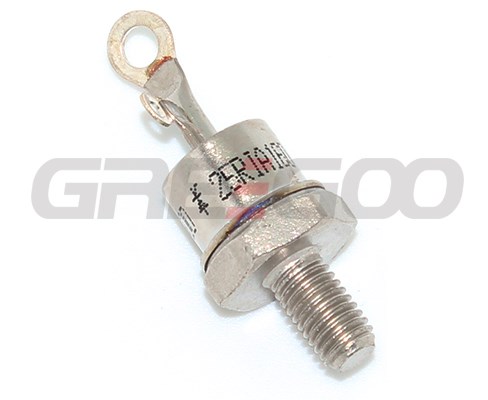

| 25RIA | 25 | 1.7 | 75 | 40 | 200-1200 | ≤10 | 10-100 | ≤150 | ≤200 | ≥500 | ≤1.0 | ≤2.0 | 0.016 | |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
