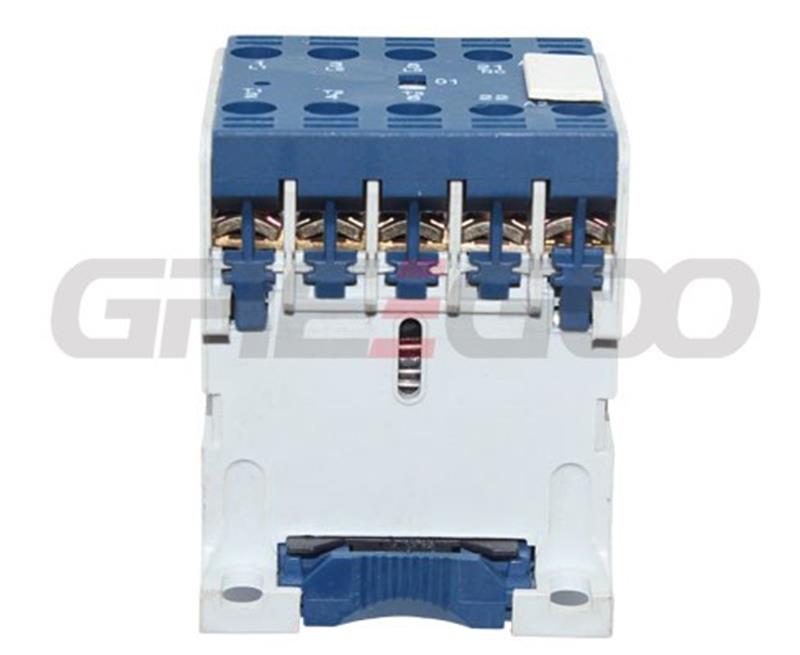

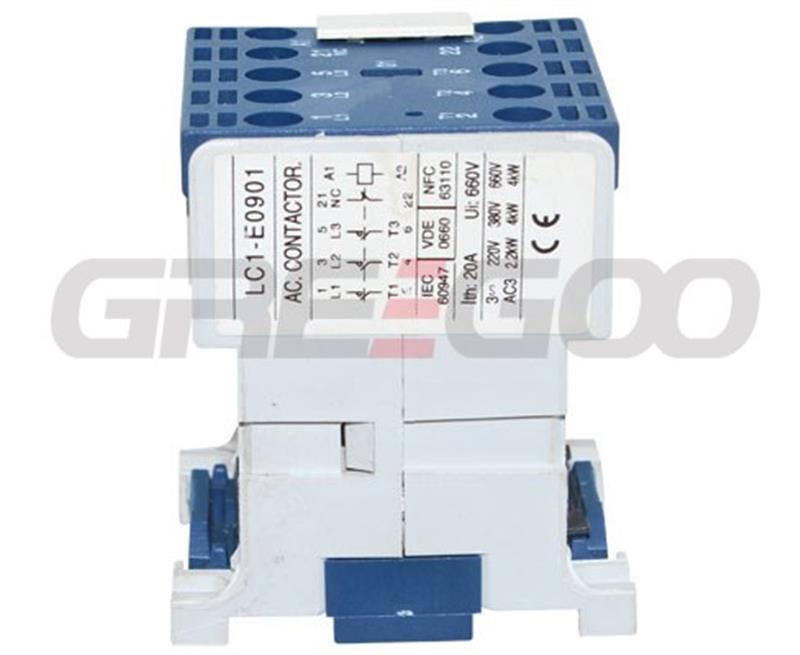

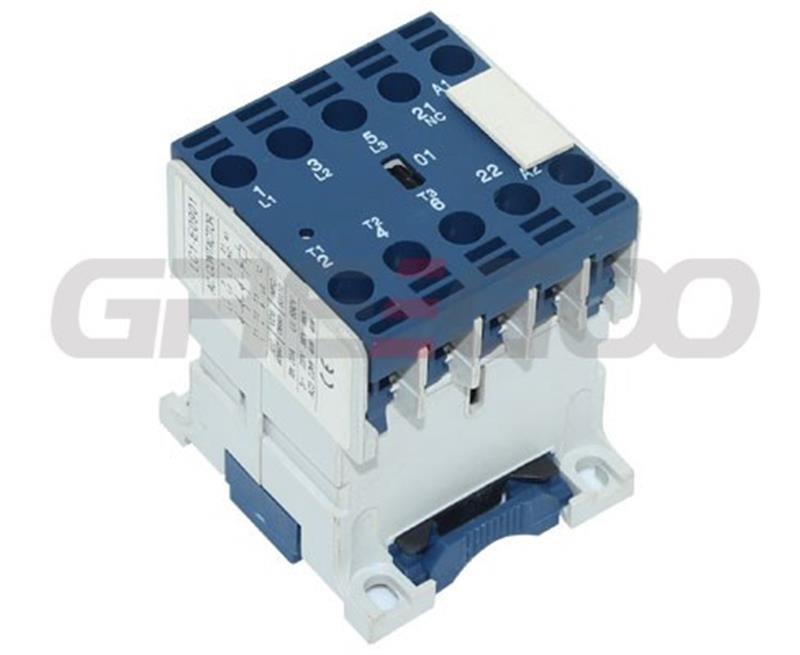

Miniature Contactors (GLC1-E)

Standard power ratings of 3-phase motors 50/60 Hz in category AC-3						Rated operational current in AC-3 up to 440V(A)	Rated operational current in AC-1 up to 440V(A)	Rated noncondutive voltage(V)	Instantaneous auxiliary contacts		Reference
220V	380V	415V	440V	500V	660V				Instantaneous auxiliary contacts
230V	400V	(kW)	(kW)	(kW)	690V				NO	NC
(kW)	(kW)				(kW)				NO	NC
Control circuit: a.c.
1.5	2.2	2.2	2.2	3	3	6	16	690	1	-	GLC1-EC03
1.5	2.2	2.2	2.2	3	3	6	16	690	-	1	GLC1-EC09
2.2	4	4	4	4	4	9	16	690	1	-	GLC1-EE03
2.2	4	4	4	4	4	9	16	690	-	1	GLC1-EE09
Control circuit: d.c.
1.5	2.2	2.2	2.2	3	3	6	16	690	1	-	GLP1-EC03
1.5	2.2	2.2	2.2	3	3	6	16	690	-	1	GLP1-EC09
2.2	4	4	4	4	4	9	16	690	1	-	GLP1-EE03
2.2	4	4	4	4	4	9	16	690	-	1	GLP1-EE09

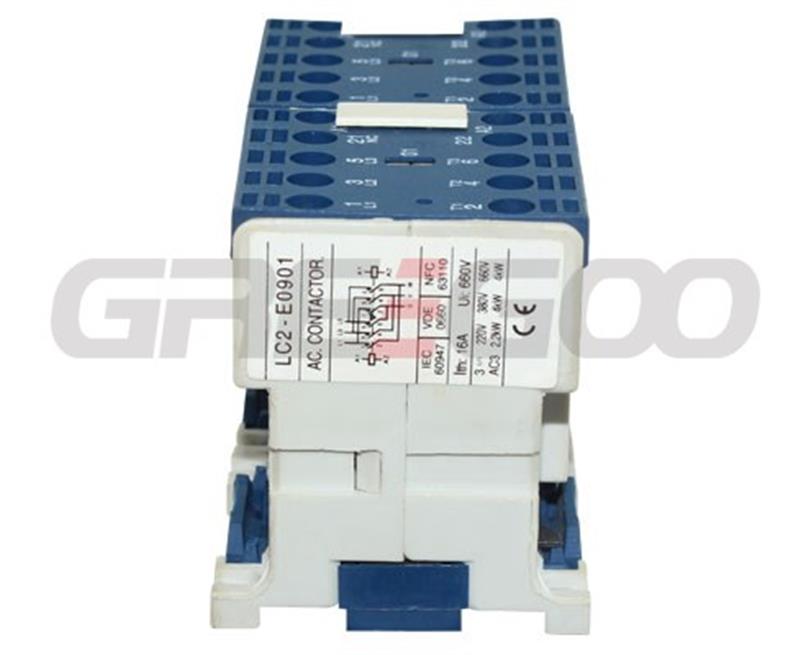

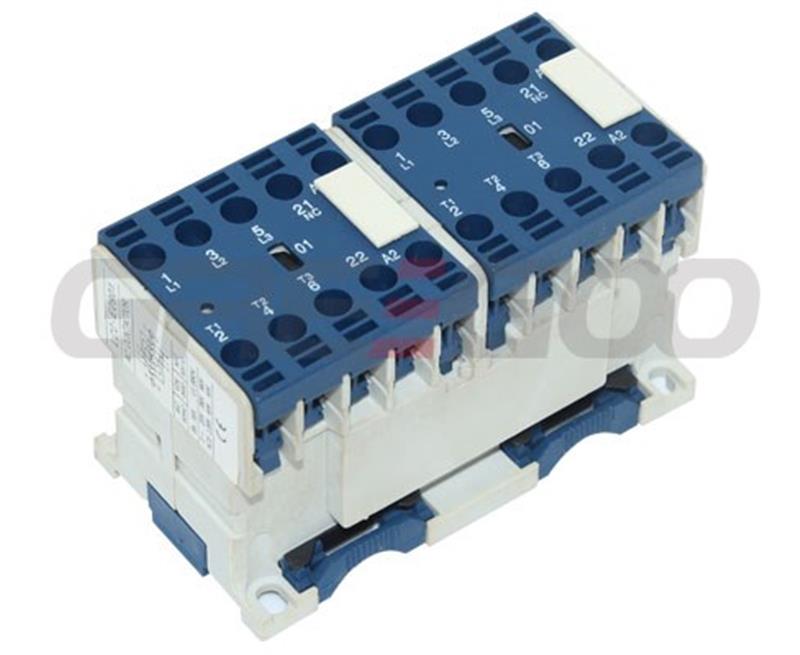

Reversing contactors for motor control
Control circuit: a.c.
1.5	2	2.2	2	3	3	6	16	690	1	-	GLC2-EC03
1.5	2	2.2	2	3	3	6	16	690	-	1	GLC2-EC09
2.2	4	4	4	4	4	9	16	690	1	-	GLC2-EE03
2.2	4	4	4	4	4	9	16	690	-	1	GLC2 -EE09
