    Mini type 10KV Current Transformer LZZBJ9-10MMini type 10KV Current Transformer LZZBJ9-10MMini type 10KV Current Transformer LZZBJ9-10MMini type 10KV Current Transformer LZZBJ9-10MMini type 10KV Current Transformer LZZBJ9-10MMini type 10KV Current Transformer LZZBJ9-10MMini type 10KV Current Transformer LZZBJ9-10MMini type 10KV Current Transformer LZZBJ9-10M
Product Details
Overview
FAQ
Download
Related Products
Product Details

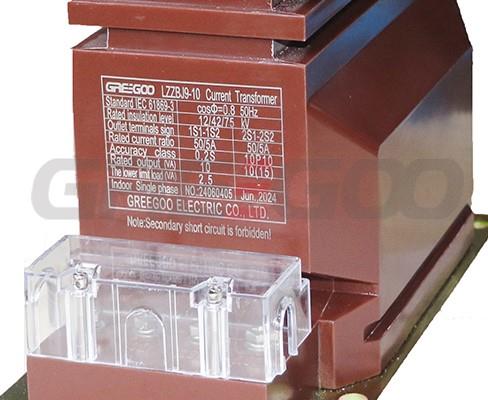

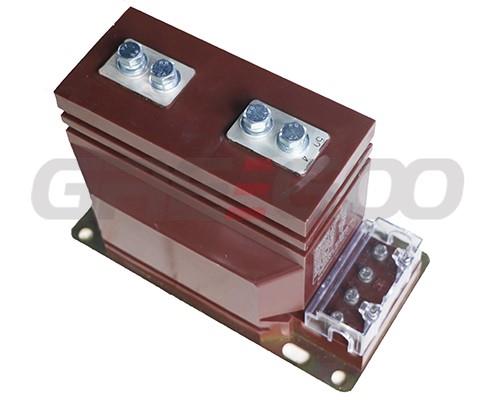

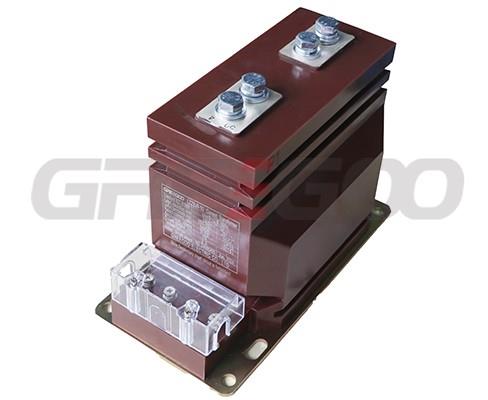

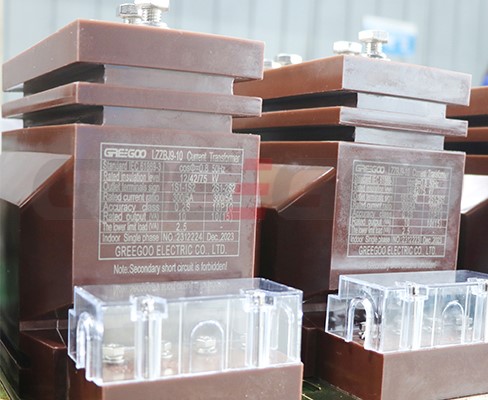

Mini type 10KV Current Transformer LZZBJ9-10M

Model
Rated
primary
current
Rated
secondary
current
Accuracy
class
Burden
Short time
thermal
current
Dynamically
stable
current
Rated
insulation
level
A A VA kA/s kA/s KV
LZZBJ9-10M
Mini type
5
5A
1A
0.2/10P10
0.5/10P10
0.2S/0.2S
10/15
15/15
15/15
0.45 1 12/42/75
10 0.9 2
15 1.35 3
20 1.8 4
30 2.7 6
40 3.6 8
50 4.5 10
75 6.75 15
100 9 20
150 13.5 30
200 18 40
300 24.5 44
400 24.5 44
500 32 59
600 32 59
800 32 59
1000 45 110

Overview

LZZBJ9-10A4G type current transformer is suitable for power systems with rated frequency of 50Hz or 60Hz and rated voltage of 10kV for energy measurement, current measurement and protection.


Installation location: indoors.
Ambient temperature: maximum temperature 40℃; minimum temperature -5℃; daily average temperature does not exceed 30℃.
Atmospheric conditions: There is no serious pollution in the atmosphere.

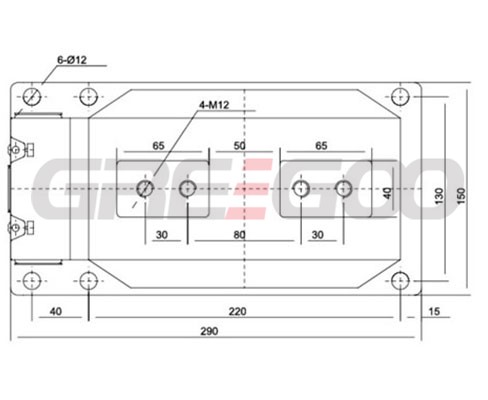

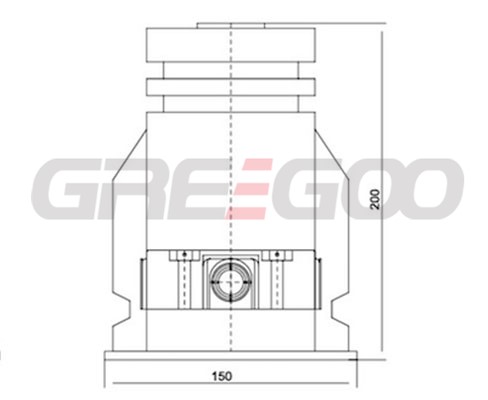

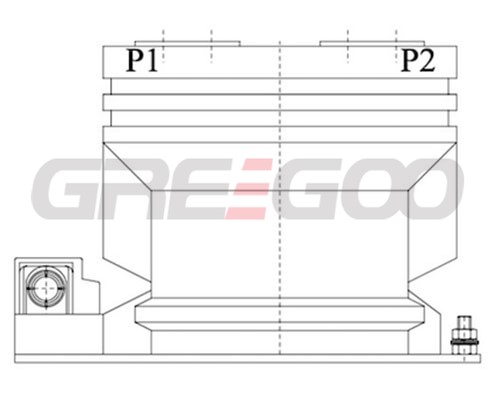

This type of current transformer is a fully enclosed structure cast by epoxy resin and has excellent insulation properties and moisture-proof capabilities. The product has clear contours, beautiful appearance and easy surface cleaning. There are grounding bolts and four mounting holes for installation on the bottom plate of the product.

FAQ
Q:What is the difference between 5P20 and PX class current transformer
A:The main difference between a 5P20 current transformer (CT) and a PX class current transformer lies in their accuracy and application. The 5P20 CT is a protection type current transformer with an accuracy class. The designation "5P" indicates that the transformer will not exceed an error of 5% under rated secondary burden when the secondary current reaches 20 times the rated current. This type of CT is typically used for overload protection and is not suitable for precise measurements. A PX class CT refers to a current transformer with a specific accuracy class for precise measurements. PX class CTs have different accuracy levels, such as 0.2S, 0.5S, etc. These figures indicate the percentage of error allowed under specified conditions. PX class CTs are commonly used for metering and billing purposes because they offer higher measurement accuracy. In summary, 5P20 CTs are primarily used for protection purposes, while PX class CTs are used in situations where high accuracy measurements are required.
