Heatsink for Power Modules
Heatsink for power modules
|
---|
1. Air Cooling Heatsink for modules only |
MSH Series | ||
Section area(cm2) | Perimeter(mm) | Weight (kg/m) |
59.3 | 3060 | 16 |

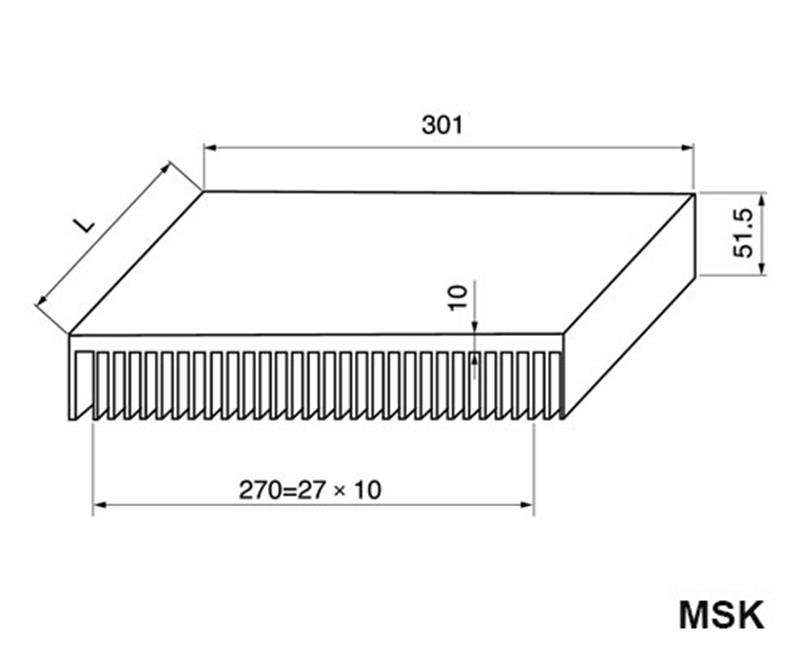

MSK Series | ||
Section area(cm2) | Perimeter(mm) | Weight (kg/m) |
66.7 | 1205 | 18.8 |

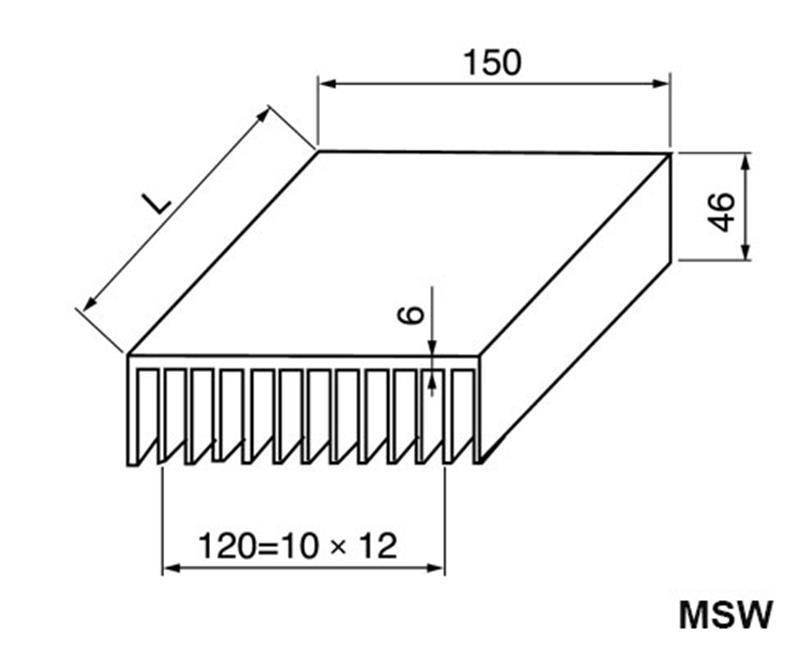

MSW Series | ||
Section area(cm2) | Perimeter(mm) | Weight (kg/m) |
29.3 | 1924 | 7.95 |

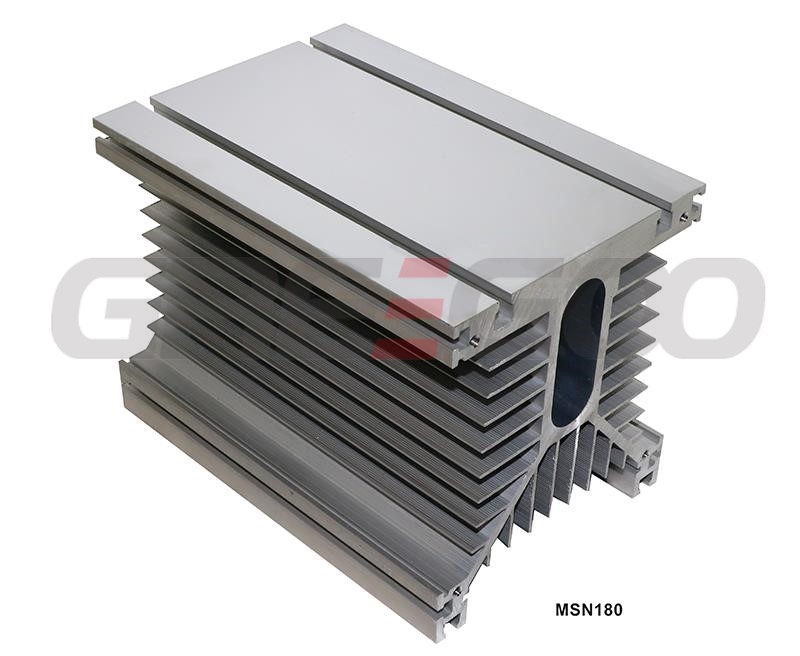

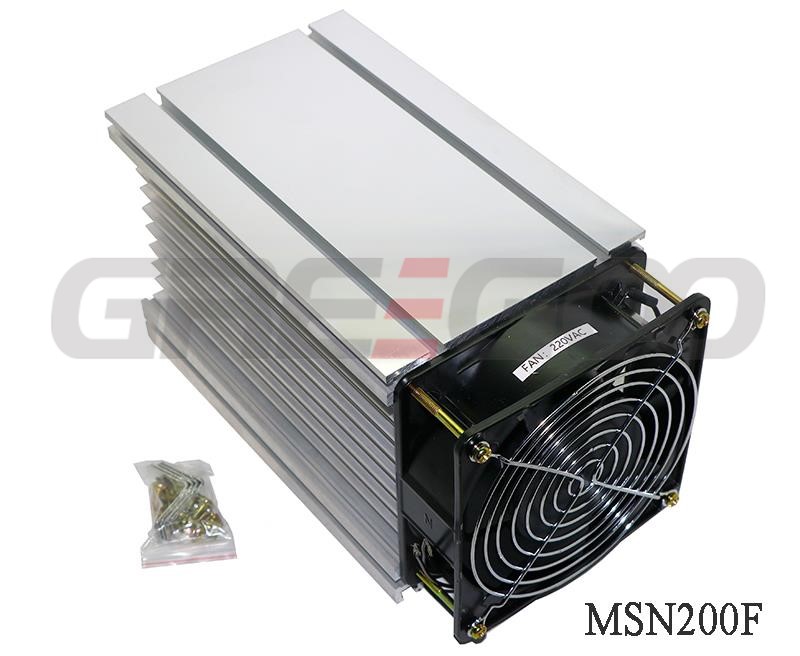

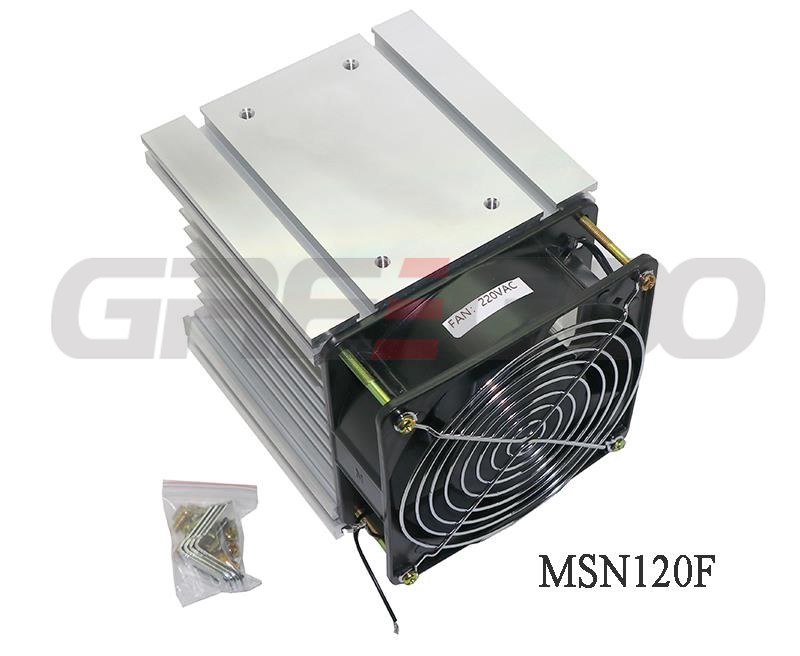

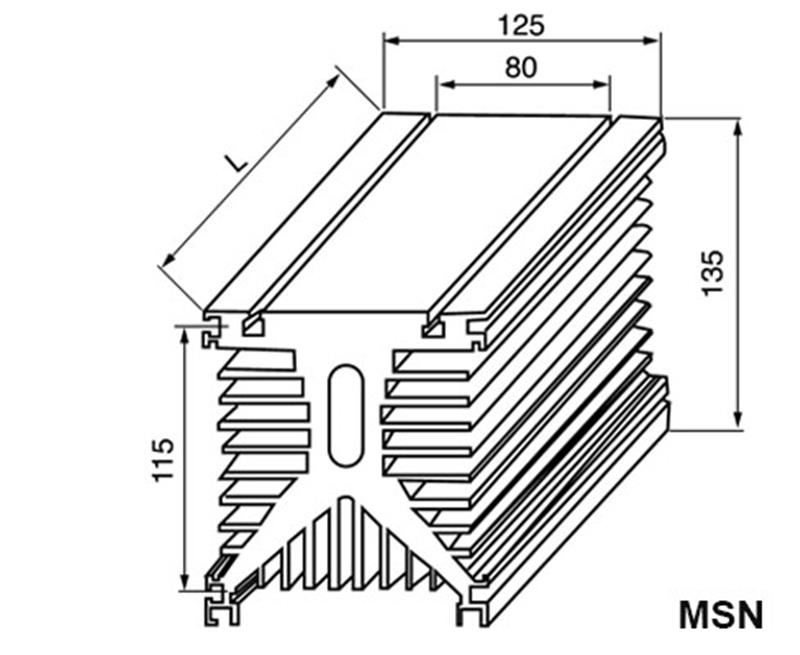

MSN Series | ||
Section area(cm2) | Perimeter(mm) | Weight (kg/m) |
77.78 | 2302 | 21 |

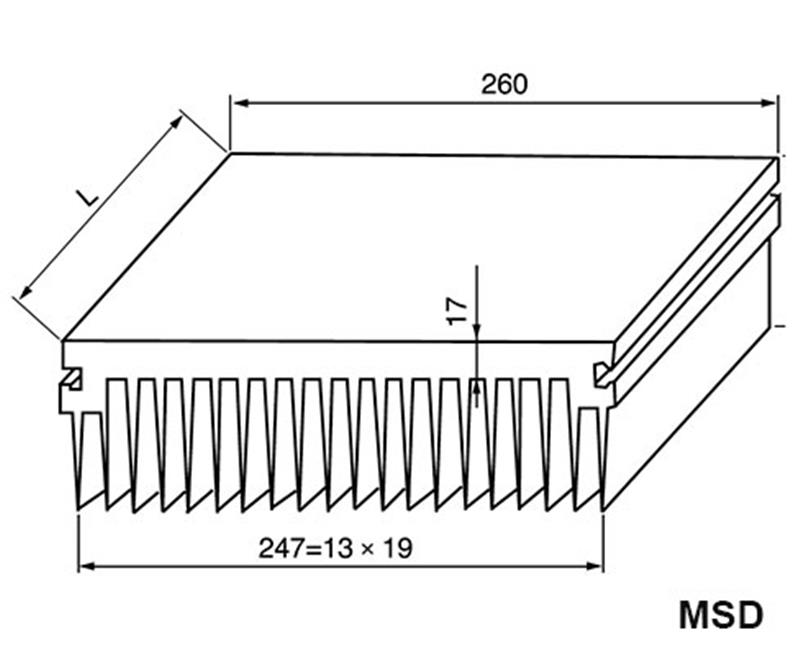

MSD Series | ||
Section area(cm2) | Perimeter(mm) | Weight (kg/m) |
93.3 |
2540
|
25.2
|

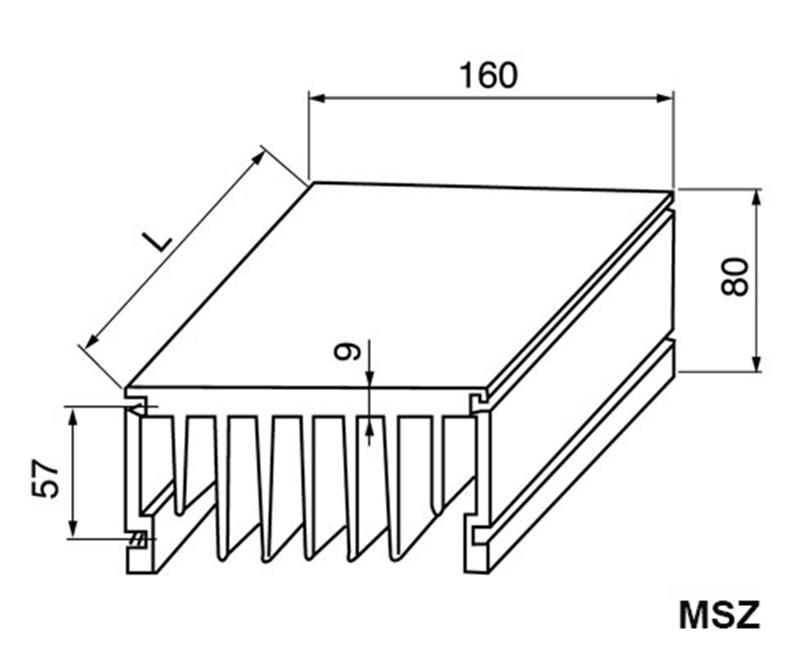

MSZ Series | ||
Section area(cm2) | Perimeter(mm) | Weight (kg/m) |
44.45
|
1652
|
12 |
