Product Details

Glass and SIPOS Passivation High Voltage Diodes 12KV 350mA

Features

  • Glass and SIPOS passivation chip
  • High Reverse Voltage
  • Low Reverse Leakage Current
  • Plastic material has UL flammability recognition 94V-0
  • ROHS  compliance
  • High  temperature  soldering  guaranteed: 260℃±5℃/10  seconds

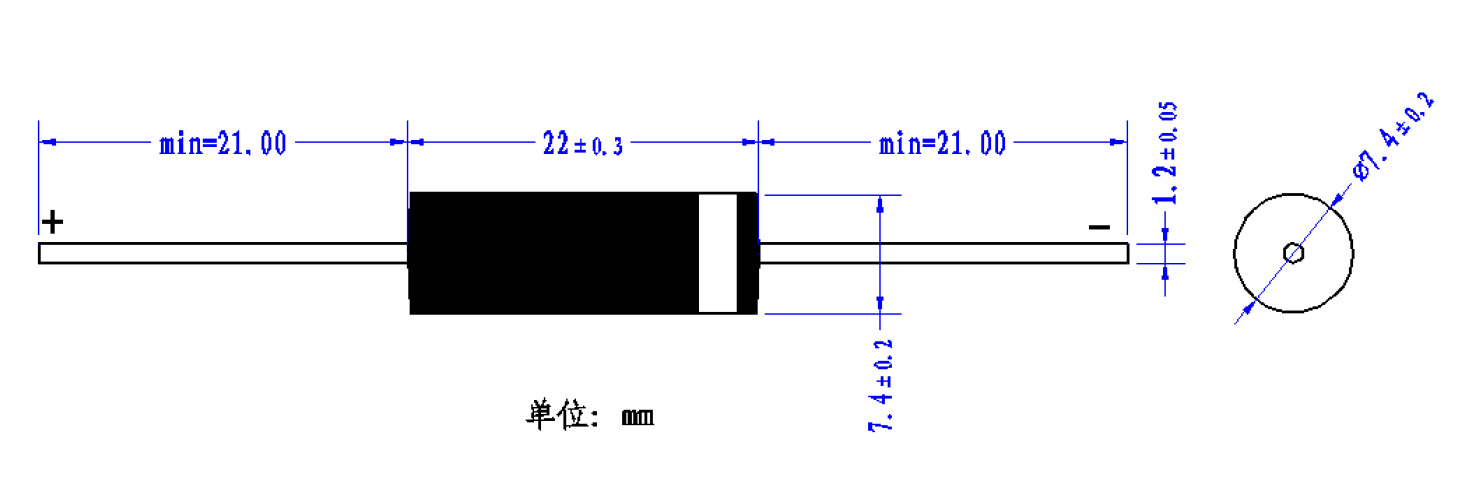

Mechanical Data

  • Case: Molded plastic case
  • Terminals: Plated leads solderable per MIL-STD-750, Method 2026
  • Polarity: Marked on Body
  • Mounting Position: Any
  • Weight: 2.5g (Approximately)


Product scope of application

  • For high voltage rectification for“ MWO”

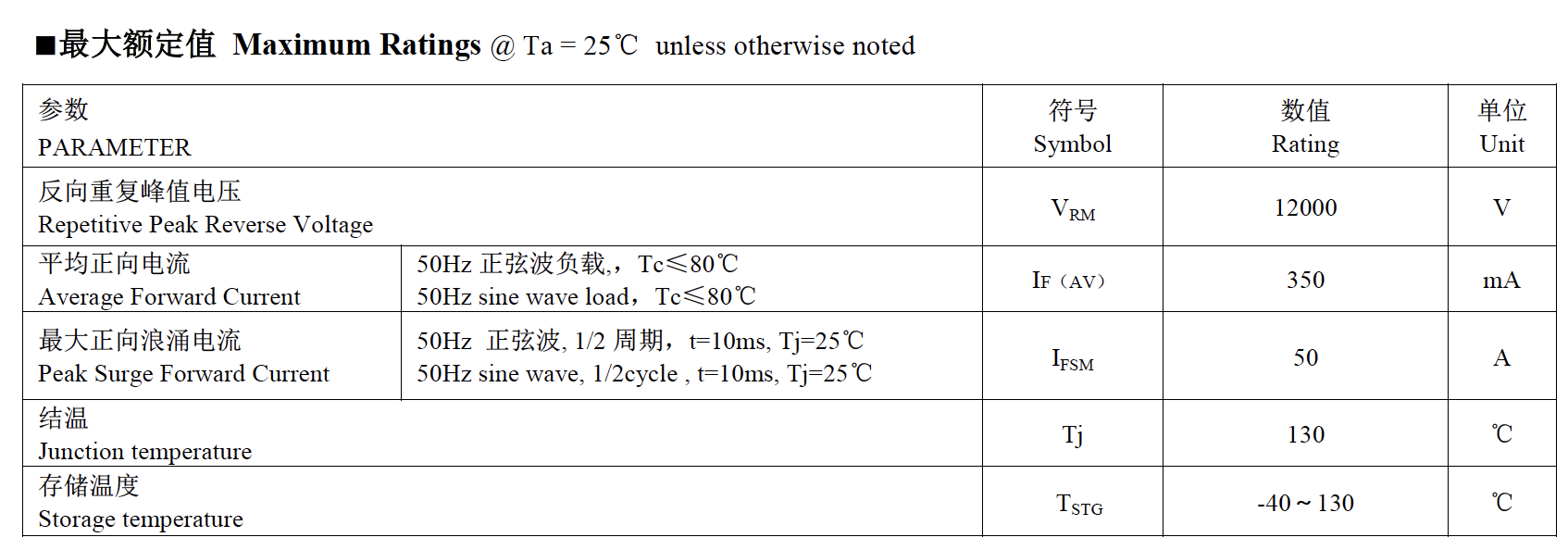

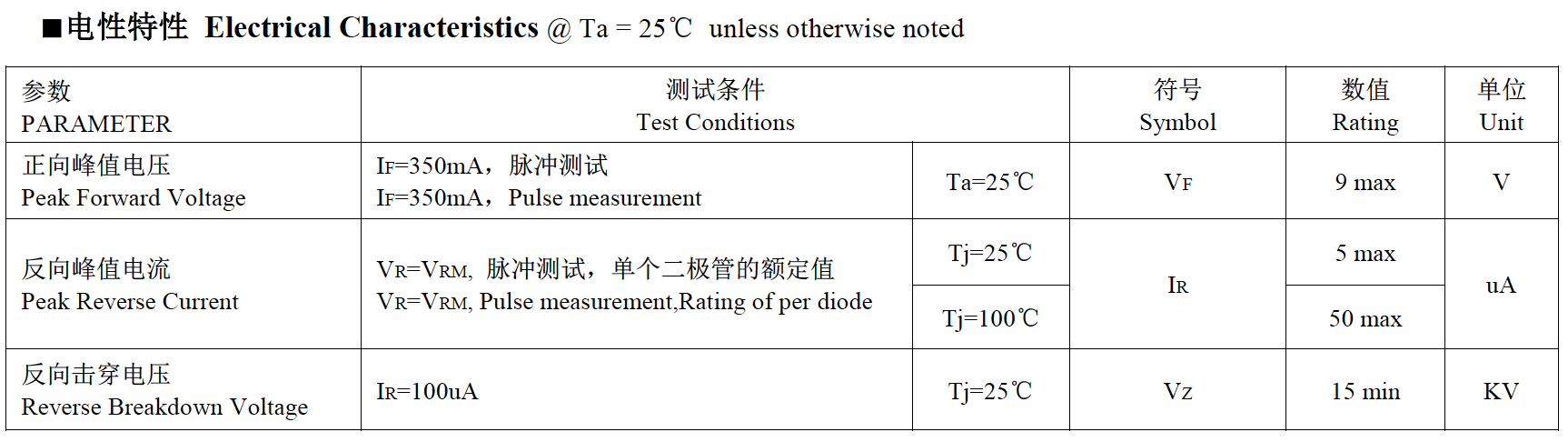

Model: GHV1-12

IF(AV): 350mA

VRM: 12000V

IFSM: 50A

Package: DO-206
