GEL16-32 single pole RCBO
Home Products Building Protection DeviceCircuit BreakersGEL16-32 single pole RCBO
Product Details

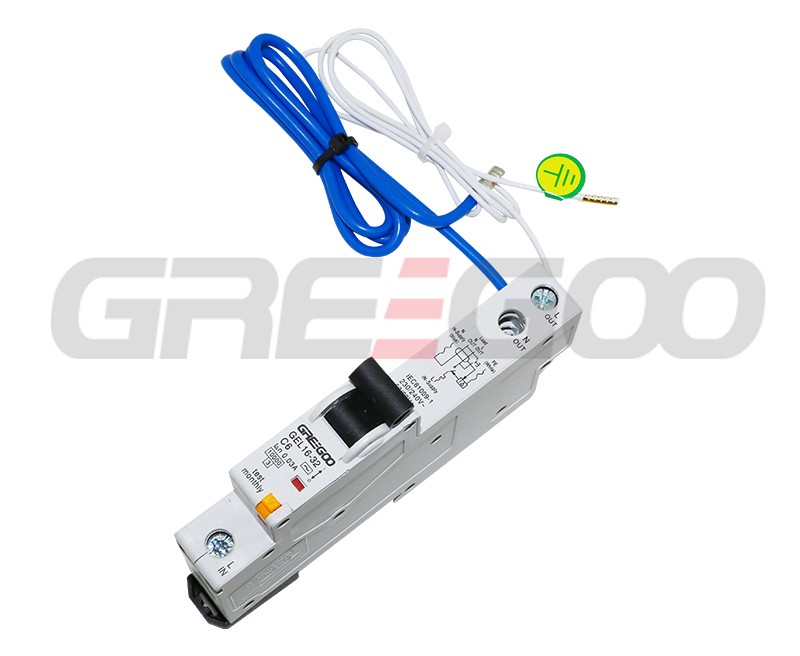

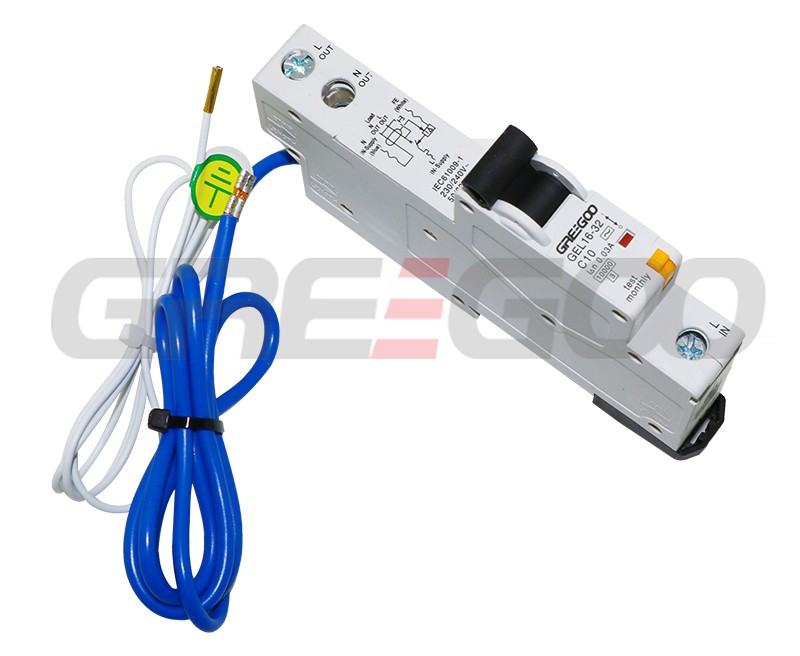

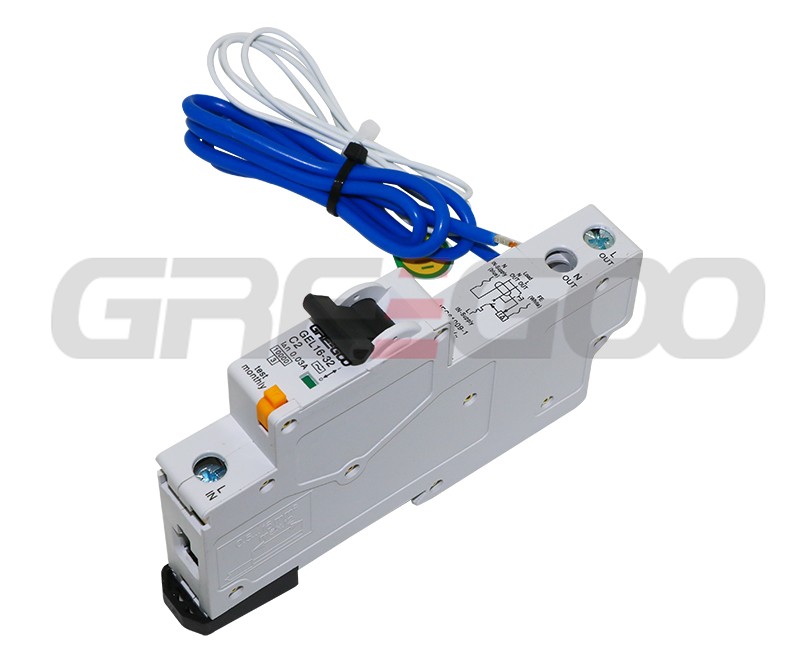

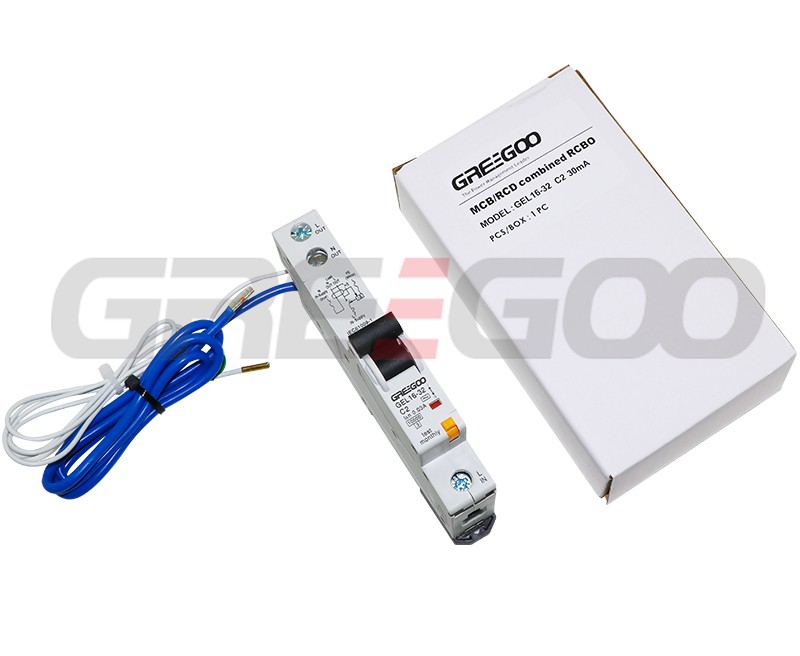

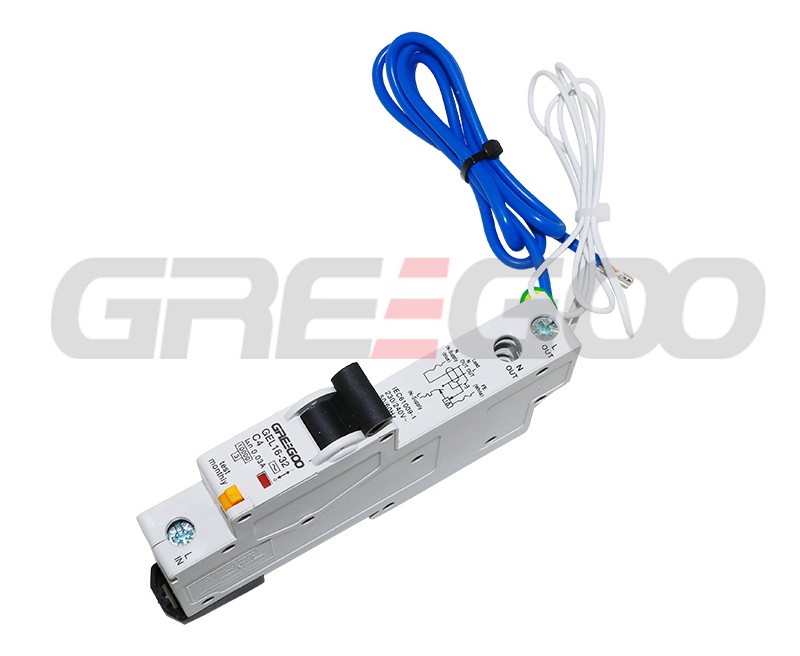

GEL16-32 single pole RCBO
| Model Number | GEL16-32 RCBO | |
| Tripping Mode | ELECTRONIC TYPE | |
| Pole No. | Pole | 1P |
| Standard Conformity | IEC 61009-1 | |
| Tripping Characteristic | B/C | |
| Rated Current (In) | A | 6, 10, 16, 20, 25, 32, 40 |
| Sensitivity (I △ n) | mA | 30, 100, 300 |
| Residual Tripping Current Range | 0.5I △ n~1I △ n | |
| Rated Voltage (Un) | Vac | 230/240 |
| Rated Insulation Voltage (Ui) | V | 660 |
| Rated Frequency | Hz | 50/60 |
| Type | AC/A | |
| Tripping Time | S | ≤0.1 |
| Shortcircuit Withstand Capacity | kA | 6 |
| Ambient Temperature | oC | -25 to 40 |
| Electrical Mechanical Operation | cycles | 4000 |
| Mounting | Din Rail (35 * 7.5) mm | |
| Degree of Protection | IP 20 | |
| Terminal Capacity (max) | mm2 | 10~16 |
| Connection Terminals | Screw Terminals 2.0Nm | |
| Certificate | CE |
