CFS-101/102, CFS-3/3S, CFS-105/106/201/302/304/305/306/502/504/702/402/404/802, CFS-01/1 foot switches. Foot switch, pedal switch, heavy duty foot switch, momentary foot switch, foot pedal, foot pedal switch, industrial foot switch.
| Designation | Model | Rating |
Type of switch enclosed & contact arrangement |
Cable type /length |
Cantact |
Action force |
Material of Rind |
|
Alternate action |
CFS-105 | 10A 250VAC | CMV16071C2 | 0.75mm2,3C/1 meter,1 meter~2 meter |
1A1B |
2kg | Plastic |
| CFS-305 | 10A 250VAC | CMV16071C2 | Accessory: Cable gland (No cable) | 3.1kg |
Aluminum Cast |
||
| CFS-405 | 10A 250VAC | CMV16071C2 | 3.1kg | ||||
| CFS-505 | 10A 250VAC | CMV16071C2 | 3.1kg | ||||
|
Protective guard foot switch |
CFS-302 | 15A 250VAC | CM-1704 |
Accessory: Cable gland (No cable) |
1A1B | 3.2kg |
Aluminum Cast |
| CFS-304 | 15A 250VAC | CM-1704*2 | 2A2B | 3.2kg | |||
| CFS-502 | 15A 250VAC | CM-1704 | 1A1B | 3.2kg | |||

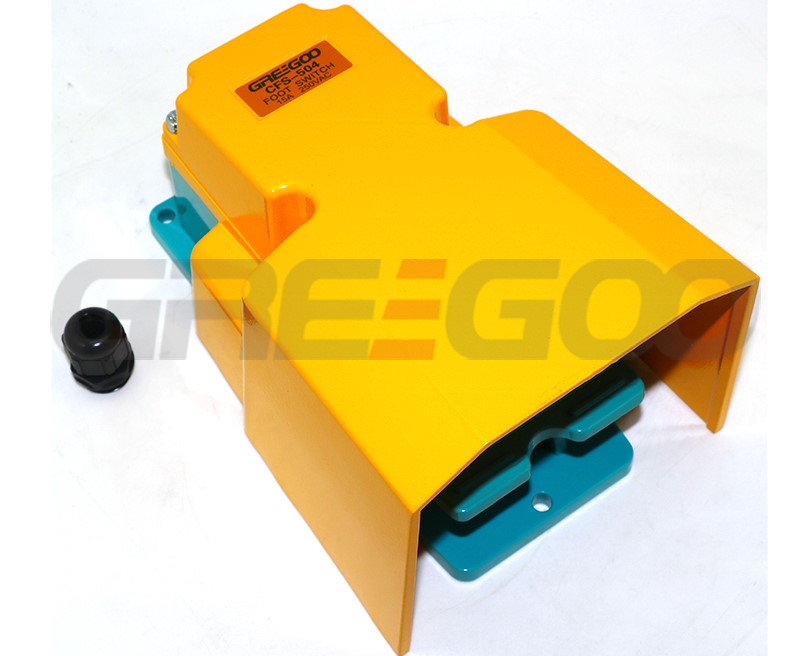

| CFS-504 | 15A 250VAC | CM-1704*2 | 2A2B | 3.2kg | |||

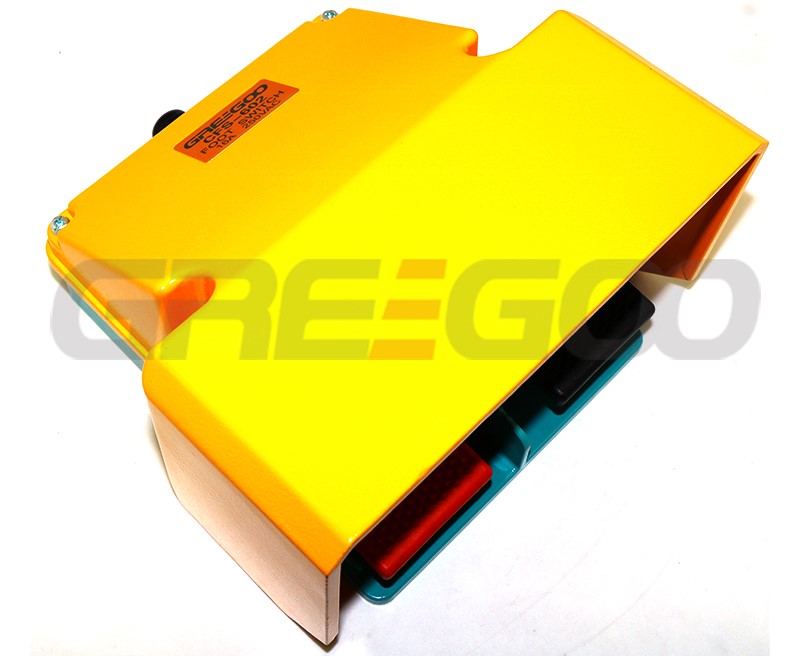

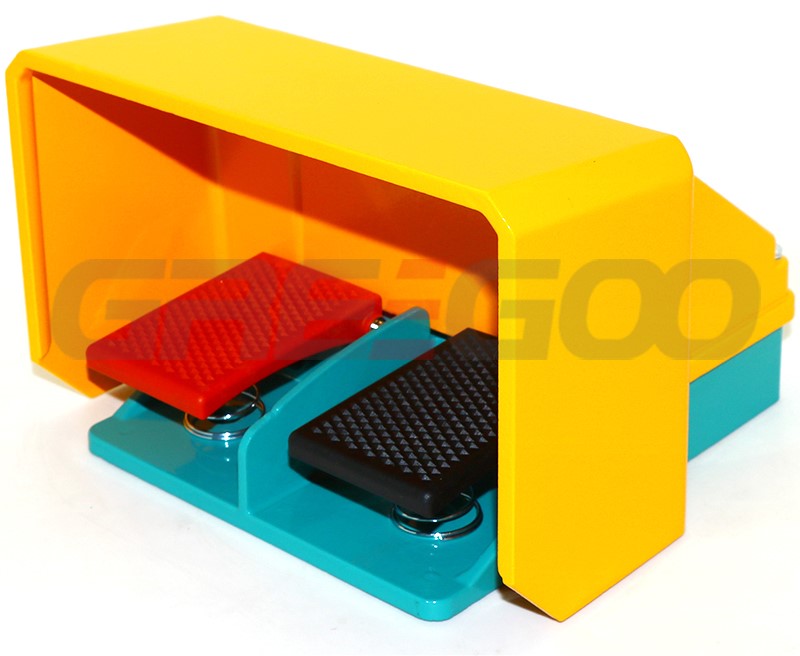

| CFS-602 | 15A 250VAC | Button spring type | 2*1A1B | 2.8kg | |||

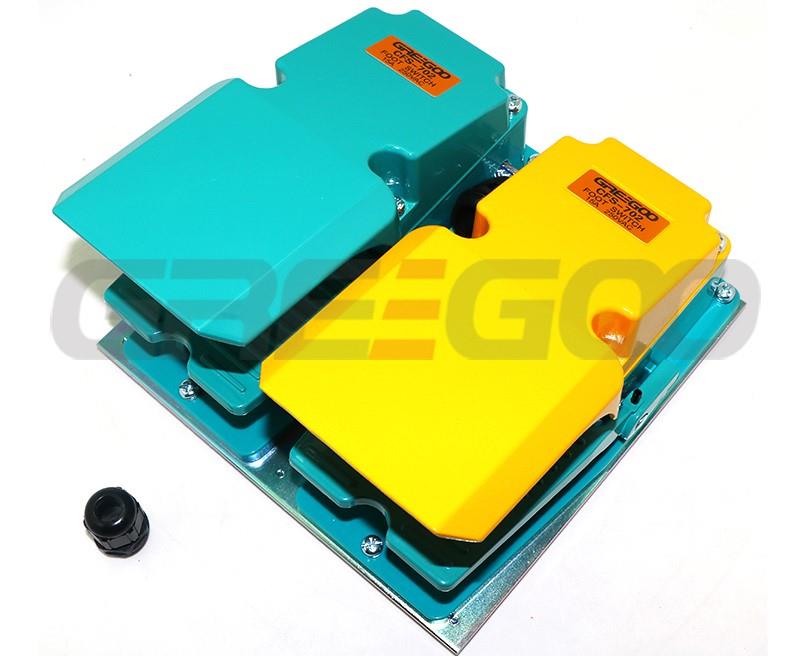

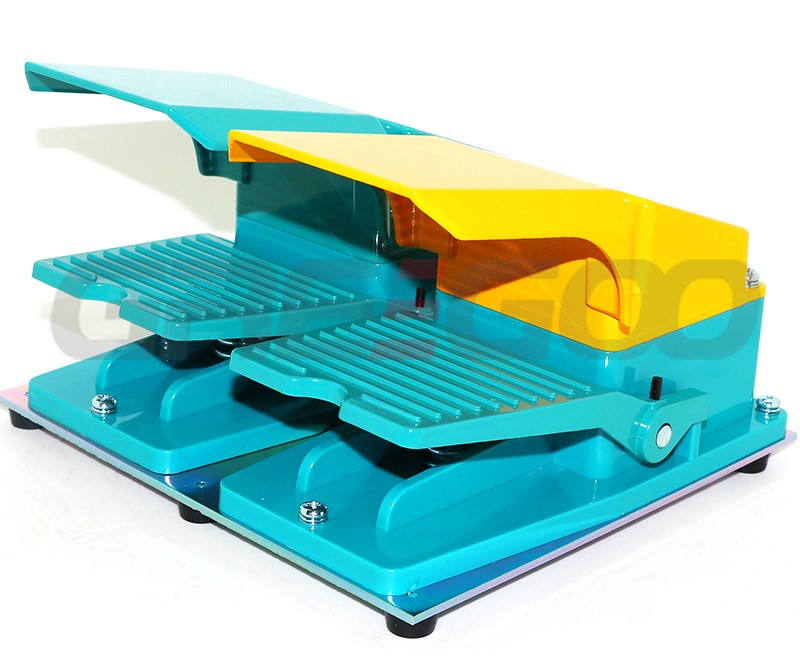

| CFS-702 | 15A 250VAC | CM-1704 | 2*1A1B | 3.2kg | |||
|
Large type |
CFS-402 | 15A 250VAC | CM-1704 | 1A1B | 3.2kg | ||
| CFS-404 | 15A 250VAC | CM-1704*2 | 2A2B | 3.2kg | |||
| CFS-802 | 15A 250VAC | CM-1704 | 2*1A1B | 3.2kg |
