Foot pedal switch introduction
Foot Pedal Switches
A foot pedal switch is a device operated by foot to switch on or off electrical or mechanical equipment, freeing the user's hands for other tasks.
Function:
Controls the power supply to equipment.
Types:
- Single pedal: One button for simple on/off.
- Dual pedal: Two buttons for two operations.
- Multi-position pedal: Multiple buttons for various operations.
- Variable speed pedal: Control speed with pedal pressure.
Applications:
Medical instruments, industrial production, office automation, musical devices, workshop tools, etc.
Advantages:
Convenient operation, increased work efficiency, high safety, reduces hand fatigue.

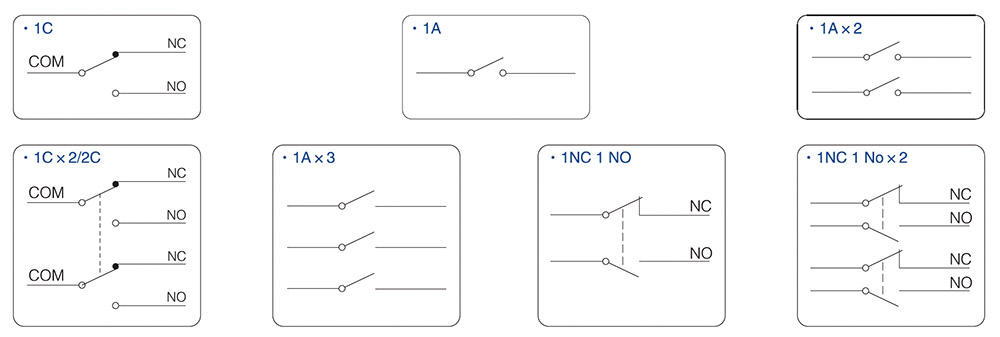

Contact form of foot switch
Product Details

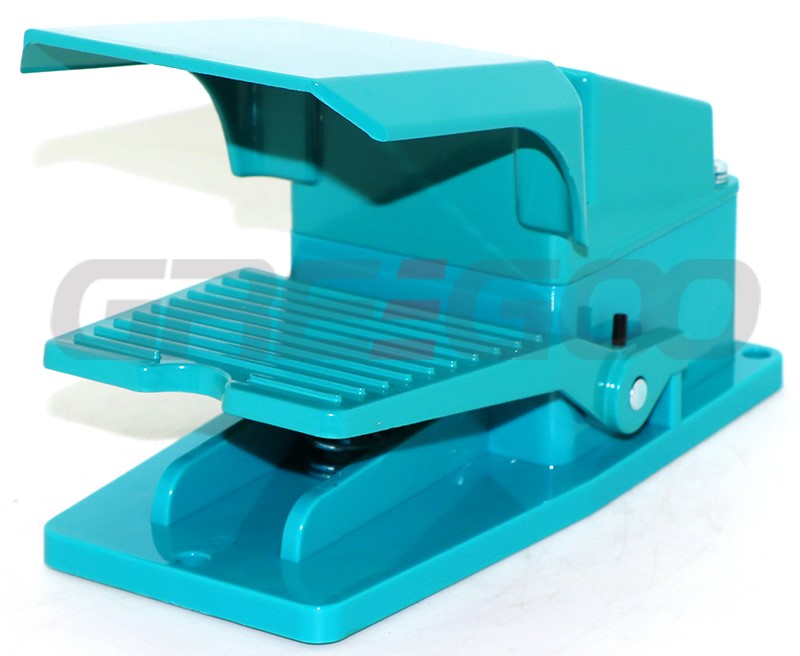

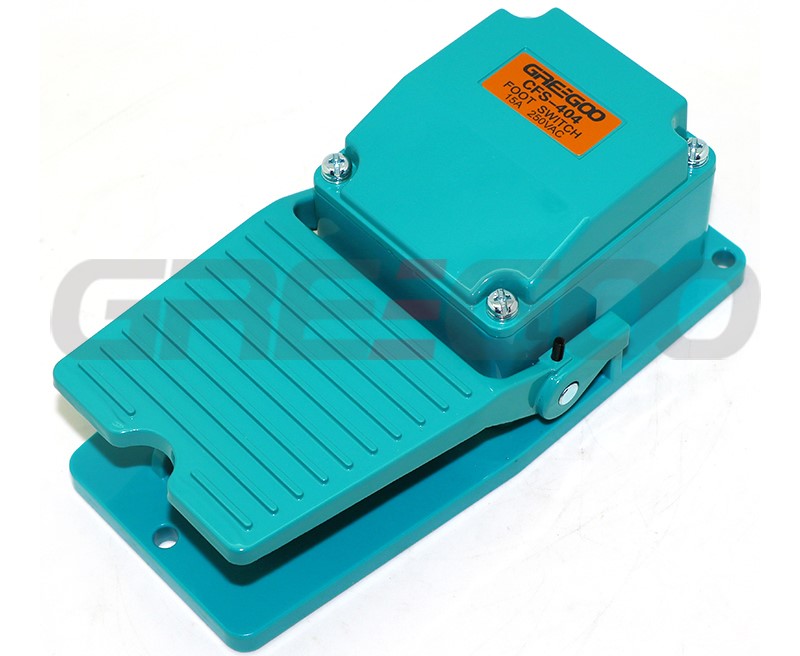

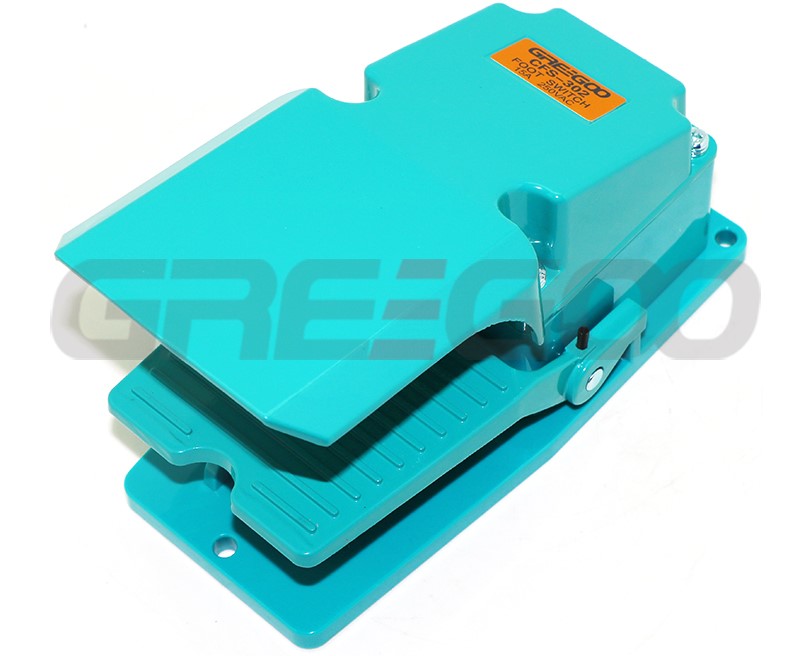

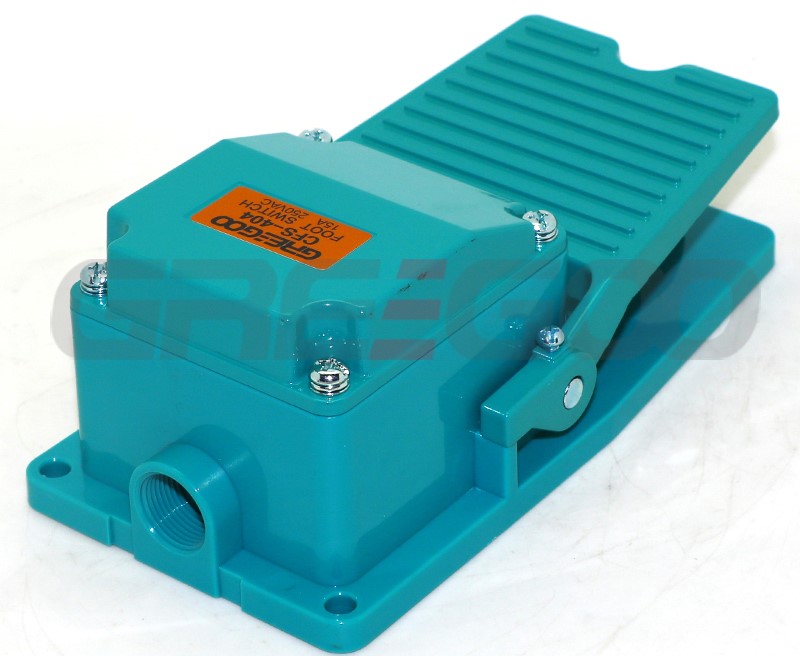

CFS-101/102, CFS-3/3S, CFS-105/106/201/302/304/305/306/502/504/702/402/404/802, CFS-01/1 foot switches. Foot switch, pedal switch, heavy duty foot switch, momentary foot switch, foot pedal, foot pedal switch, industrial foot switch.
| Designation | Model | Rating |
Type of switch enclosed & contact arrangement |
Cable type /length |
Cantact |
Action force |
Material of Rind |
|
Standard type Momentary Action |
CFS-101 | 10A 250VAC | CMV-100D | 0.75mm2,3C/0.5 meter,1 meter~3 meter | 1A1B | 1.2kg |
Plastic |
| CFS-102 | 15A 250VAC | CM-1704 | 0.75mm2,3C/1 meter,1.5 meter~2 meter | 1A1B | 1.1kg | ||
| CFS-2 | 10A 250VAC | CMV-100D | 0.5mm2,3C/1 meter~3 meter | 1A1B | 1.1kg |
Aluminum Cast |
|

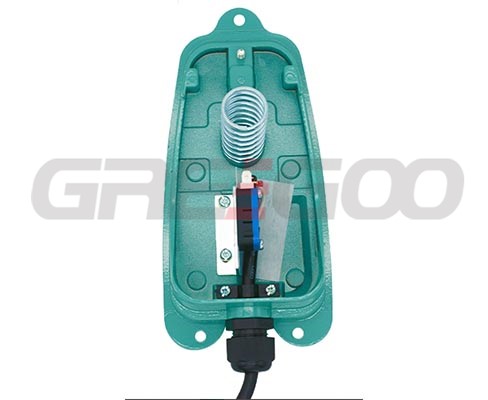

| CFS-3 | 10A 250VAC | CMV-100D | 0.75mm2,3C/0.5 meter,1 meter~3 meter | 1A1B | 1.2kg | ||

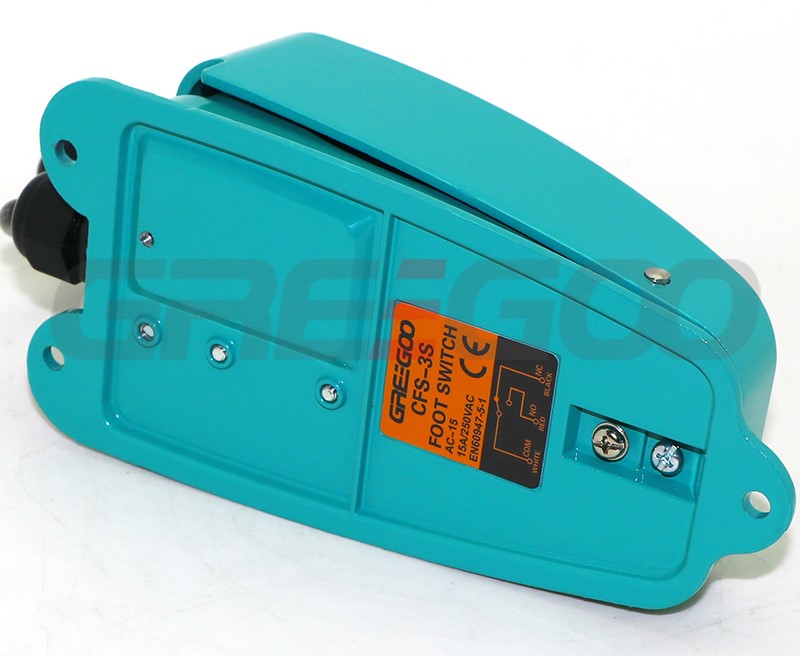

| CFS-3S | 15A 250VAC | CM-1704 | 0.75mm2,3C/1 meter,1 meter~3 meter | 1A1B | 1.1kg | ||
|
Alternate action |

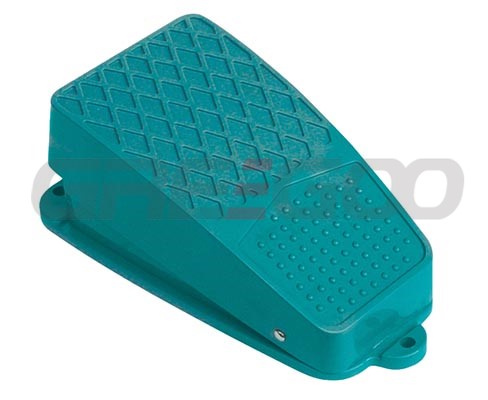

CFS-105 | 10A 250VAC | CMV16071C2 | 0.75mm2,3C/1 meter,1 meter~2 meter |
1A1B |
2kg | Plastic |

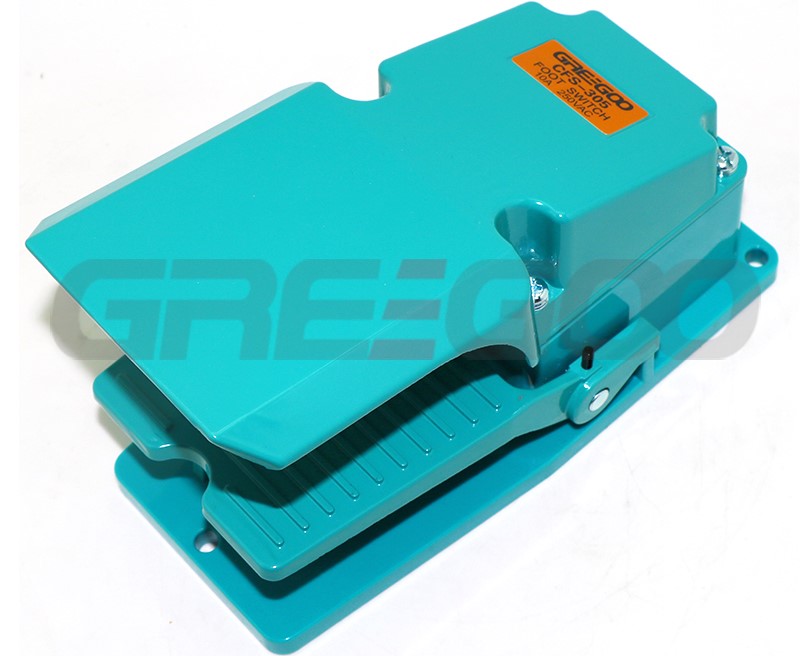

| CFS-305 | 10A 250VAC | CMV16071C2 | Accessory: Cable gland (No cable) | 3.1kg |
Aluminum Cast |
||
| CFS-405 | 10A 250VAC | CMV16071C2 | 3.1kg | ||||
| CFS-505 | 10A 250VAC | CMV16071C2 | 3.1kg | ||||
|
Mini foot switch Front end push |

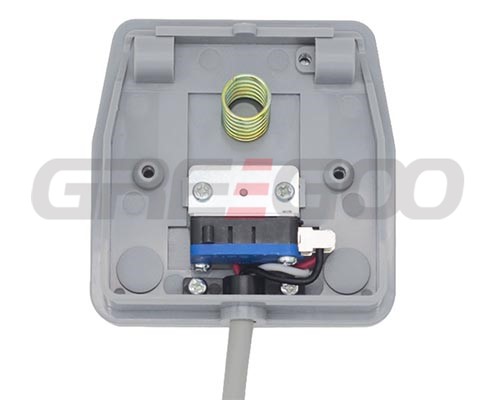

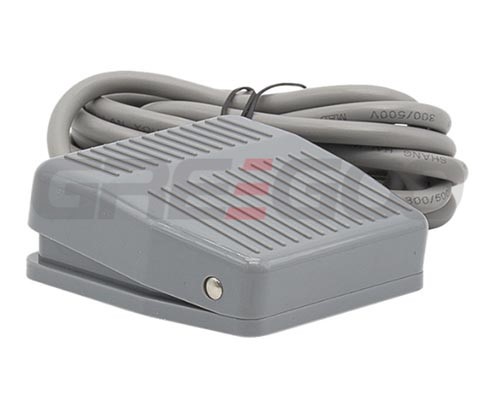

CFS-201 | 10A 250VAC | CMV-100D | 0.5mm2,3C/1 meter~3 meter | 1A1B | 0.7kg |
Plastic |

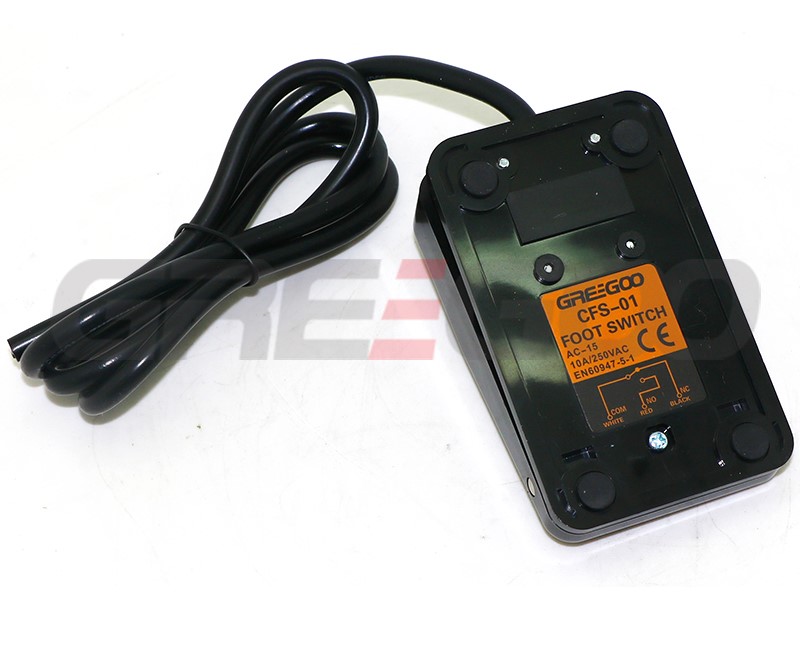

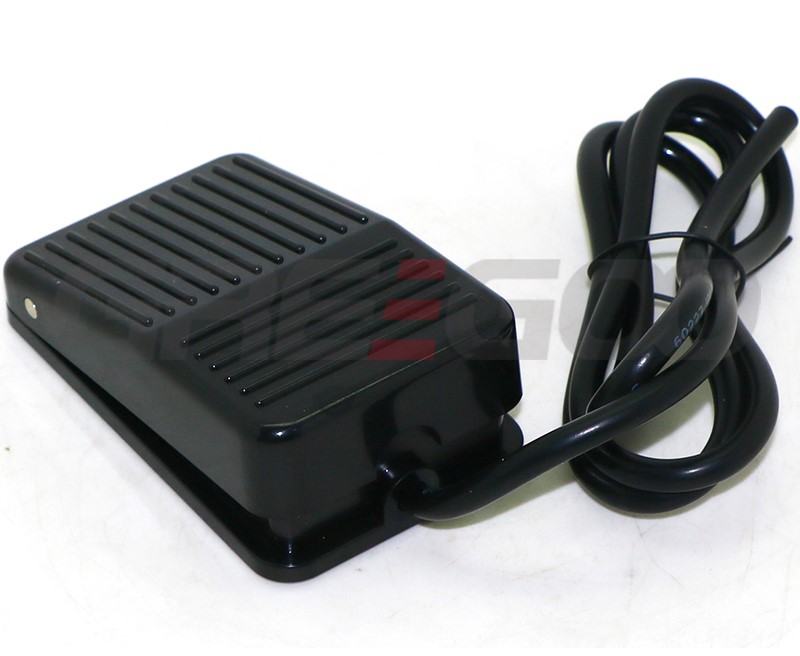

| CFS-01 | 10A 250VAC | CMV-100D | 0.5mm2,3C/1 meter~3 meter | 1A1B | 0.7kg | ||

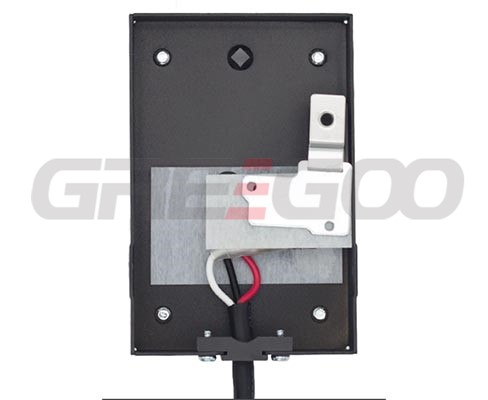

| CFS-1 | 10A 250VAC | CMV-100D | 0.5mm2,3C/1 meter~3 meter | 1A1B | 0.9kg | Iron |
