Current Transformer (low voltage)PDF

•GENERAL
Current Transformer is used to transform the high AC current to small easily manageable values. They're connected with the Panel Meter or Relay and they can help to measure the current or protect the equipments. Low voltage current transformers are manufactured as of two types for measuring CT and protection CT.


•MEASURING CT

Measuring current transformers are constructed to feed on other low voltage apparatus such as measuring instruments, relays, watt-hour meters (kW meter) and these type of current transformers are mainly used 0.5 and 1 class to transfer the current from highest rated current to rated secondary current.


•PROTECTION CT

Protection current transformers are constructed to feed the protection relay. These type of current transformer are mainly used 5P. (Customer supplied when required.)


•REFERENCE STANDARDS

IEC60044-1, VDE0414-44-1, DINS7414, B53938, 8s7626, EN60044-1.


•TEST VOLTAGE
3kV AC (per min.)


•FREQUENCY

50/60Hz


•OPERATING TEMPERATURE

-25-C-+50-C


•ACCURACY

Measuring 0.5; 1.0; 3.0 (Special accuracy upon request)


•BURDEN
Ranging from 1.5-30VA


•RATED SECONDARY CURRENT
5A (1A upon request)


•RATED PRIMARY CURRENT
Up to 6000A


•INSULATION
Class B for Casing type CT
Class A for Taping type CT


•CASING
Non-flammable, polycarbonate self extinguishing ABS/PC


•TERMINAL MARKS
VO to UL94
Primary Pl & P2(K & L)
Secondary SI & S2(K & L)


MSQ Current Transformer

Type

Ratio(A)

Burden(VA)

Turns through core

Class:0.5

Class:1.0

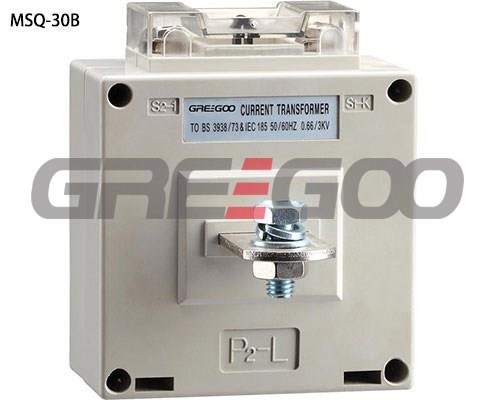

MSQ-30B

5/5

5

7.5

1

10/5

5

7.5

1

15/5

5

7.5

1

20/5

5

7.5

1

25/5

5

7.5

1

30/5

5

7.5

1

50/5

5

7.5

1

60/5

5

7.5

1

100/5

5

7.5

1

150/5

5

7.5

1

200/5

5

7.5

1

150/5

5

7.5

1

300/5

5

7.5

1


Type

Ratio(A)

Burden(VA)

Turns through core

Class:0.5

Class:1.0

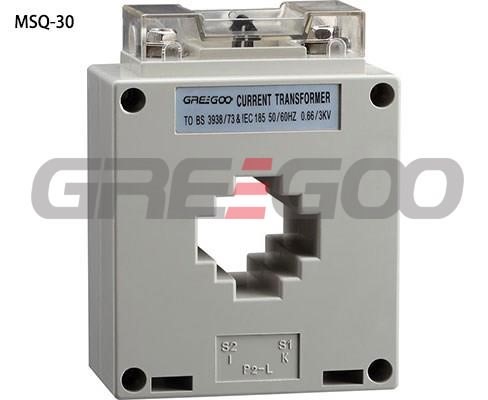

MSQ-30

30/5


1.0

1

40/5


1.0

1

50/5


1.0

1

60/5

1

1.0

1

75/5

1.5

1.5

1

80/5

2.5

2.5

1

100/5

5

5

1

150/5

5-10

5-10

1

200/5

5-10

5-10

1

250/5

5-10

5-10

1

300/5

5-10

5-10

1


Type

Ratio(A)

Burden(VA)

Turns through core

Class:0.5

Class:1.0

MSQ-40

100/5

2.5

2.5

1

150/5

3

3

1

200/5

5

5-10

1

250/5

5-10

5-10

1

300/5

5-10

5-10

1

400/5

5-10

5-10

1

500/5

5-10

5-10

1


Type

Ratio(A)

Burden(VA)

Turns through core

Class:0.5

Class:1.0

MSQ-60

250/5

5

5

1

300/5

5

5

1

400/5

5-10

5-10

1

500/5

5-10

5-10

1

600/5

10-15

10-15

1

750/5

10-15

10-15

1

800/5

10-15

10-15

1

1000/5

15

15

1


Type

Ratio(A)

Burden(VA)

Turns through core

Class:0.5

Class:1.0

MSQ-100

1500/5

15

15

1

1600/5

15

15

1

2000/5

15

15

1

2250/5

15

15

1

2500/5

15

15

1

3000/5

15

15

1



RCT Current Transformer

Type

Ratio(A)

Burden(VA)

Turns through core

Class:0.5

Class:1.0

RCT-25

75/5

2.5

2.5

1

100/5

2.5

2.5

1


Type

Ratio(A)

Burden(VA)

Turns through core

Class:0.5

Class:1.0

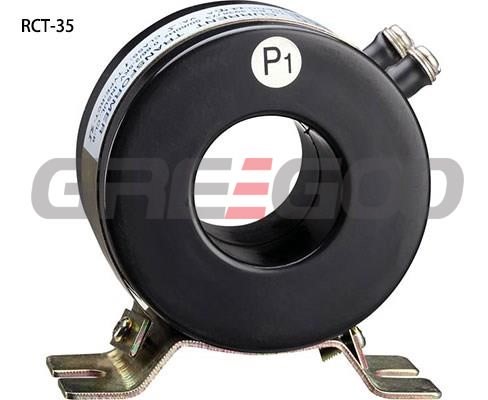

RCT-35

75/5

2.5

2.5

1

100/5

2.5

2.5

1

150/5

5

5

1

200/5

5

5

1

250/5

5

5

1

300/5

5

5

1


Type

Ratio(A)

Burden(VA)

Turns through core

Class:0.5

Class:1.0

RCT-60

400/5

5

5

1

500/5

10

10

1

600/5

10

10

1

750/5

10

10

1

800/5

10

10

1

1000/5

10

10

1

1200/5

10

10

1


Type

Ratio(A)

Burden(VA)

Turns through core

Class:0.5

Class:1.0

RCT-90

800/5

10

10

1

1000/5

10

10

1

1200/5

10

10

1

1500/5

10

10

1

1600/5

10

10

1


Type

Ratio(A)

Burden(VA)

Turns through core

Class:0.5

Class:1.0

RCT-110

1500/5

10

10

1

1600/5

10

10

1

2000/5

20

20

1

2500/5

20

20

1

3000/5

20

20

1

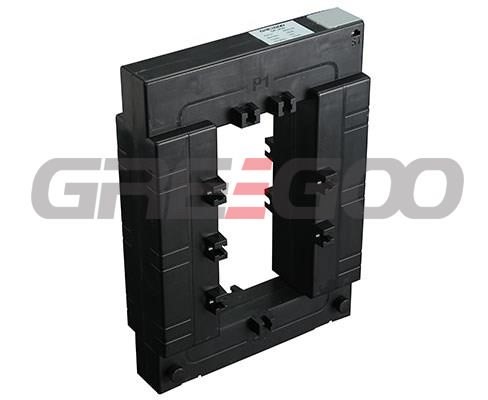

DP Current Transformer

Type

Ratio(A)

Burden(VA)

Weight(kg)

Class:3.0

Class:1.0

Class:0.5

DP-23

100/5

1.5

-

-

0.88

150/5

2.5

-

-

0.88

200/5


2.5

-

0.88

250/5


2.5

-

0.88

300/5


2.5

2.5

0.88

400/5


2.5

2.5

0.88


Type

Ratio(A)

Burden(VA)

Weight(kg)

Class:3.0

Class:1.0

Class:0.5

DP-58

250/5


2.5

2.5

0.98

300/5


2.5

2.5

0.98

400/5


2.5

2.5

0.98

500/5


5

2.5

0.98

600/5


5

2.5

0.98

750/5


6.25

2.5

0.98

800/5


7.5

2.5

0.98

1000/5


10

5

0.98


Type

Ratio(A)

Burden(VA)

Weight(kg)

Class:3.0

Class:1.0

Class:0.5

DP-88

250/5


3.75

1.5

1.10

300/5


5

1.5

1.10

400/5


5

1.5

1.10

500/5


5

2.5

1.10

600/5


5

2.5

1.10

750/5


5

2.5

1.10

800/5


5

2.5

1.10

1000/5


10

5

1.10

1600/5


15

5

1.10


Type

Ratio(A)

Burden(VA)

Weight(kg)

Class:3.0

Class:1.0

Class:0.5

DP-812

500/5


10

2.5

1.20

600/5


10

2.5

1.20

750/5


10

2.5

1.20

800/5


10

2.5

1.20

1000/5


15

5

1.20

1200/5


20

6.25

1.20

1250/5


20

7.5

1.20

1500/5


20

7.5

1.20

2000/5


20

10

1.20

2500/5


20

15

1.20


Type

Ratio(A)

Burden(VA)

Weight(kg)

Class:3.0

Class:1.0

Class:0.5

DP-816

1000/5


20

10

3.26

1500/5


25

15

3.26

2000/5


25

15

3.26

2500/5


25

15

3.26

3000/5


30

20

3.26

4000/5


30

20

3.26

5000/5


30

20

3.26
