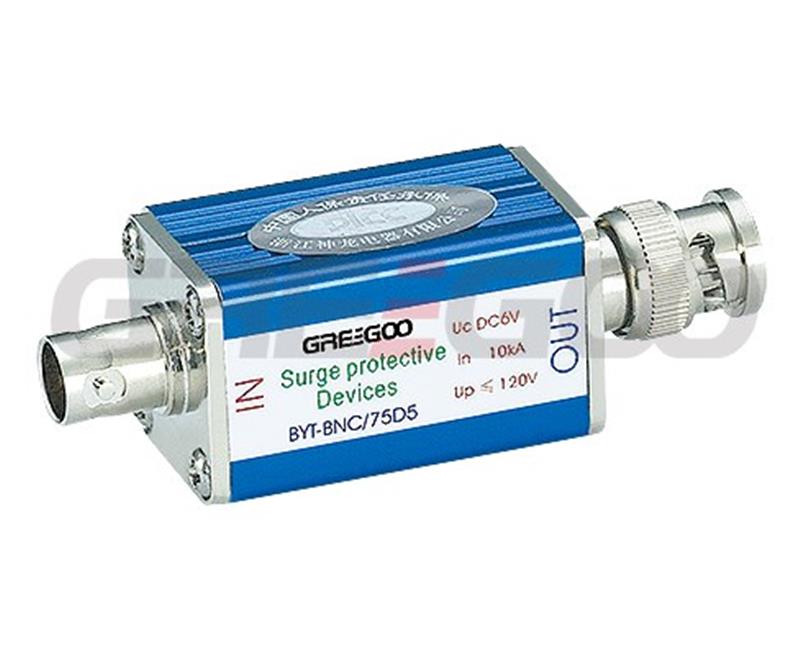

BYT Coaxial surge protective devices
| Model | Unit | BYT-BNC/75B5 | BYT-BNC/75C5 | BYT-BNC/75D5 | BYT-BNC/75E5 | BYT-BNC/75F5 |
| Rated operational voltage (Un) | V | 5V DC | 5V DC | 5V DC | 5V DC | 5V DC |
| Nominal discharge current (8/20us) In | kA | 10 | 10 | 10 | 10 | 10 |
| Voltage protection level (Up) | V | 120 | 120 | 120 | 120 | 120 |
| Frequency range | MHz | 1 | 2 | 10 | 40 | 100 |
| Insert loss | dB | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Reponse time | ns | 10 | 10 | 10 | 10 | 10 |
| Model | Unit | BYT-N/50B12 | BYT-N/50C12 | BYT-N/50D12 | BYT-N/50E12 | BYT-N/50F12 |
| Rated operational voltage (Un) | V | 12V DC | 12V DC | 12V DC | 12V DC | 12V DC |
| Nominal discharge current (8/20us) In | kA | 10 | 10 | 10 | 10 | 10 |
| Voltage protection level (Up) | V | 120 | 120 | 120 | 120 | 120 |
| Frequency range | MHz | 1 | 2 | 10 | 40 | 100 |
| Insert loss | dB | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Reponse time | ns | 10 | 10 | 10 | 10 | 10 |
| Model | Unit | BYT-F/75B24 | BYT-F/75C24 | BYT-F/75D24 | BYT-F/75E24 | BYT-F/75F24 |
| Rated operational voltage (Un) | V | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC |
| Nominal discharge current (8/20us) In | kA | 10 | 10 | 10 | 10 | 10 |
| Voltage protection level (Up) | V | 120 | 120 | 120 | 120 | 120 |
| Frequency range | MHz | 1 | 2 | 10 | 40 | 100 |
| Insert loss | dB | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Reponse time | ns | 10 | 10 | 10 | 10 | 10 |
