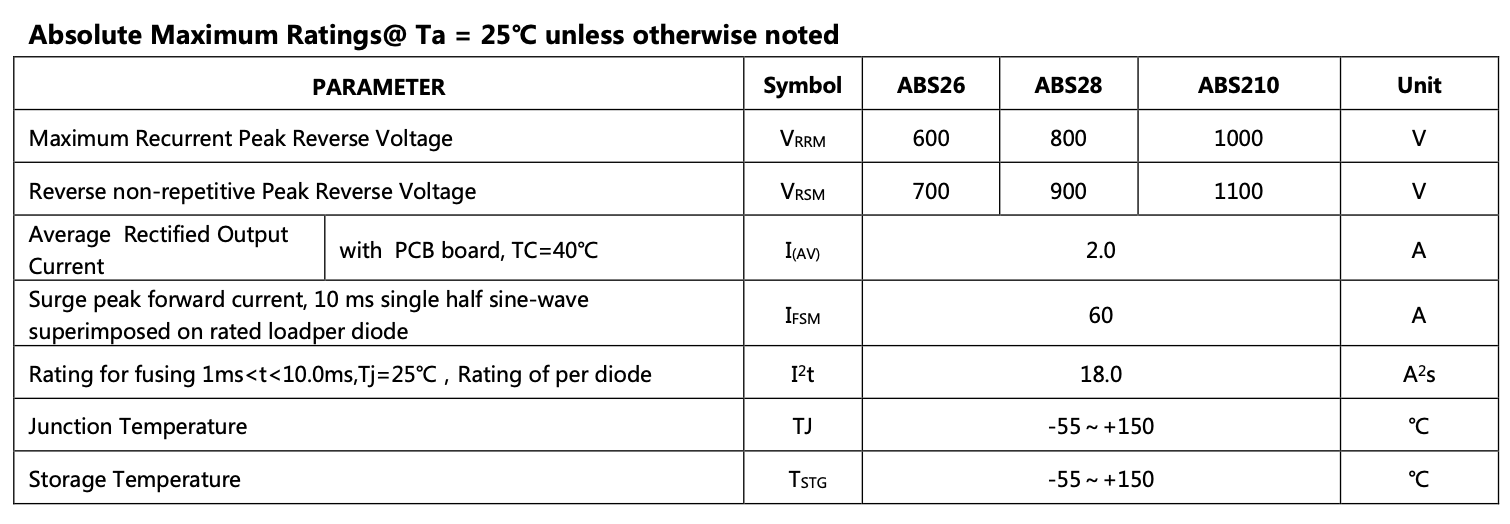

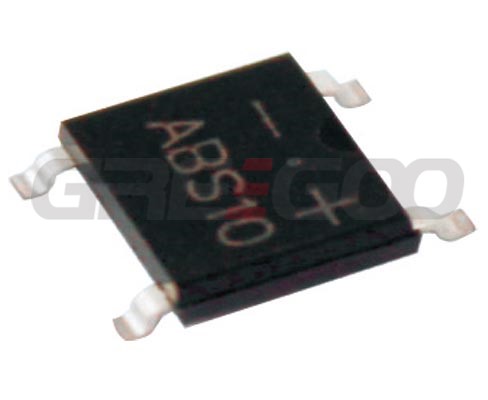

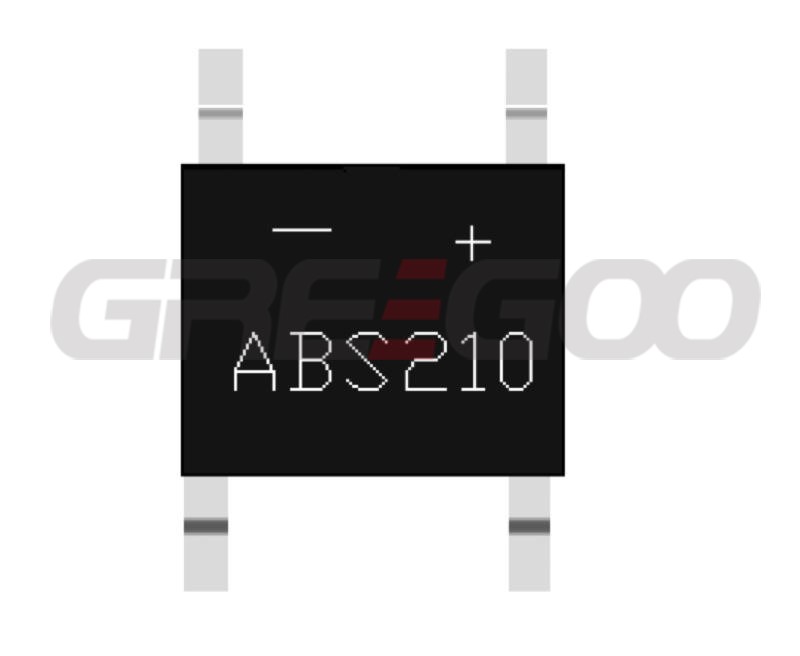

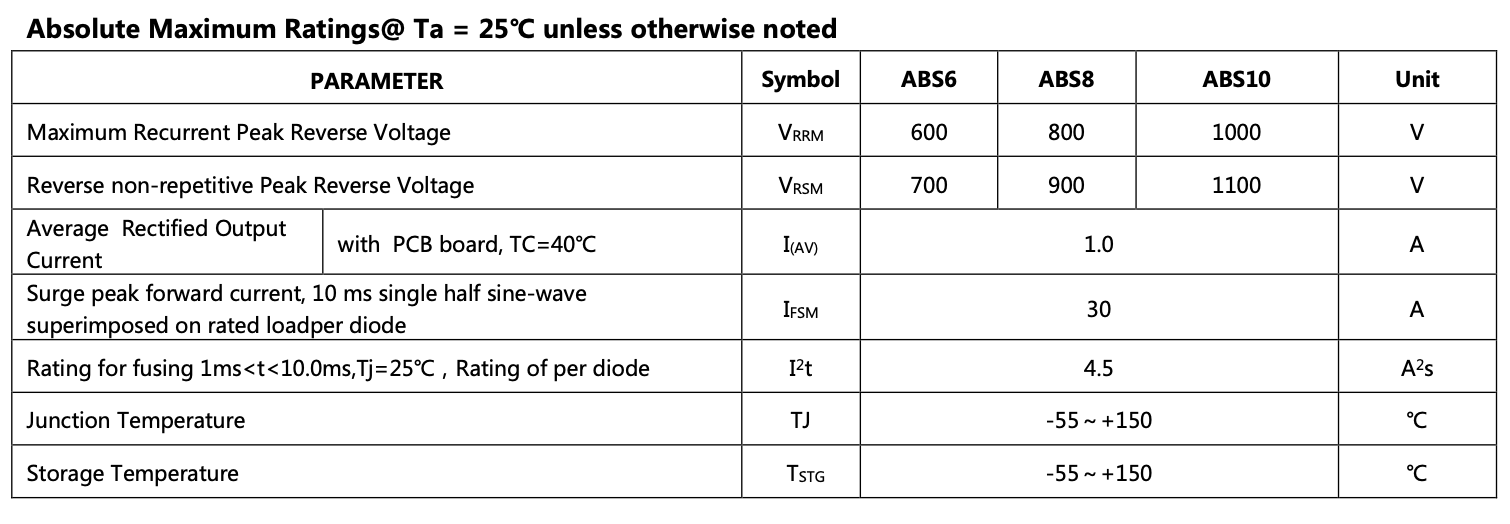

ABS10 & ABS210 Glass Passivated Bridge Rectifier

Features
Glass passivated chip
Low Reverse Leakage Current
High surge current capability to 30 Amperes
Compliant to RoHS directive 2011/65/EU


Applications

Household Electric Appliances
General purpose single phase bridge rectifier
Switching mode power supply
Industrial power supply

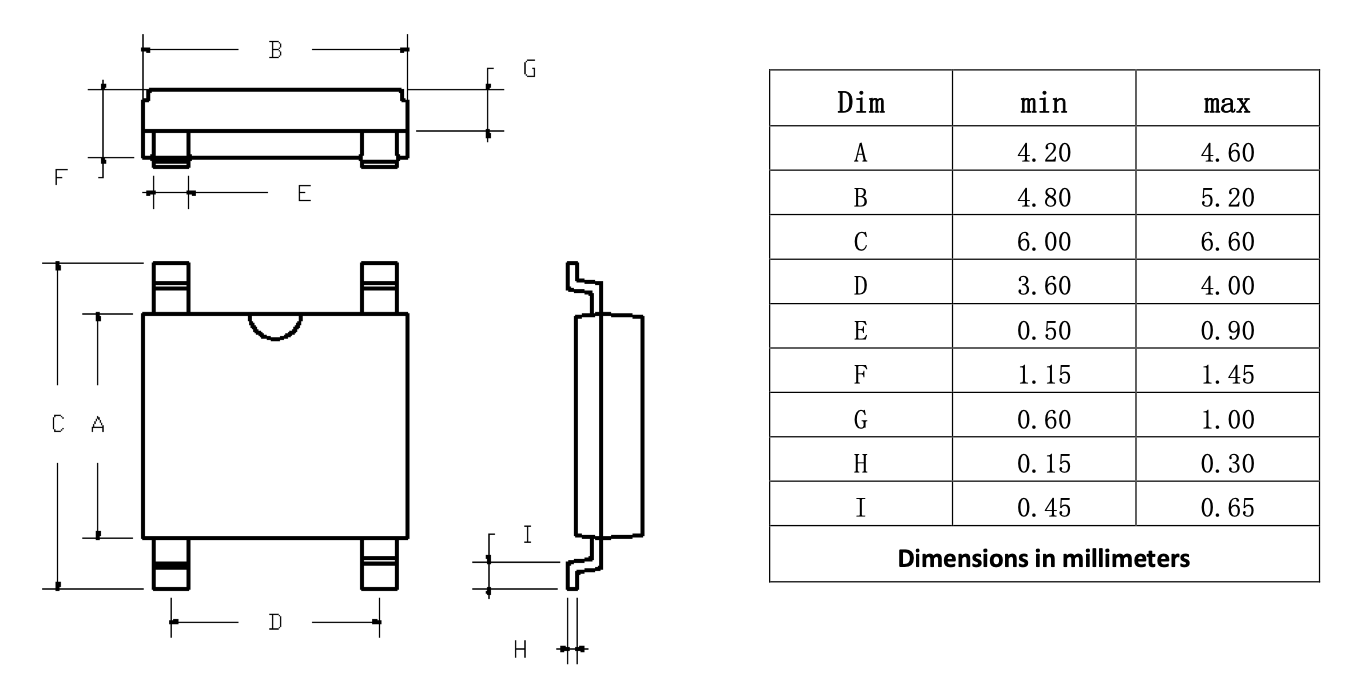

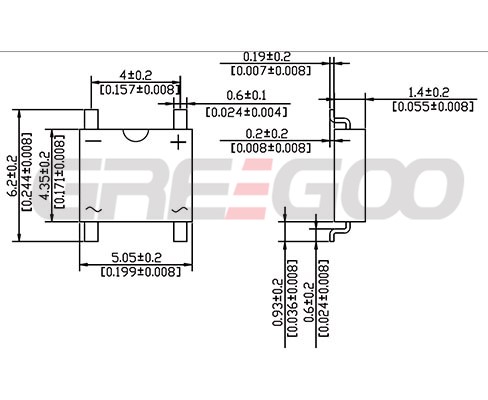

Mechanical Data

Case:Molded plastic case
Polarity :Polarity symbols being marked on body

Weight: About 0.1 grams
