Product Features

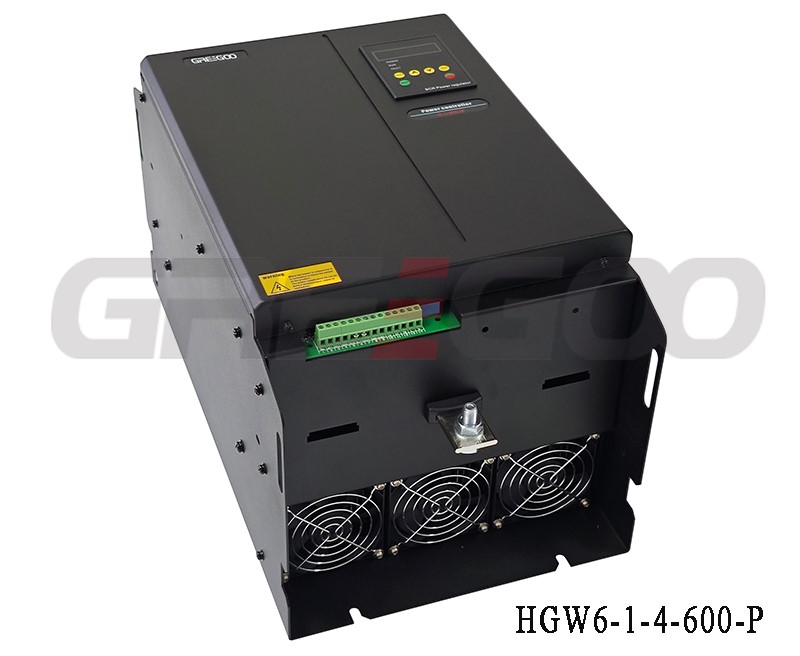

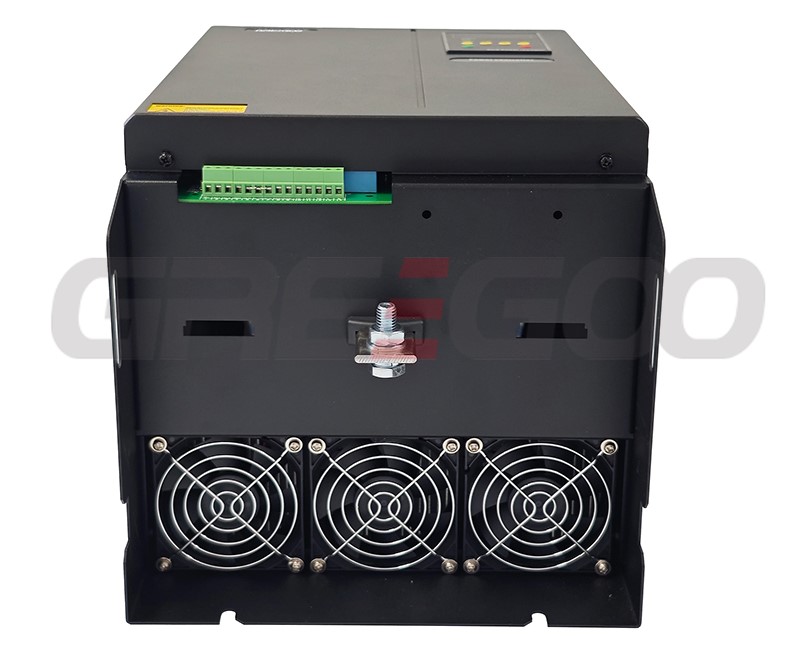

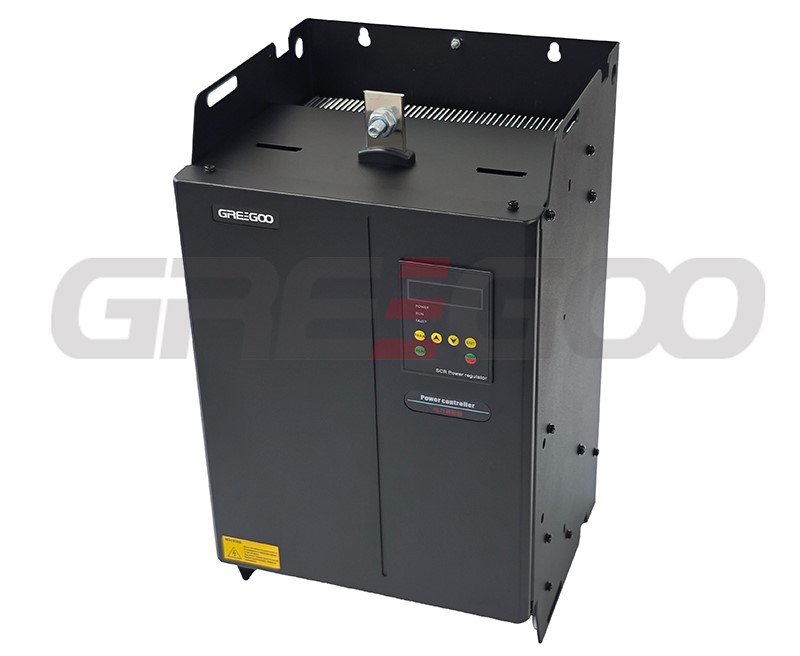

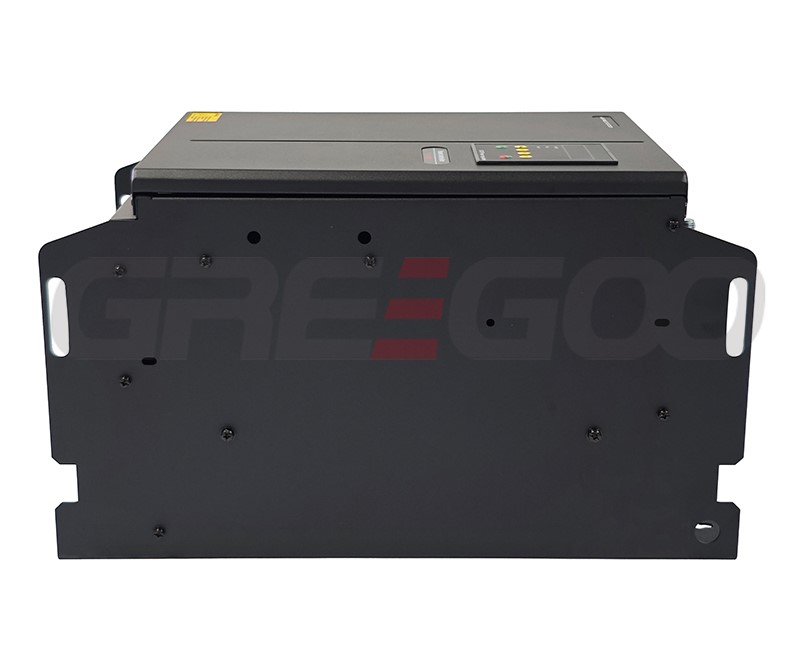

Single phase digital scr controller 450A to 600A

◎ Adopts dual-core MCU microcontroller control technology with built-in PID closed-loop control for 100% linear output.

◎ Single-row digital display with customizable display of five parameters: input, output, voltage, current, and power.

◎ Dual-channel signal input design, compatible with both current and voltage signal inputs.

◎ Multiple control modes: constant voltage, constant current, constant power, open-loop, and zero-position control.

◎ Multiple protection functions: phase loss, overcurrent, overtemperature, and wire-break protection.

◎ Suitable for various load applications, with MODBUS RTU communication enabling direct output control via a host computer.

Specification

Model	Phase	Input Voltage	Rated current	Load Power (KW)		Weight (KG)	Control mode	Control signal
				220V	380V
HGW6-1-4-450-P	1Ph	330-440V	450	79	135	25	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-4-500-P	1Ph	330-440V	500	88	150	25	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-4-600-P	1Ph	330-440V	600	100	180	25	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-4-450-C	1Ph	330-440V	450	79	135	25	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-500-C	1Ph	330-440V	500	88	150	25	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-600-C	1Ph	330-440V	600	100	180	25	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-450-CV	1Ph	330-440V	450	79	135	25	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-500-CV	1Ph	330-440V	500	88	150	25	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-600-CV	1Ph	330-440V	600	100	180	25	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-450-Z	1Ph	330-440V	450	79	135	25	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-4-500-Z	1Ph	330-440V	500	88	150	25	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-4-600-Z	1Ph	330-440V	600	100	180	25	Zero crossing cycle power regulating	4-20mA/0-5V

HGW6-1-2-450-P	1Ph	110-220V	450	79	135	25	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-500-P	1Ph	110-220V	500	88	150	25	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-600-P	1Ph	110-220V	600	100	180	25	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-450-C	1Ph	110-220V	450	79	135	25	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-500-C	1Ph	110-220V	500	88	150	25	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-600-C	1Ph	110-220V	600	100	180	25	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-450-CV	1Ph	110-220V	450	79	135	25	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-500-CV	1Ph	110-220V	500	88	150	25	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-600-CV	1Ph	110-220V	600	100	180	25	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-450-Z	1Ph	110-220V	450	79	135	25	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-2-500-Z	1Ph	110-220V	500	88	150	25	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-2-600-Z	1Ph	110-220V	600	30.5	180	25	Zero crossing cycle power regulating	4-20mA/0-5V
