Product Features

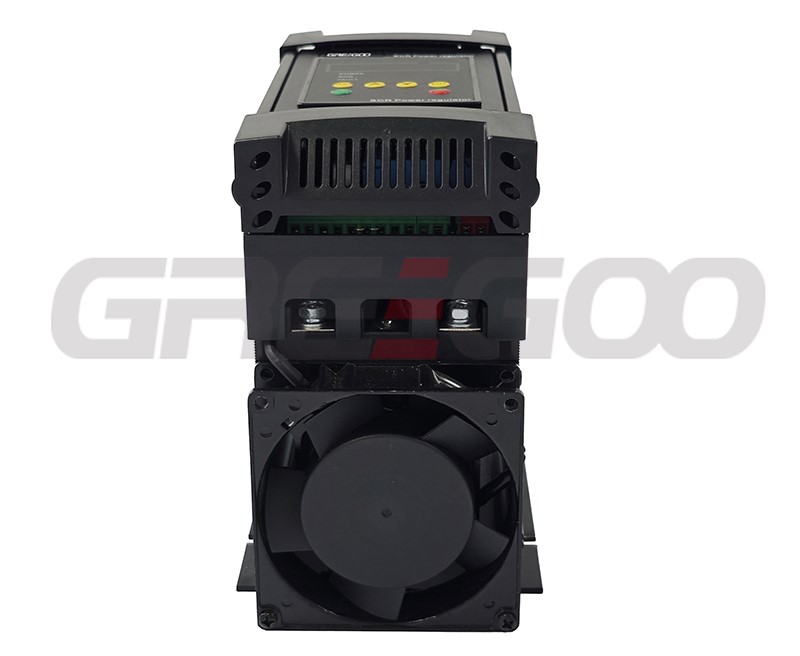

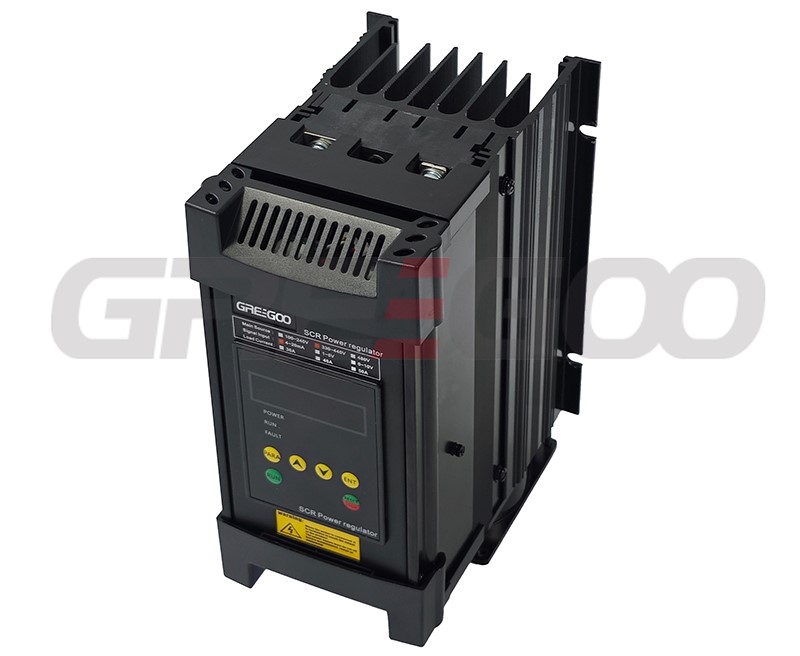

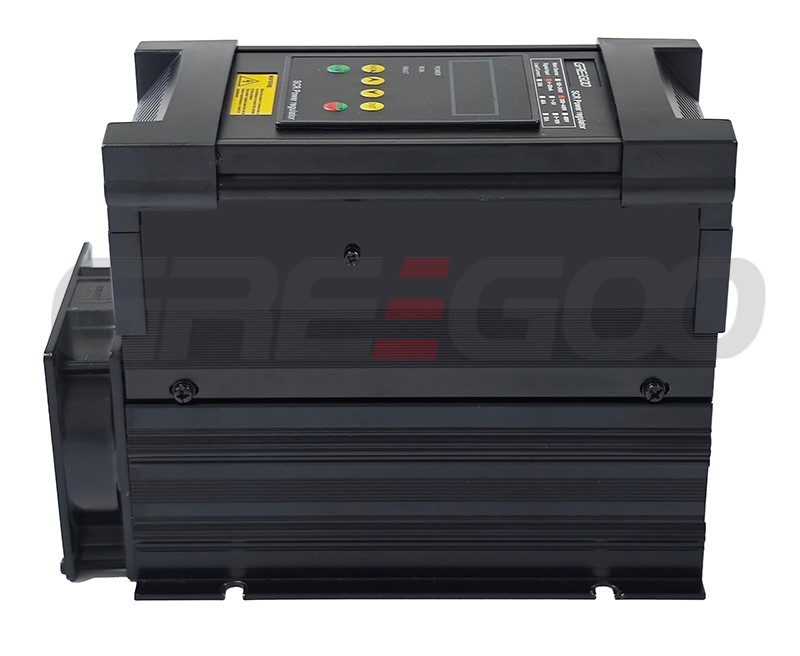

Single phase digital scr controller 50A to 100A

◎ Adopts dual-core MCU microcontroller control technology with built-in PID closed-loop control for 100% linear output.

◎ Single-row digital display with customizable display of five parameters: input, output, voltage, current, and power.

◎ Dual-channel signal input design, compatible with both current and voltage signal inputs.

◎ Multiple control modes: constant voltage, constant current, constant power, open-loop, and zero-position control.

◎ Multiple protection functions: phase loss, overcurrent, overtemperature, and wire-break protection.

◎ Suitable for various load applications, with MODBUS RTU communication enabling direct output control via a host computer.

Specification

Model	Phase	Input Voltage	Rated current	Load Power (KW)		Weight (KG)	Control mode	Control signal
				220V	380V
HGW6-1-4-050-P	1Ph	330-440V	50	8.8	15.2	2.3	Phase angle (constant voltage limiting current)	4-20mA/0-5V

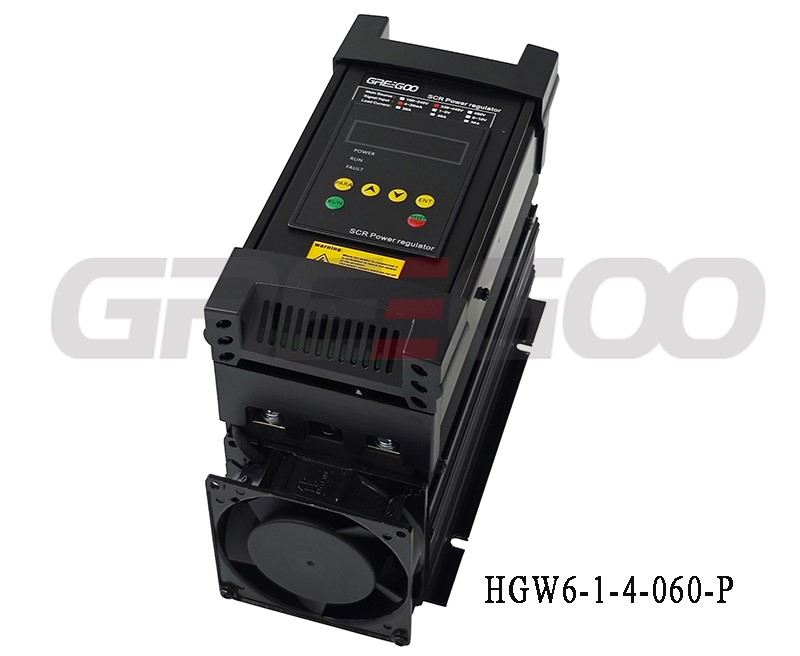

HGW6-1-4-060-P	1Ph	330-440V	60	10.5	18.2	2.3	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-4-075-P	1Ph	330-440V	75	13.2	22.8	2.3	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-4-080-P	1Ph	330-440V	80	14	24.3	2.3	Phase angle (constant voltage limiting current)	4-20mA/0-5V

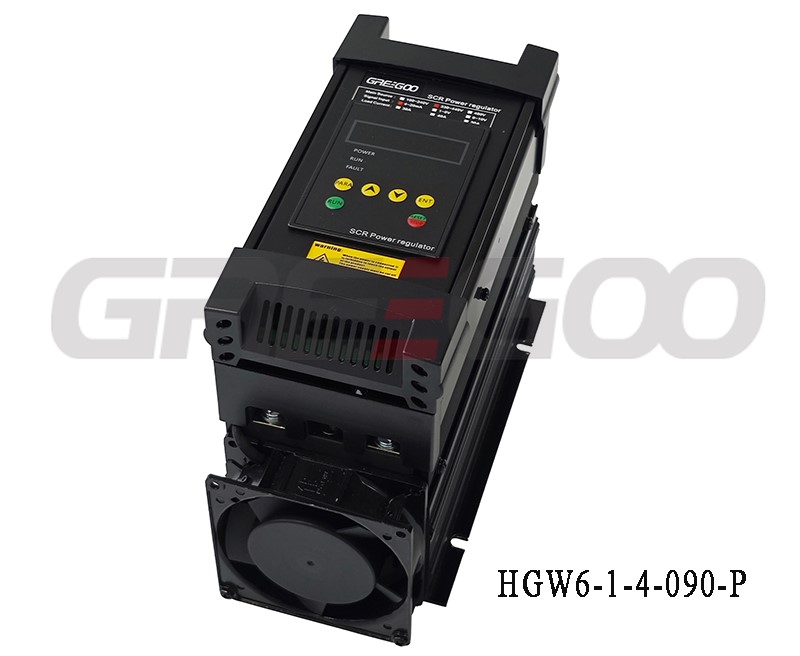

HGW6-1-4-090-P	1Ph	330-440V	90	15.8	27.3	2.3	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-4-100-P	1Ph	330-440V	100	17.6	30.4	2.3	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-4-050-C	1Ph	330-440V	50	8.8	15.2	2.3	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-060-C	1Ph	330-440V	60	10.5	18.2	2.3	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-075-C	1Ph	330-440V	75	13.2	22.8	2.3	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-080-C	1Ph	330-440V	80	14	24.3	2.3	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-090-C	1Ph	330-440V	90	15.8	27.3	2.3	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-100-C	1Ph	330-440V	100	17.6	30.4	2.3	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-050-CV	1Ph	330-440V	50	8.8	15.2	2.3	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-060-CV	1Ph	330-440V	60	10.5	18.2	2.3	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-075-CV	1Ph	330-440V	75	13.2	22.8	2.3	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-080-CV	1Ph	330-440V	80	14	24.3	2.3	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-090-CV	1Ph	330-440V	90	15.8	27.3	2.3	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-100-CV	1Ph	330-440V	100	17.6	30.4	2.3	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-050-Z	1Ph	330-440V	50	8.8	15.2	2.3	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-4-060-Z	1Ph	330-440V	60	10.5	18.2	2.3	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-4-075-Z	1Ph	330-440V	75	13.2	22.8	2.3	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-4-080-Z	1Ph	330-440V	80	14	24.3	2.3	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-4-090-Z	1Ph	330-440V	90	15.8	27.3	2.3	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-4-100-Z	1Ph	330-440V	100	17.6	30.4	2.3	Zero crossing cycle power regulating	4-20mA/0-5V

HGW6-1-2-050-P	1Ph	110-220V	50	8.8	15.2	2.3	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-060-P	1Ph	110-220V	60	10.5	18.2	2.3	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-075-P	1Ph	110-220V	75	13.2	22.8	2.3	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-080-P	1Ph	110-220V	80	14	24.3	2.3	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-090-P	1Ph	110-220V	90	15.8	27.3	2.3	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-100-P	1Ph	110-220V	100	17.6	30.4	2.3	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-050-C	1Ph	110-220V	50	8.8	15.2	2.3	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-060-C	1Ph	110-220V	60	10.5	18.2	2.3	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-075-C	1Ph	110-220V	75	13.2	22.8	2.3	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-080-C	1Ph	110-220V	80	14	24.3	2.3	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-090-C	1Ph	110-220V	90	15.8	27.3	2.3	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-100-C	1Ph	110-220V	100	17.6	30.4	2.3	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-050-CV	1Ph	110-220V	50	8.8	15.2	2.3	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-060-CV	1Ph	110-220V	60	10.5	18.2	2.3	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-075-CV	1Ph	110-220V	75	13.2	22.8	2.3	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-080-CV	1Ph	110-220V	80	14	24.3	2.3	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-090-CV	1Ph	110-220V	90	15.8	27.3	2.3	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-100-CV	1Ph	110-220V	100	17.6	30.4	2.3	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-050-Z	1Ph	110-220V	50	8.8	15.2	2.3	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-2-060-Z	1Ph	110-220V	60	10.5	18.2	2.3	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-2-075-Z	1Ph	110-220V	75	13.2	22.8	2.3	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-2-080-Z	1Ph	110-220V	80	14	24.3	2.3	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-2-090-Z	1Ph	110-220V	90	15.8	27.3	2.3	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-2-100-Z	1Ph	110-220V	100	17.6	30.4	2.3	Zero crossing cycle power regulating	4-20mA/0-5V
